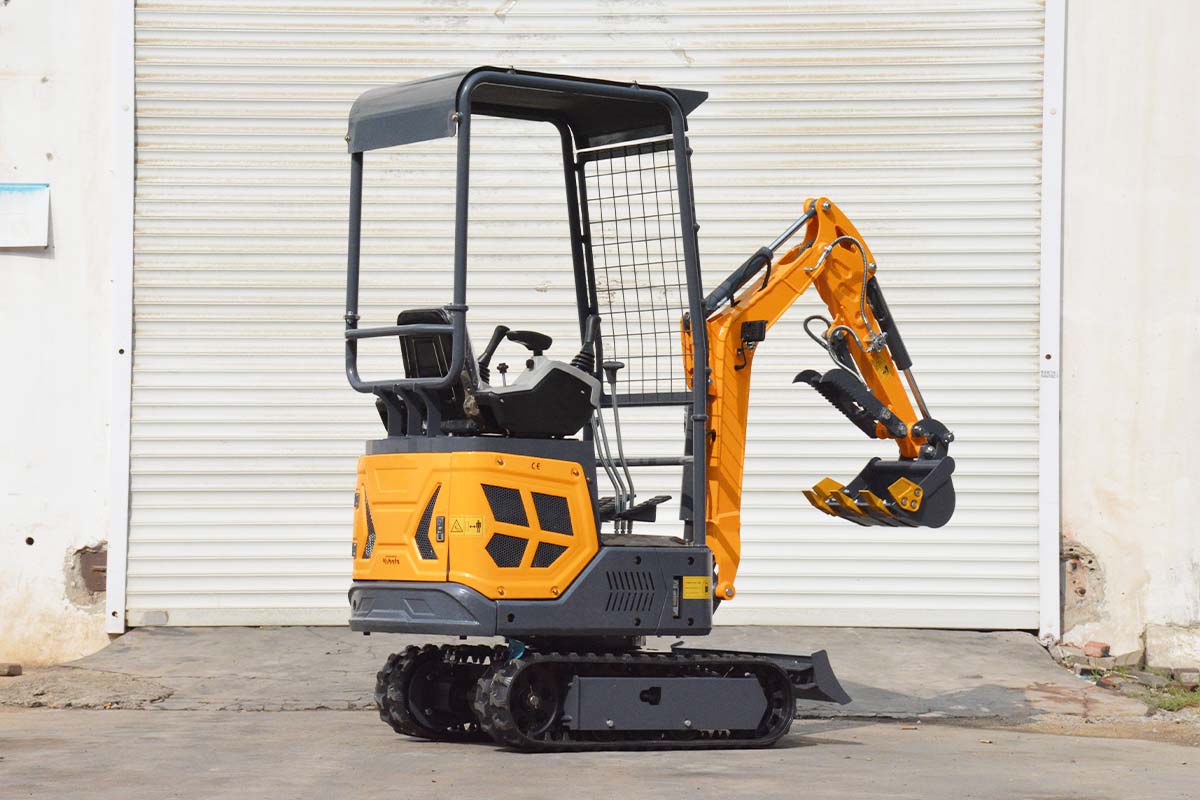

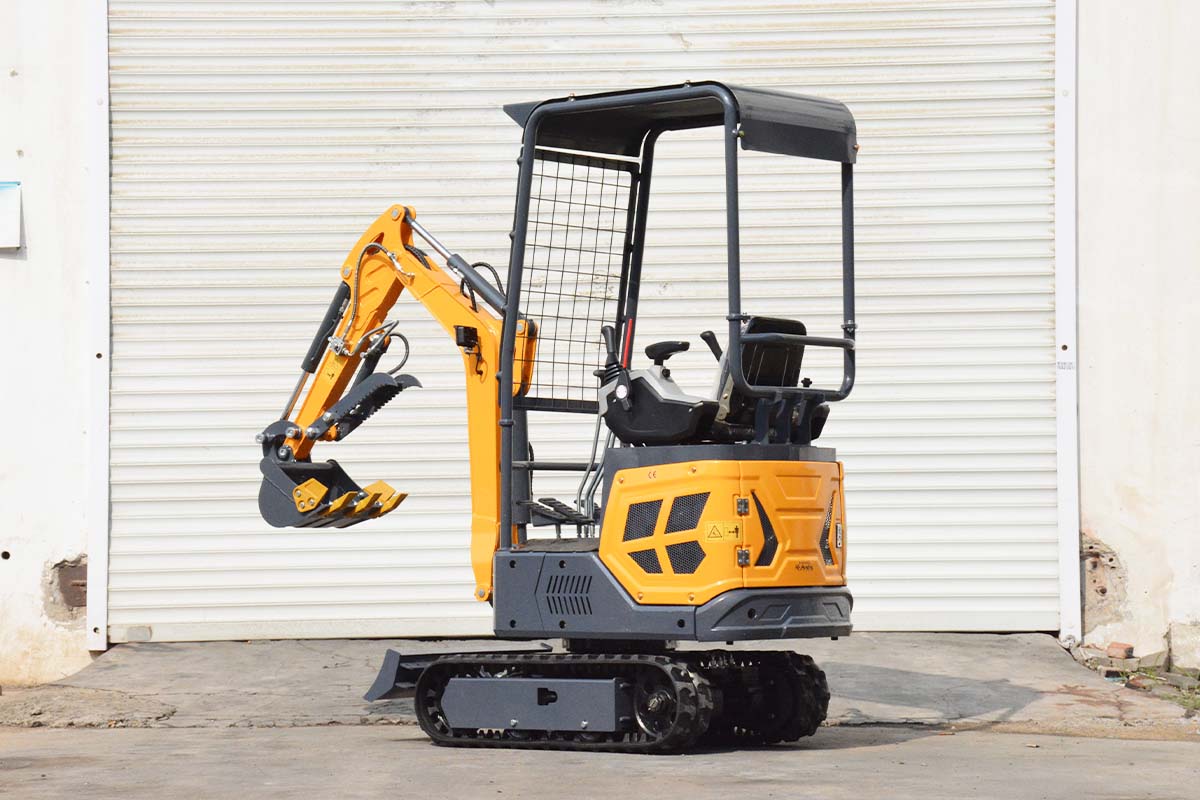

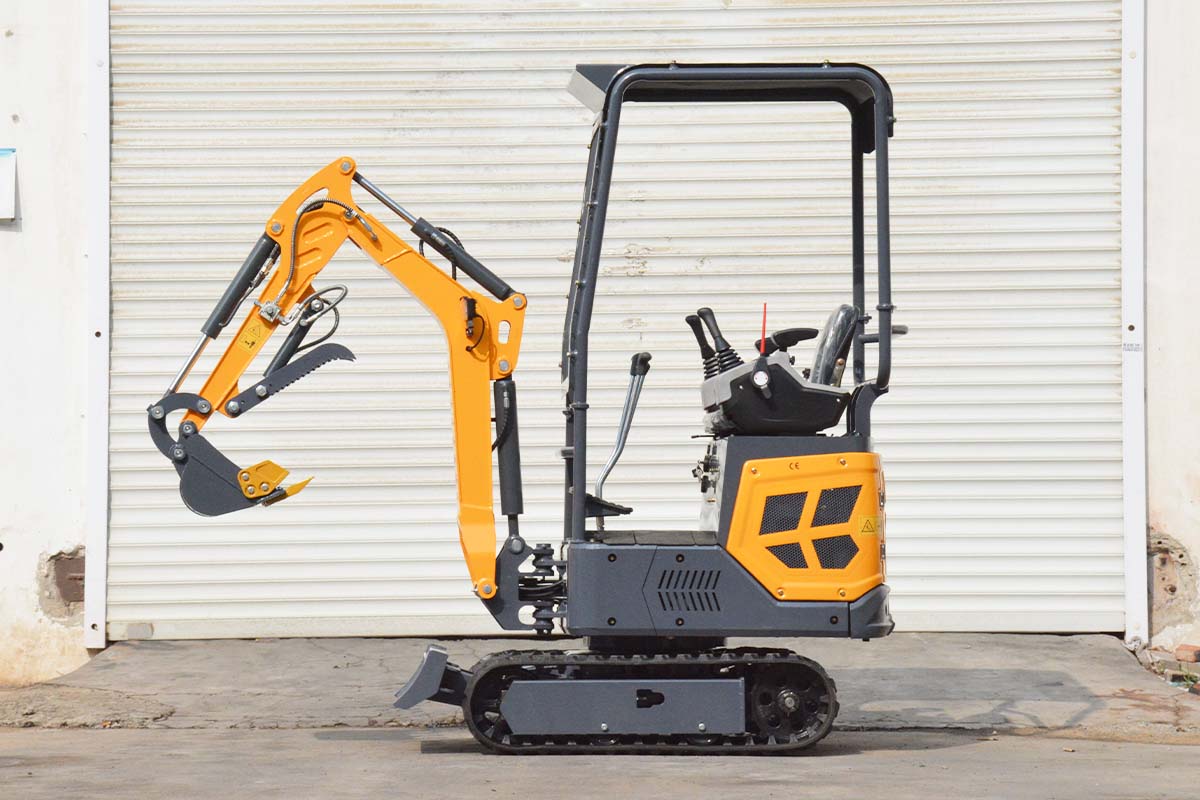

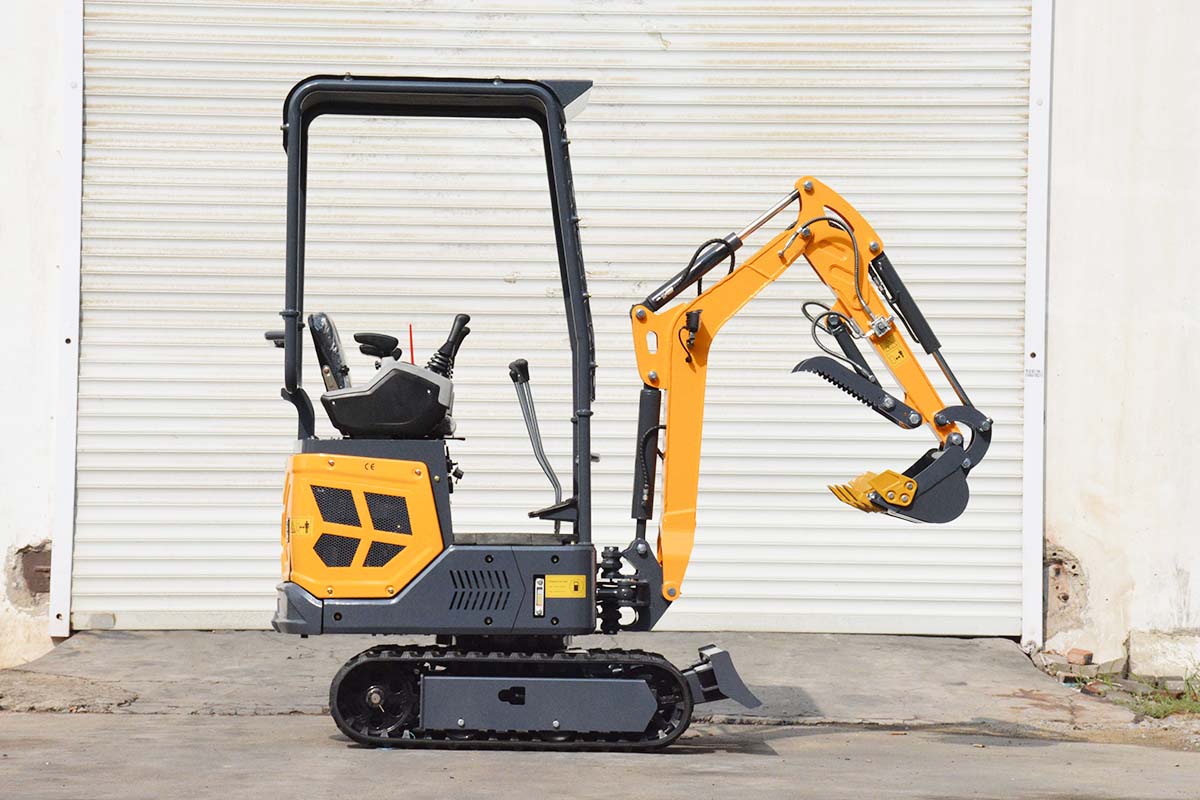

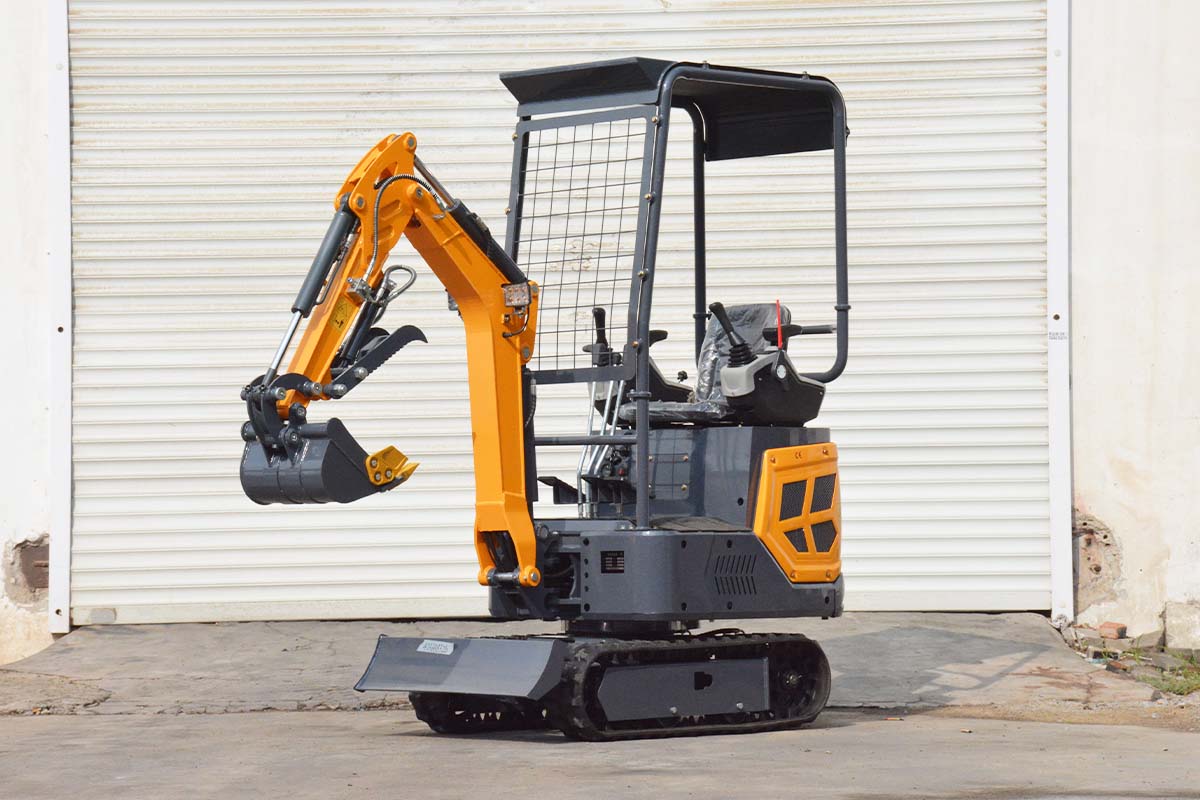

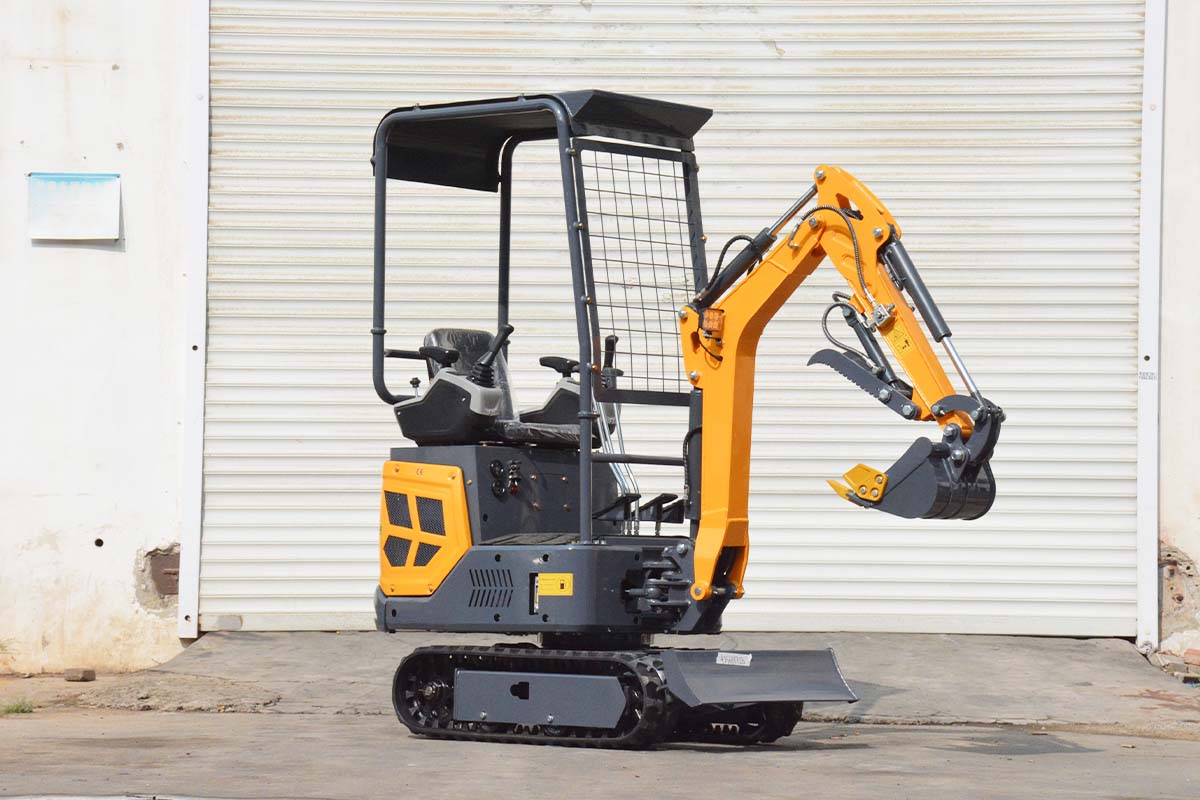

15 Mini Excavator

Maximum flow rate : 27L/min

Travel speed: 2.2-4.3KM/h

Hydraulic tank capacity: 10L

Product Introduce

Basic parameters of the whole machine	Total weight	1500 KG
	Length	2600(mm)
	Total height	2250(mm)
	Width	950(mm)
Working Range	Max.Digging Height	3060(mm)
	Max.Dumping Height	2050(mm)
	Max.Digging Depth	1750(mm)
	Max.Digging radius	3140(mm)
	Minimum radius of gyration	850(mm)
	Maximum lifting height of earth shovel	210(mm)
	The maximum digging depth of dozer	250(mm)
	Min Tail swing radius	850(mm)
Dynamical system	Model	KOOP/ Briggs & Stratton/Kubota
Dynamical system	power	12Hp/13.5Hp/11.2Hp
Hydraulic System	Operating Pressure	22mpa
	Maximum flow rate	27L/min
	Shape	Hydraulic pilot operation
Performance Parameter	Bucket Capacity	0.03m³
	Climbing ability	45°
	Travel speed	2.2-4.3KM/h
	Unit swing speed	8-10r/min
	Hydraulic tank capacity	10L

After-sale Service

Comprehensive Quality Guarantee:
We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
24/7 Customer Support:
Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
Regular Follow-Up and Maintenance Advice:
We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
End-to-End Logistics Support:
We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
