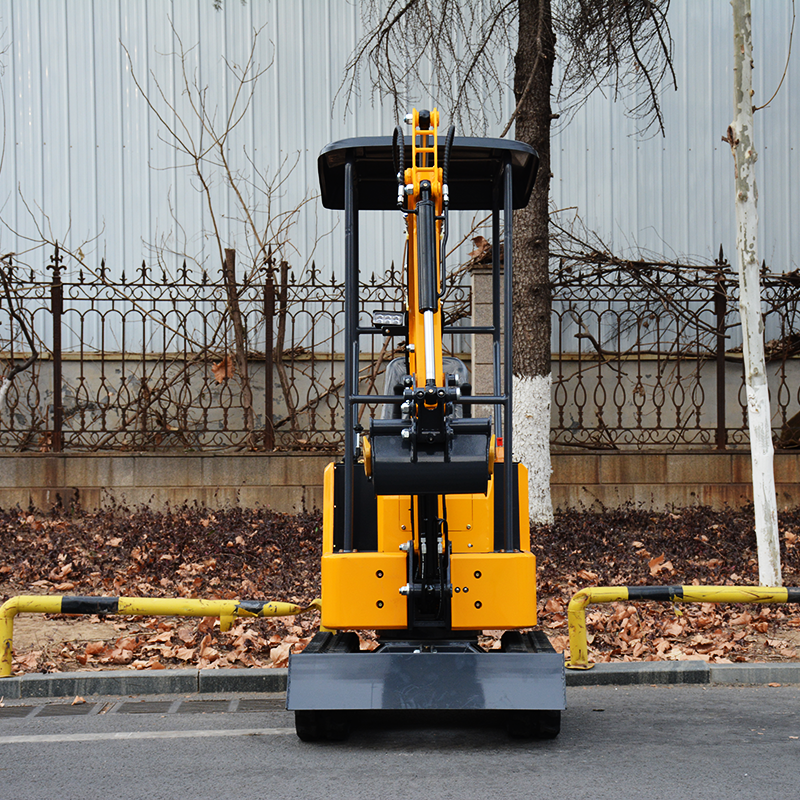

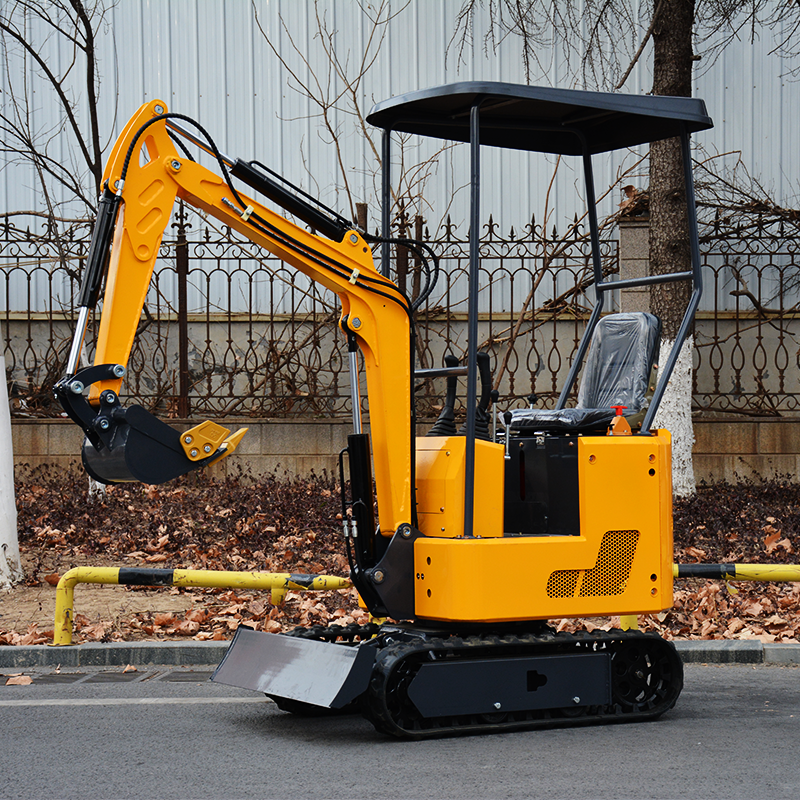

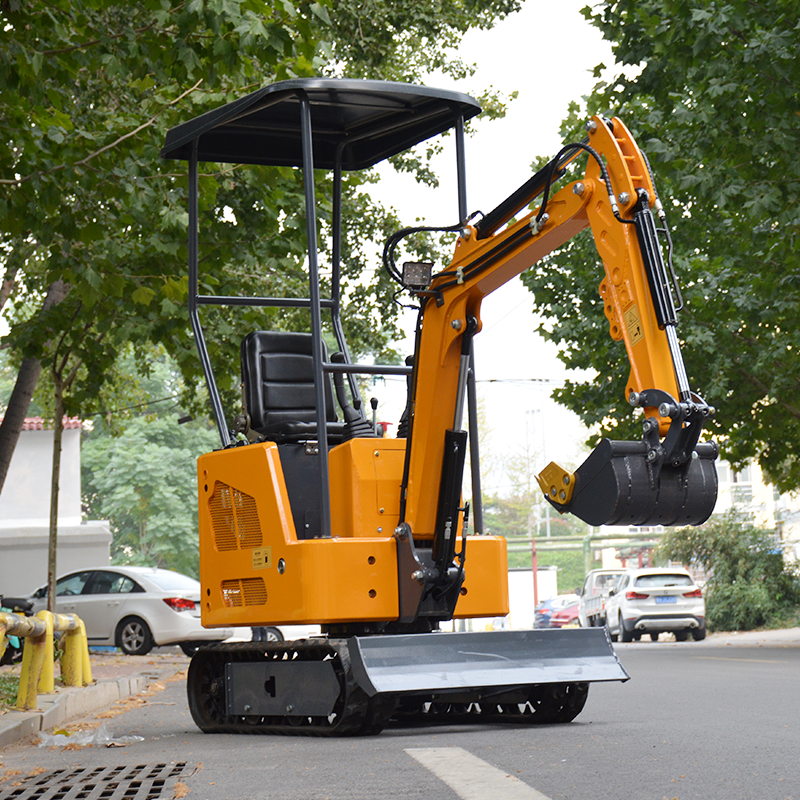

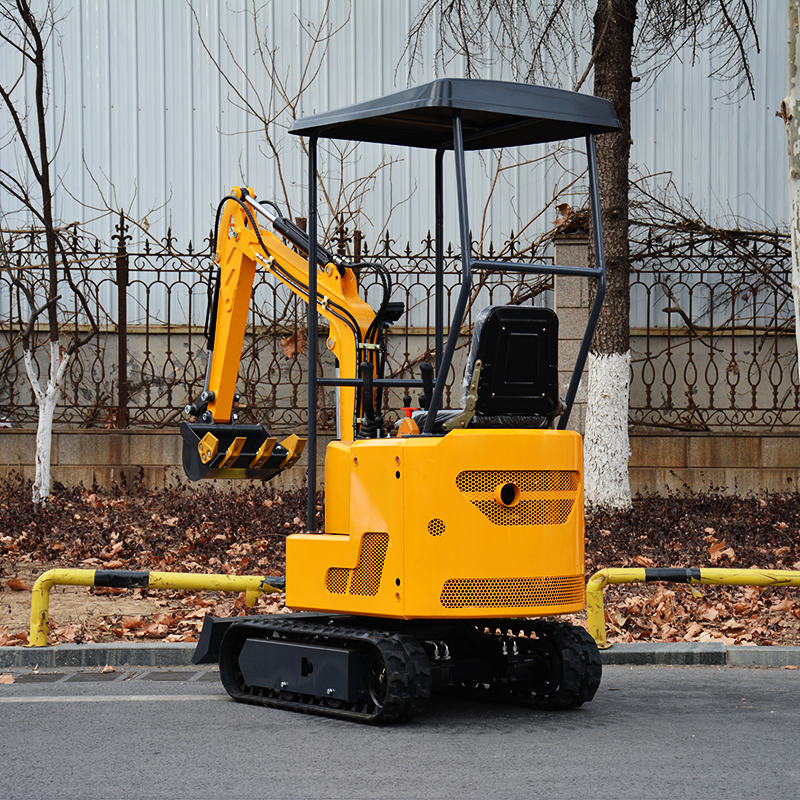

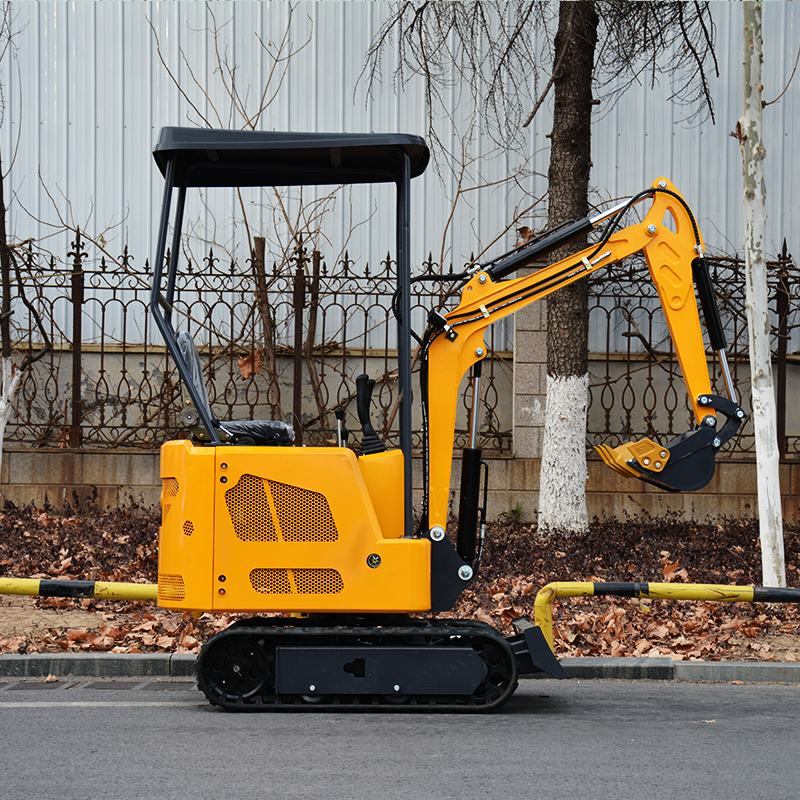

12 Mini Excavator

Maximum flow rate : 25L/min

Travel speed: 2.2-4.3KM/h

Hydraulic tank capacity: 10L

Product Introduce

Basic parameters of the whole machine	Operation weight	1200 KG
	Length	2500(mm)
	Total height	2200(mm)
	Width	940(mm)
Working Range	Max.Digging Height	2850(mm)
	Max.Dumping Height	1950(mm)
	Max.Digging Depth	1620(mm)
	Max.Digging radius	2900(mm)
	Minimum radius of gyration	800(mm)
	Maximum lifting height of earth shovel	160(mm)
	The maximum digging depth of dozer	210(mm)
Dynamical system	Model	YouPu/KOOP/ Briggs & Stratton
Dynamical system	power	12Hp/12Hp/13.5Hp
Hydraulic System	Operating Pressure	22mpa
	Maximum flow rate	25L/min
	Shape	Load Sensing System
Performance Parameter	Bucket Capacity	0.024m³
	Climbing ability	45°
	Travel speed	2.2-4.3KM/h
	Unit swing speed	8-10r/min
	Hydraulic tank capacity	10L

After-sale Service

Comprehensive Quality Guarantee:
We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
24/7 Customer Support:
Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
Regular Follow-Up and Maintenance Advice:
We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
End-to-End Logistics Support:
We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
