Max Lifting Capacity: 16000kg
Max Lifting Height: 33-39 m
Engine Power: 53 kW / 88kW (model 4105/4108)

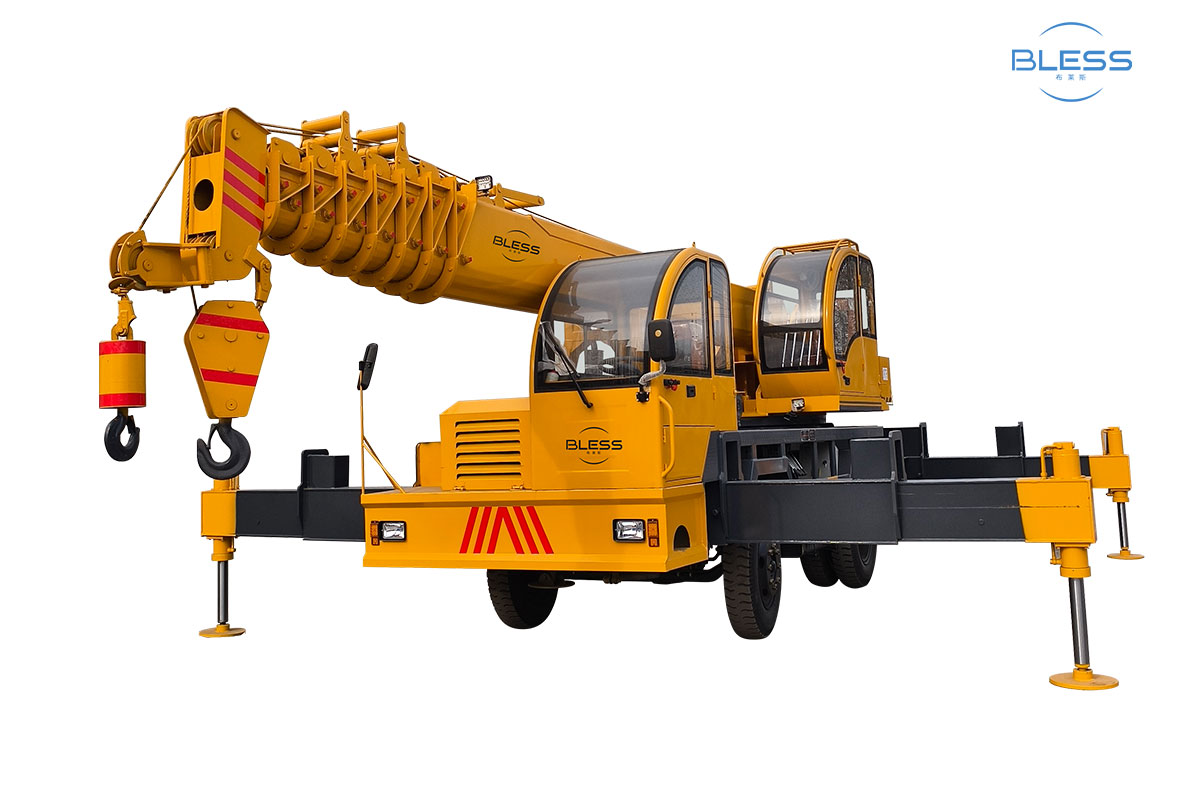

The Self-Made Crane 16T (RICHYD-16T) is a heavy-duty hydraulic crane designed for large-scale industrial lifting tasks. With a maximum lifting capacity of 16 tons and a lifting height of up to 39 meters, this crane offers unparalleled power, precision, and versatility. Its modular design allows for custom configurations, making it adaptable to various project requirements.
The RICHYD-16T crane is ideal for heavy lifting in industries such as construction, municipal engineering, bridge installation, and large-scale logistics. Its customizable options and high-performance capabilities make it a reliable choice for demanding operations in both urban and remote settings.

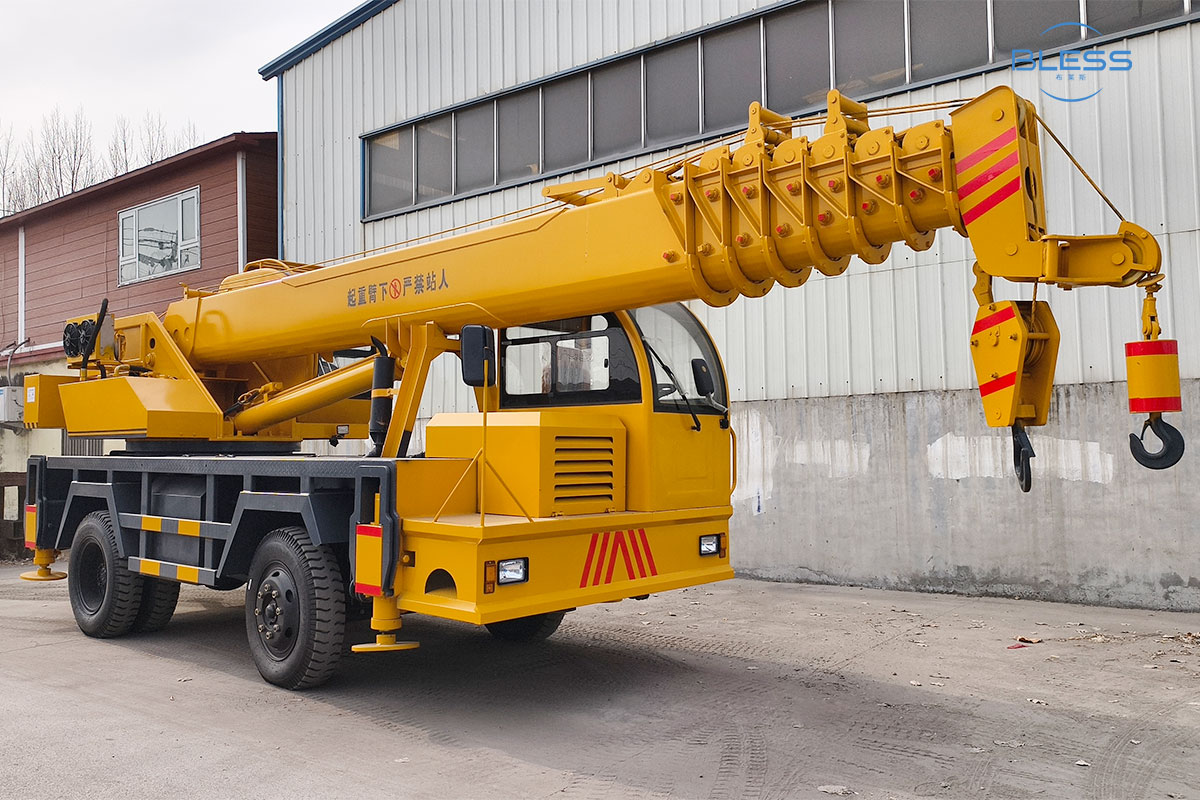

Exceptional Lifting Power: Capable of lifting up to 16,000kg, with a telescopic boom extending up to 39 meters, suitable for the most challenging tasks.
Customizable Boom Options: Multiple configurations available, including 6m/7 sections, 6m/8 sections, 7m/6 sections, and 7m/7 sections, to meet diverse lifting needs.
Robust Hydraulic System: Features a planetary steering reducer for smooth and reliable operations, with high precision.
Flexible Transmission System: Equipped with a 145 high-low speed gearbox, providing precise control over lifting and travel functions.

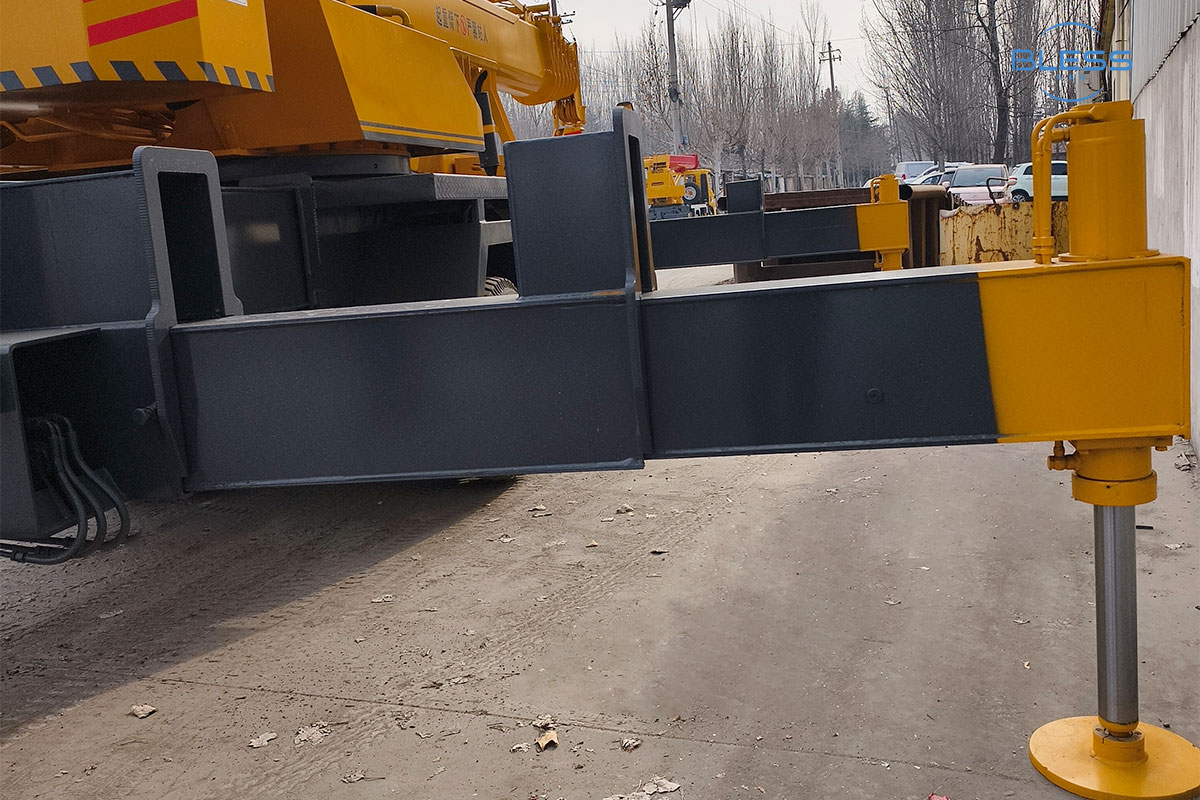

Enhanced Stability: Optional configurations include four or six dual-section outriggers and one rear outrigger, ensuring stability on various terrains.
Powerful Engine Options: Choice of 4105 Turbocharged (53 kW) or 4108 Turbocharged (88 kW) engines, delivering consistent performance.

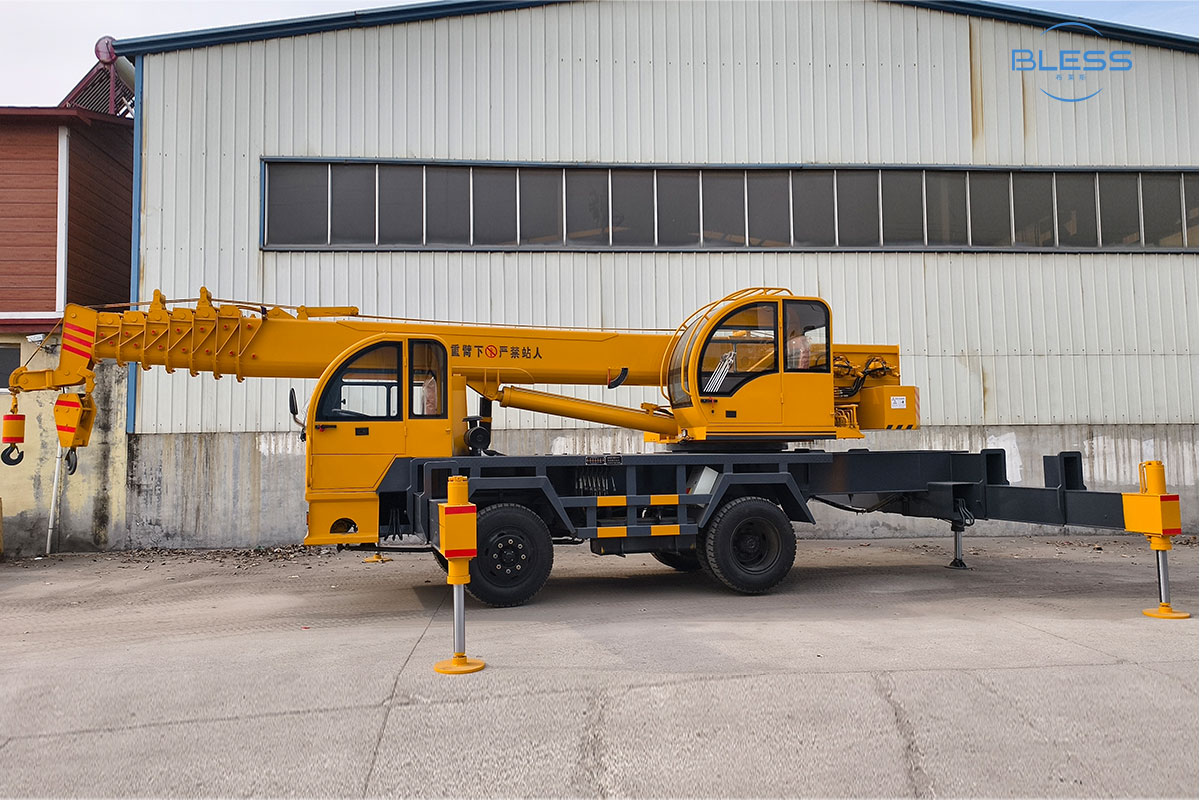

Compact Yet Sturdy Design: With dimensions of 9.5m * 2.3m * 3.1m and a wheelbase of 2.6m / 3m, it offers excellent maneuverability.
Safety and Reliability: Comes with an air-brake system and reinforced main frame for safe and reliable operation.
High lifting capacity and extensive boom configurations for diverse projects.
Advanced hydraulic and transmission systems ensure precision and efficiency.
Customizable options for tires, engines, outriggers, and booms to meet specific requirements.
Built for demanding tasks in industrial and construction environments.
The RICHQY-16T Crane is a powerhouse of performance and versatility, making it the perfect partner for large-scale projects requiring heavy-duty lifting solutions.
| Self-Made Crane 16T | |||
|---|---|---|---|
| Model | RICHYD-16T | Main Hook Winch (Optional) | 12T/16T Axial Winch |
| Max Lifting Capacity | 16000kg | Auxiliary Hook Winch | 12T Winch |
| Max Lifting Height | 33-39 meters | Steering Reducer | Planetary |
| Boom | 6m * 7 sections | Slewing Bearing | 1.4m / 1.5m |
| 6m * 8 sections | |||
| 7m * 6 sections | |||
| 7m * 7 sections | |||
| Main Frame Extension | 1.5 meters | Transmission | 145 High-Low Speed Gearbox |
| Brake Type | Air-Brake | Engine Pump | CBF5040 |
| Dimensions (varies by configuration) | 9.5m * 2.3m * 3.1m | Main Frame Size | 500 * 200 mm |
| Engine Model (Optional) | 4105 Turbocharged / 4108 Turbocharged | Steering Type | Hydraulic |
| Engine Power (Optional) | 53 kW / 88 kW | Outriggers (Optional) | Four/Six dual-section outriggers, one rear outrigger |
| Tire Model (Optional) | 825-20 Pneumatic Tire / 900-20 Pneumatic Tire | Travel Speed | 65 km/h |
| Wheelbase | 2.6m / 3m | Net Weight | 16000kg-17000kg |
