Max Lifting Capacity: 12000kg
Max Lifting Height: 33-38 m
Engine Power: 55 kW (model 4105)
The Self-Made Crane 12T (RICHYD-12T) is a high-performance hydraulic crane designed for heavy-duty lifting operations. With an impressive maximum lifting capacity of 12 tons and a lifting height of up to 38 meters, this crane is engineered to deliver efficiency, precision, and durability for large-scale industrial projects.
The TRICHYD_12T crane is perfect for demanding operations such as construction sites, municipal projects, bridge installations, and heavy industrial lifting. Its advanced design and robust capabilities make it suitable for both urban and remote environments, offering unmatched versatility and reliability.
Exceptional Lifting Power: Handles up to 12,000kg with a telescopic boom extending up to 38 meters, ideal for large-scale tasks.
Hydraulic Precision: Features a planetary steering reducer for smooth and controlled operations under challenging conditions.
Durable and Flexible Transmission: Equipped with 140/145 high-low speed gearboxes, providing precise lifting and travel control.

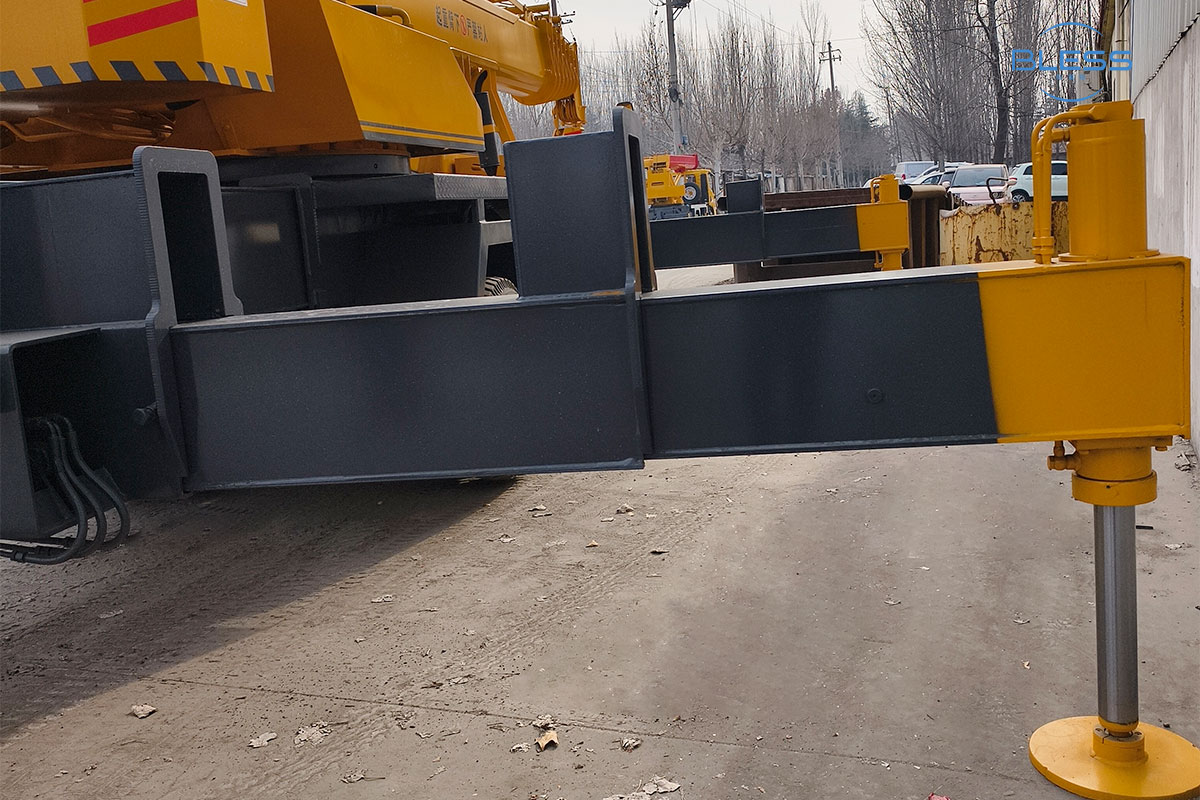

Stability and Support: Includes four dual-section outriggers and one rear outrigger for enhanced stability on uneven terrain.
High-Powered Engine: Powered by a 55 kW (model 4105) engine, delivering consistent and efficient performance.
Compact and Functional Design: With dimensions of 9.5m * 2.3m * 3.1m, it ensures excellent maneuverability and adaptability.
Enhanced Safety Features: Comes with an air-brake system, reinforced main frame, and high-quality materials to ensure secure operations.
Capable of handling large industrial lifting tasks with ease.
Advanced hydraulic technology ensures precision and safety.
Compact yet powerful design, suitable for a wide range of applications.
The RICHYD-12T Crane provides reliable and high-performance solutions, making it the perfect partner for demanding lifting operations in various industries.
| Self-Made Crane 12T | |||
|---|---|---|---|
| Model | RICHYD-12T | Main Hook Winch | 12T Axial Winch |
| Max Lifting Capacity | 12000kg | Auxiliary Hook Winch | 6T Winch |
| Max Lifting Height | 33-38 meters | Steering Reducer | Planetary |
| Boom | 6m * 7 sections | Slewing Bearing | 1.3m / 1.4m |
| 6m * 8 sections | |||
| Main Frame Extension | 1.3m / 1.5m | Transmission | 140 High-Low Speed Gearbox / 145 High-Low Speed Gearbox |
| Brake Type | Air-Brake | Engine Pump | CBF50 |
| Dimensions (varies by configuration) | 9.5m * 2.3m * 3.1m | Main Frame Size | 400 * 200 mm |
| Engine Model | 4105 | Steering Type | Hydraulic |
| Engine Power | 55 kW | Outriggers | Four dual-section outriggers, one rear outrigger |
| Tire Model | 825-20 Pneumatic Tire / 900-20 Pneumatic Tire | Travel Speed | 60 km/h |
| Wheelbase | 2.6 meters | Net Weight | 13000kg-13500kg |
