Maximum working height：137.7m/19.7m/21.8m/26.8m
Maximum platform height：15.7m/17.7m/19.8m/24.8m
Standard load：230kg
| Product Parameters | ||||
| Model | QYQB-16D | QYQB-18D | QYQB-20D | QYQB-25C |
| Maximum working height | 17.7m | 19.7m | 21.8m | 26.8m |
| Maximum platform height | 15.7m | 17.7m | 19.8m | 24.8m |
| Standard load | 230kg | 230kg | 230kg | 230kg |
| Wheelbase | 2.28m | 2.54m | 2.65m | 3.05m |
| Platform size | 153*0.76*1.1m | 183*Q.76*1.1m | 183*0.76*1.1m | 183*Q.76*1.1m |
| Gradeability | 30% | 40% | 30% | 45% |
| Drive steering | 2WD*2WS | 4WD*2WS | 4WD*2WS | 4WD*2WS |
| Maximum working angle | 5° | 5° | 5° | 5° |
| Machine weight | <7200kg | <8500kg | ≤9400kg | ≤15500kg |

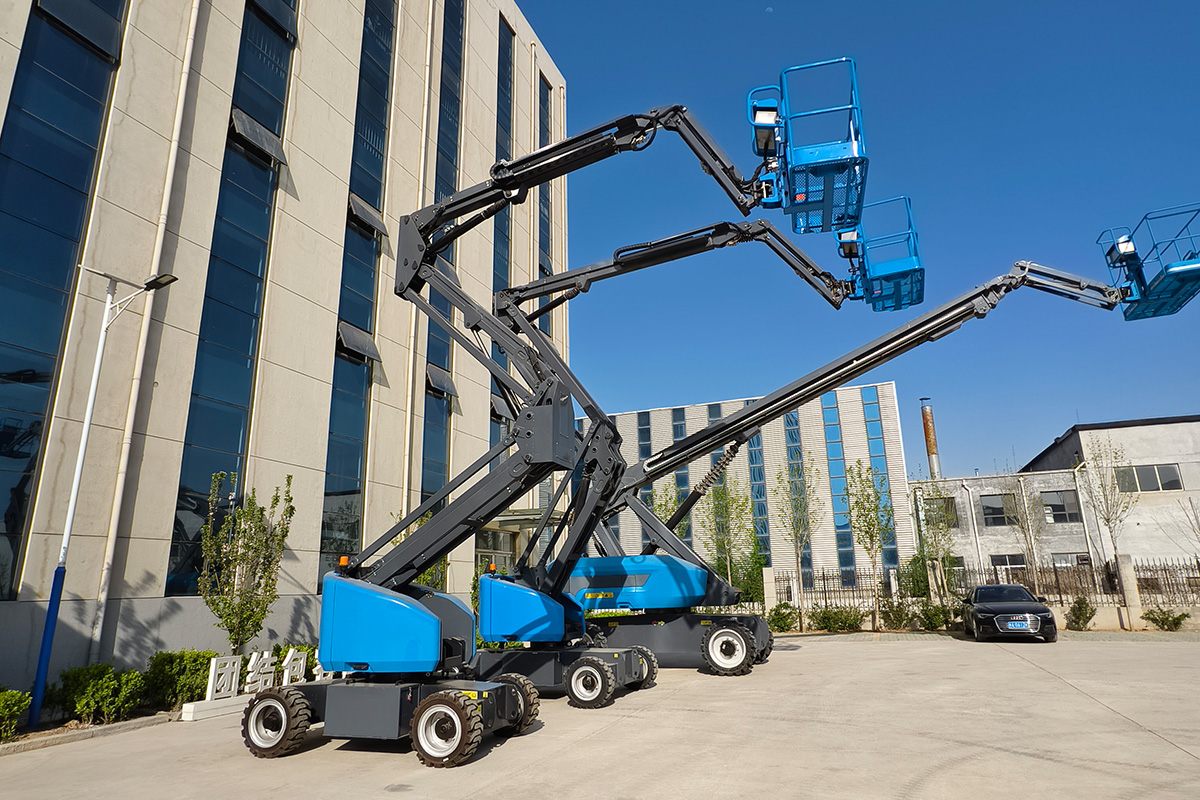

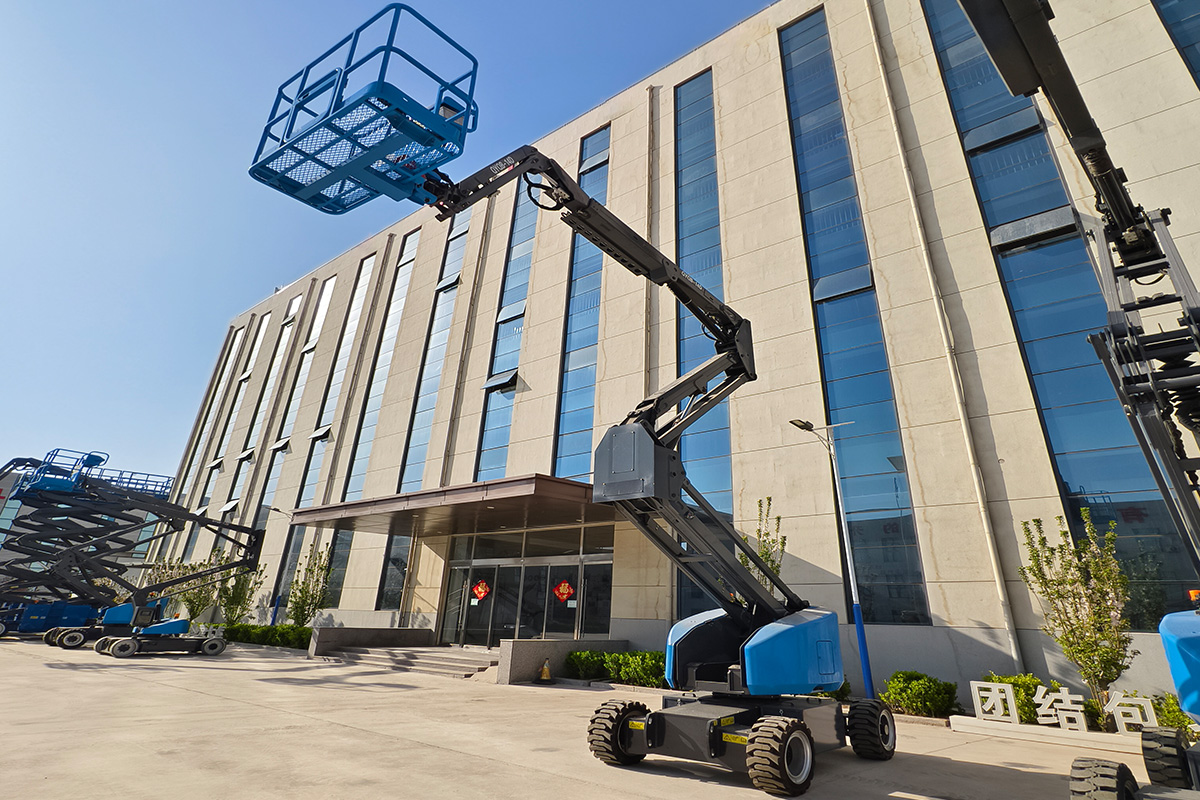

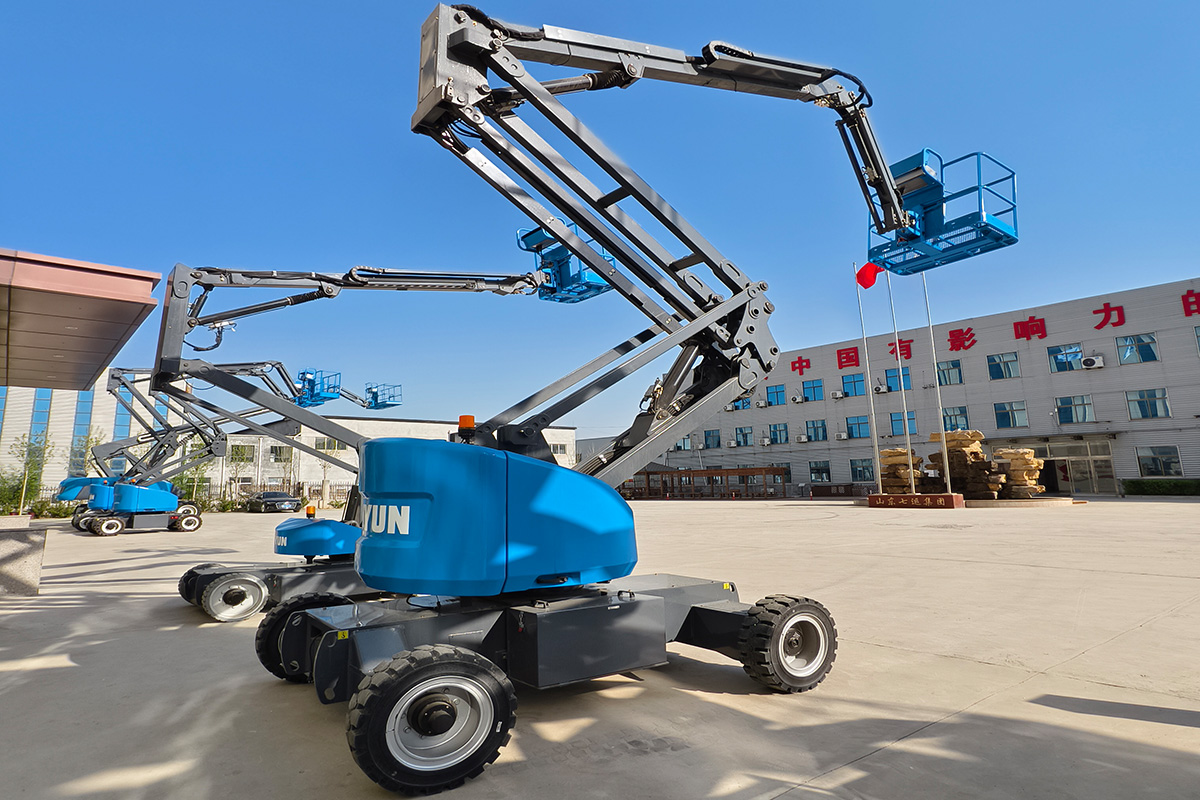

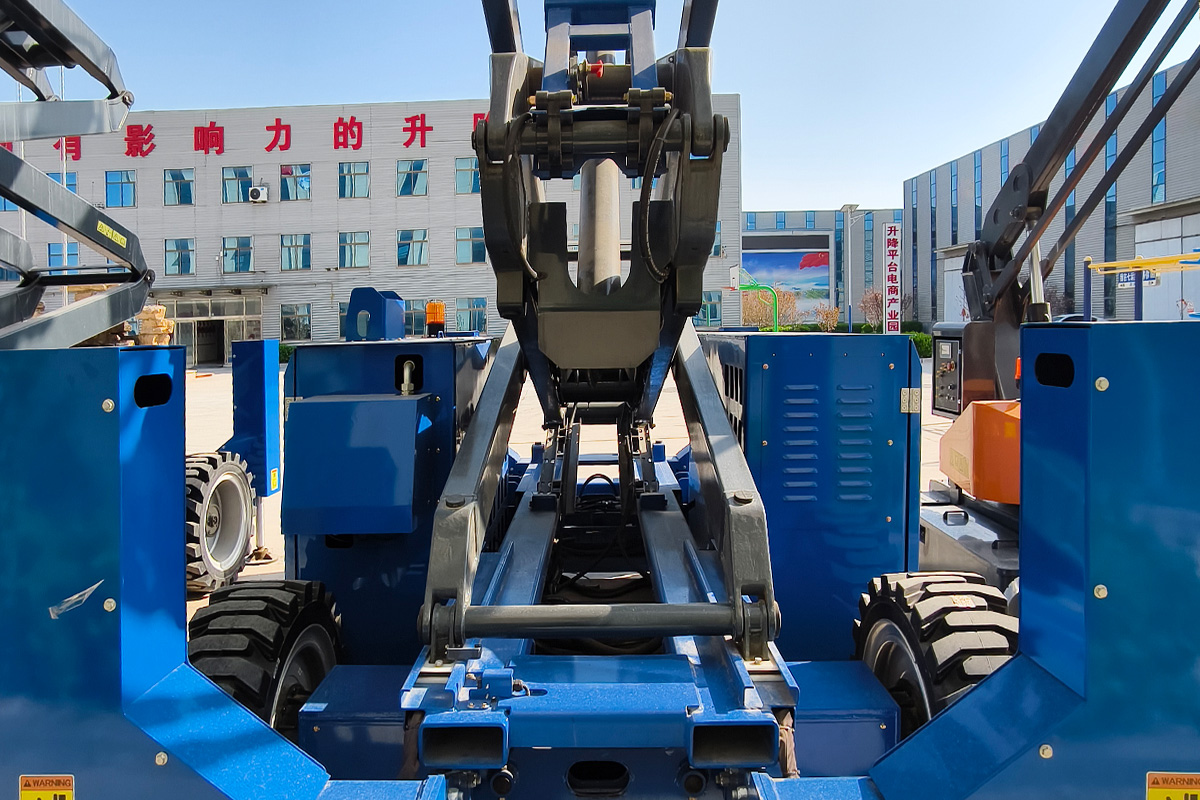

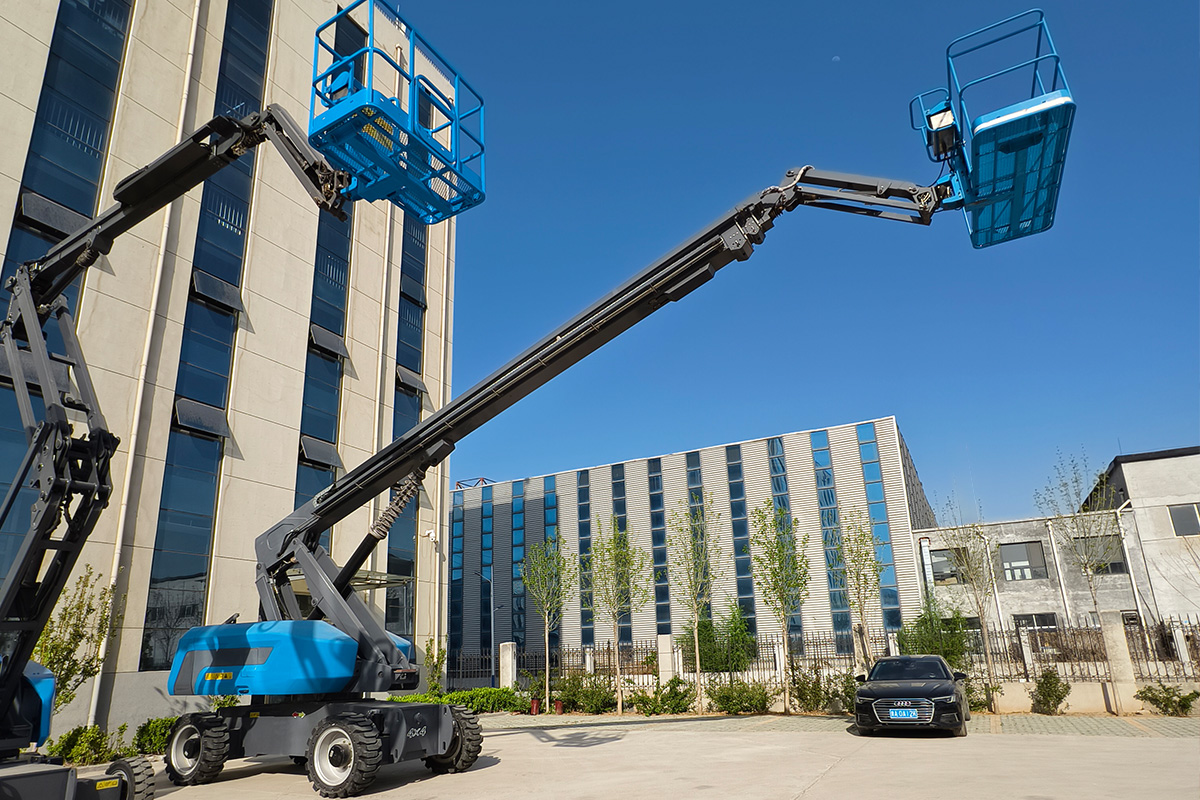

The Self-Propelled Articulating Boom Lift is a widely used equipment for aerial work, combining the articulated boom design and self-propelled function. It has flexibility, stability and good maneuverability, and is suitable for aerial work in complex environments, especially when obstacles need to be overcome.
1. It adopts intelligent visualization and a large screen with high brightness.
2. It provides multi-directional positioning functions of upward, downward and across.
3. It is simple to operate, has good stability and no impact.
4. The arm is flexible, more practical and in complex and narrow working spaces.
5. The platform is automatically hydraulically leveled, stable, and safe and reliable for operation.
Comprehensive Quality Guarantee:
24/7 Customer Support:
Regular Follow-Up and Maintenance Advice:
End-to-End Logistics Support:Please fill out the form below according to your needs, and our product specialist will contact you within one day.
