Maximum working height：14m/16m
Maximum platform height：12m/14m
Machine weight：3700kg/4000kg
| Product Parameters | ||
| Model | QYPT1214LD | QYP1416LDT |
| Maximum working height | 14m | 16m |
| Maximum platform height | 12m | 14m |
| Machine length | 2.731m | 3.034m |
| Machine width | 1.661m | 1.823m |
| Overall height (fence not folded) | 2.694m | 2.818m |
| Overall height (fence folded) | 2.164m | 2.288m |
| Working platform size | 2.271×1.11m | 2.643×1.115m |
| Safe working load | 320kg | 320kg |
| Battery | 8×12V/200Ah | 8×12V/100Ah |
| Charger | 48V/35A | 48V/35A |
| Machine weight | 3700kg | 4000kg |

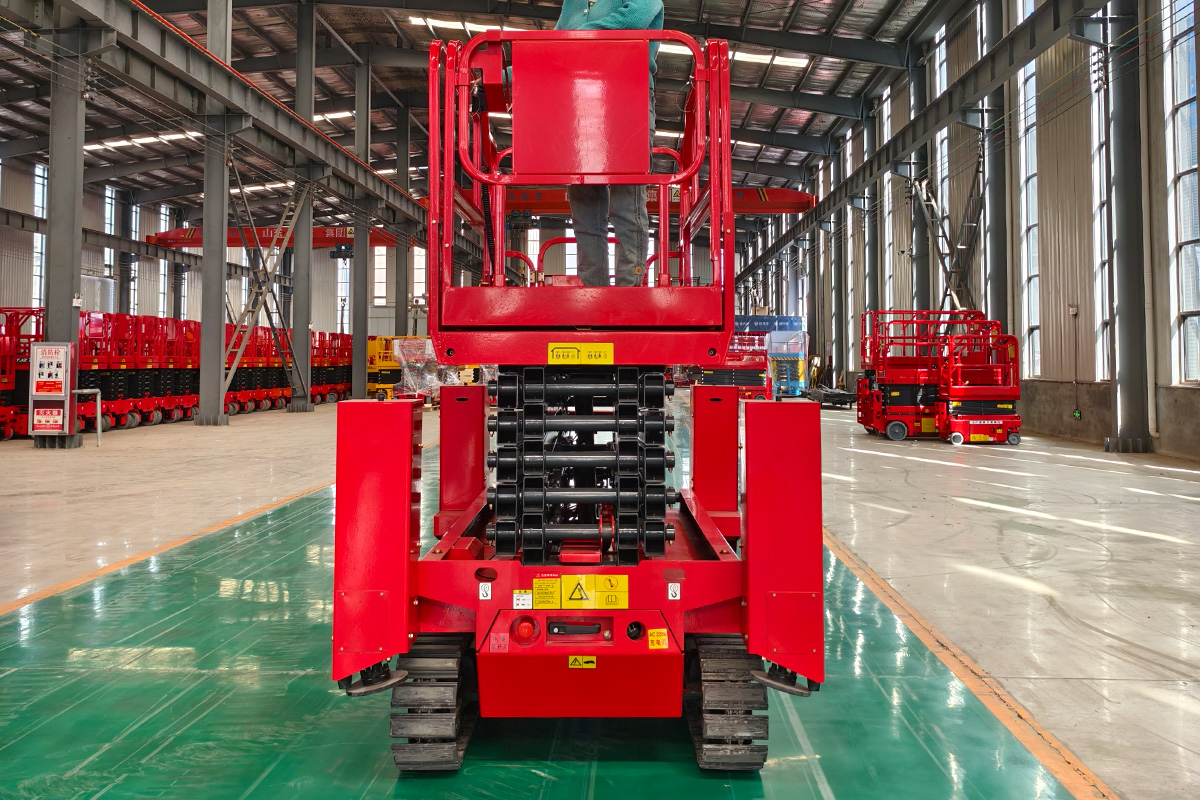

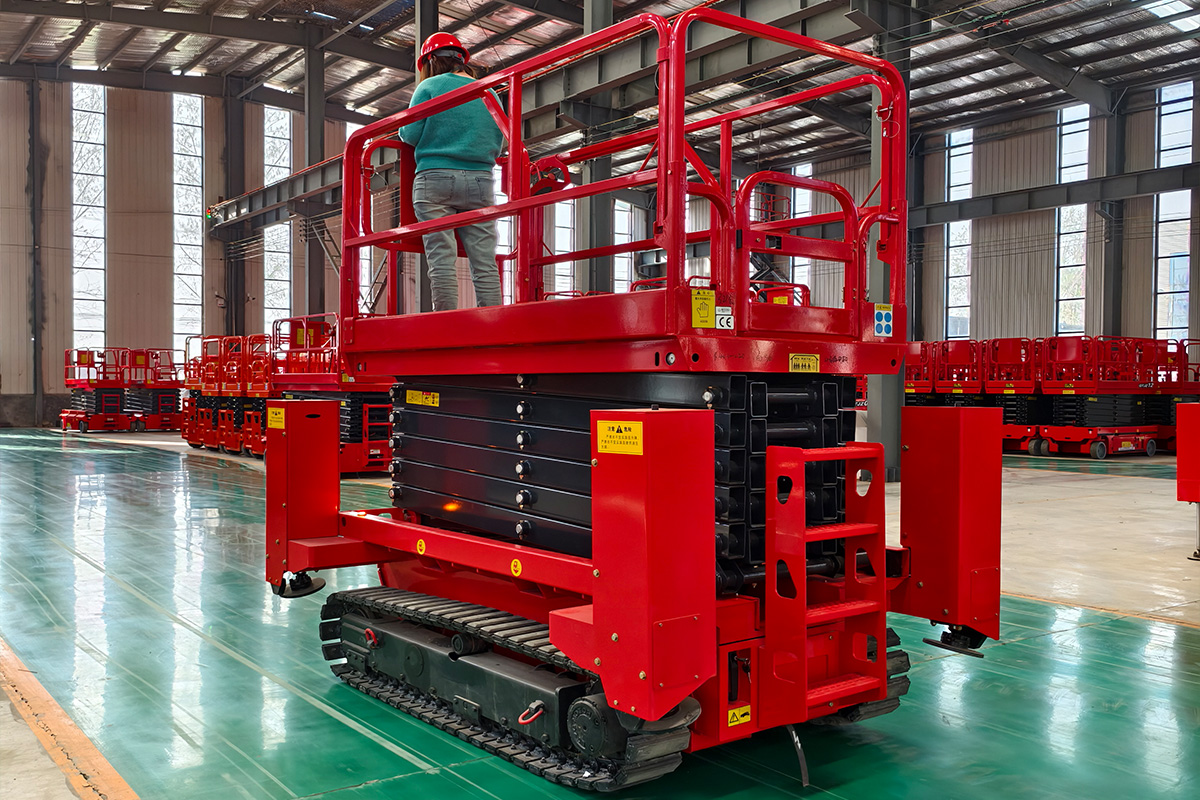

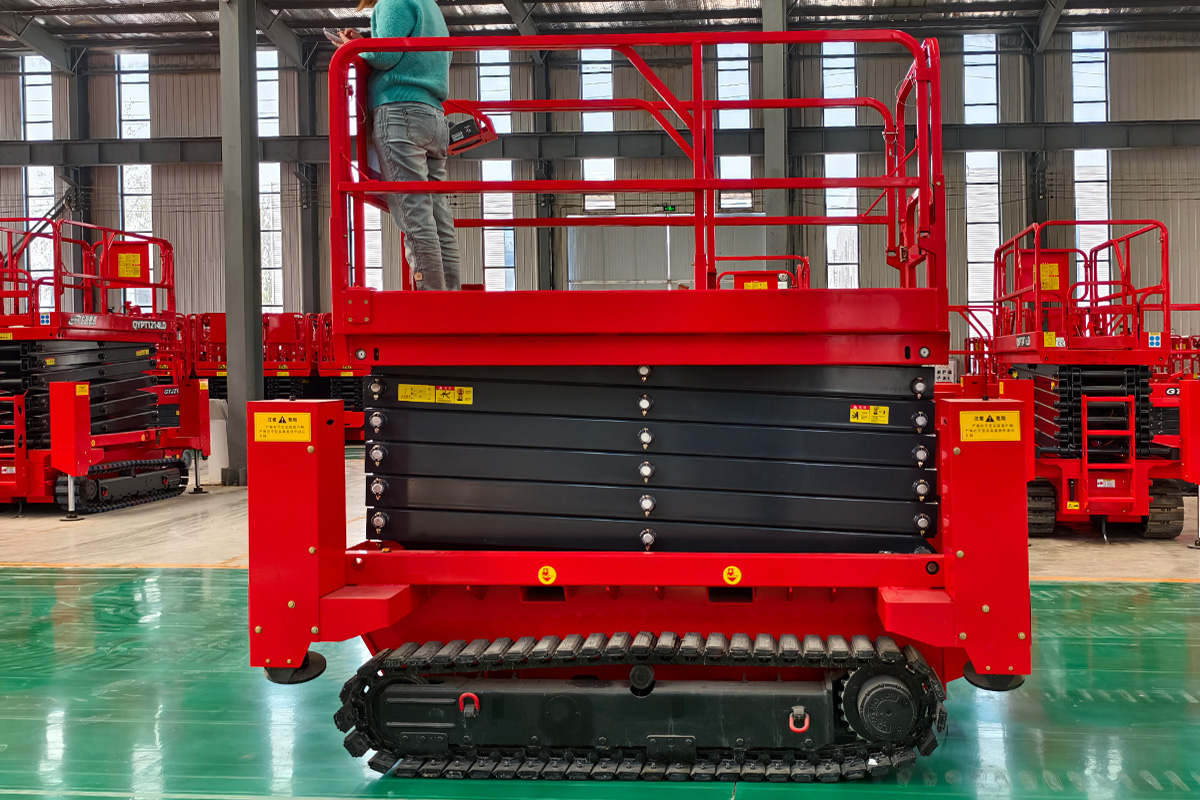

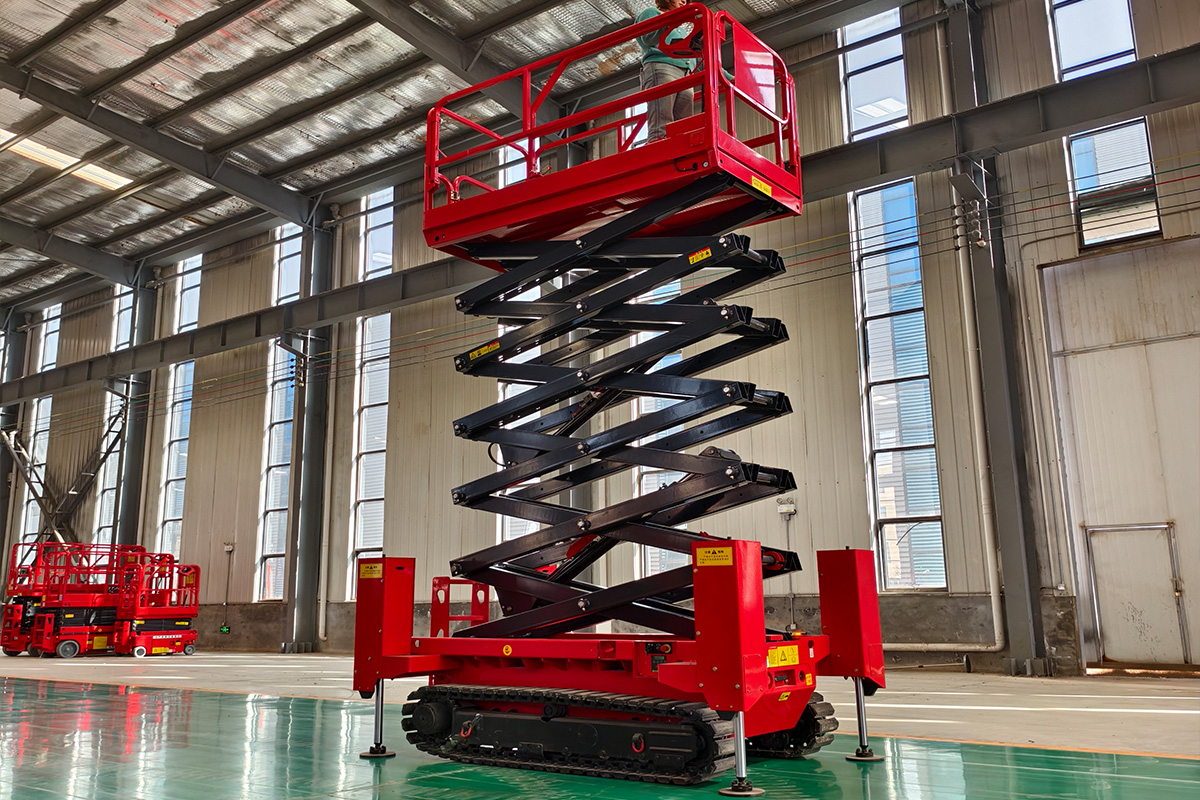

Hydraulic outrigger crawler aerial work platform is an aerial work platform with crawler chassis and hydraulic legs. It combines the off-road capability of crawlers and the stability of hydraulic legs, and can perform aerial work in complex terrain. It is particularly suitable for working environments with uneven ground, large slopes or narrow spaces in urban buildings.
1. The foot-operated extension platform can be quickly spread to the work point.

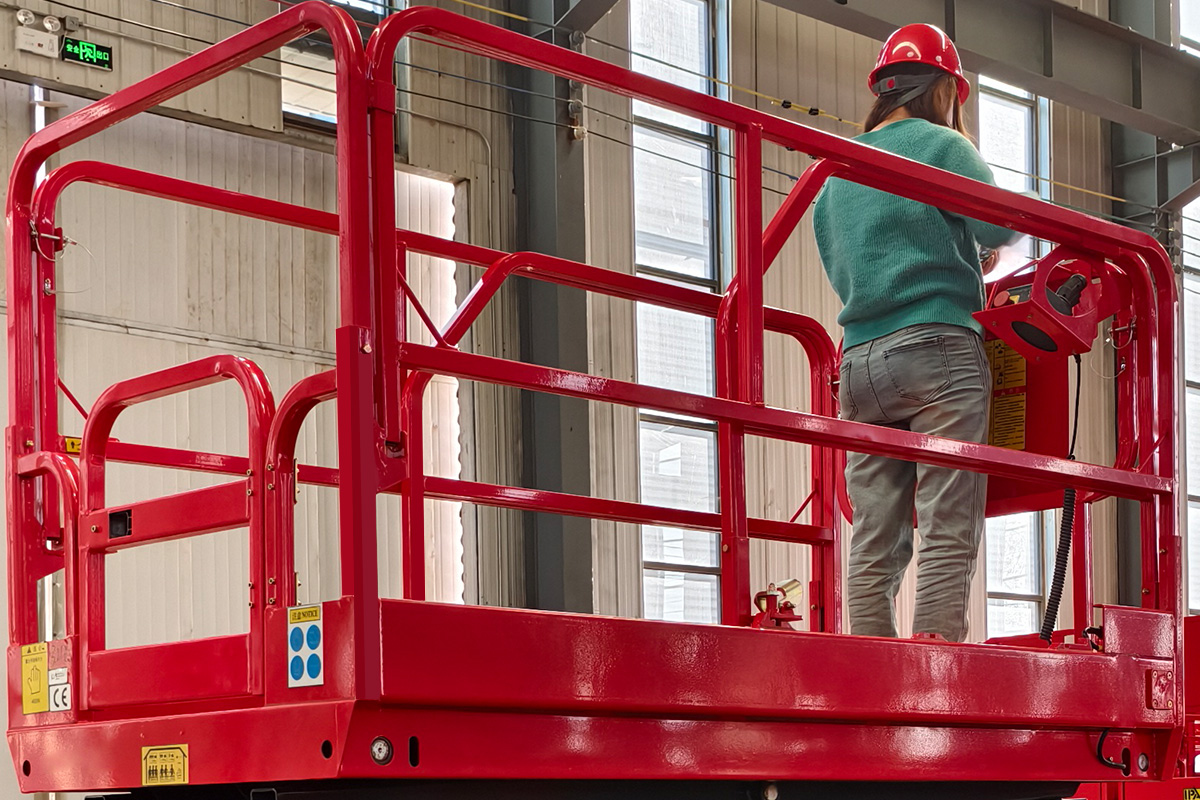

2. The foldable fence reduces the size of the whole machine.
3. It is convenient to work in a small space.
4. 30% climbing ability, can climb up the slope smoothly.
5. The pull-out chassis is easy to maintain.
6. The fault code is automatically displayed for easy maintenance.
7. It is suitable for special uneven ground.
