Maximum working height：16m/18m
Maximum platform height：14m/16m
Diesel engine power：12HP
| Product Parameters | ||
| Model | TGZ14 | TGZ16 |
| Maximum working height | 16m | 18m |
| Maximum platform height | 14m | 16m |
| Maximum load | 200kg | 200kg |
| Maximum working distance | 8.5m | 9.5m |

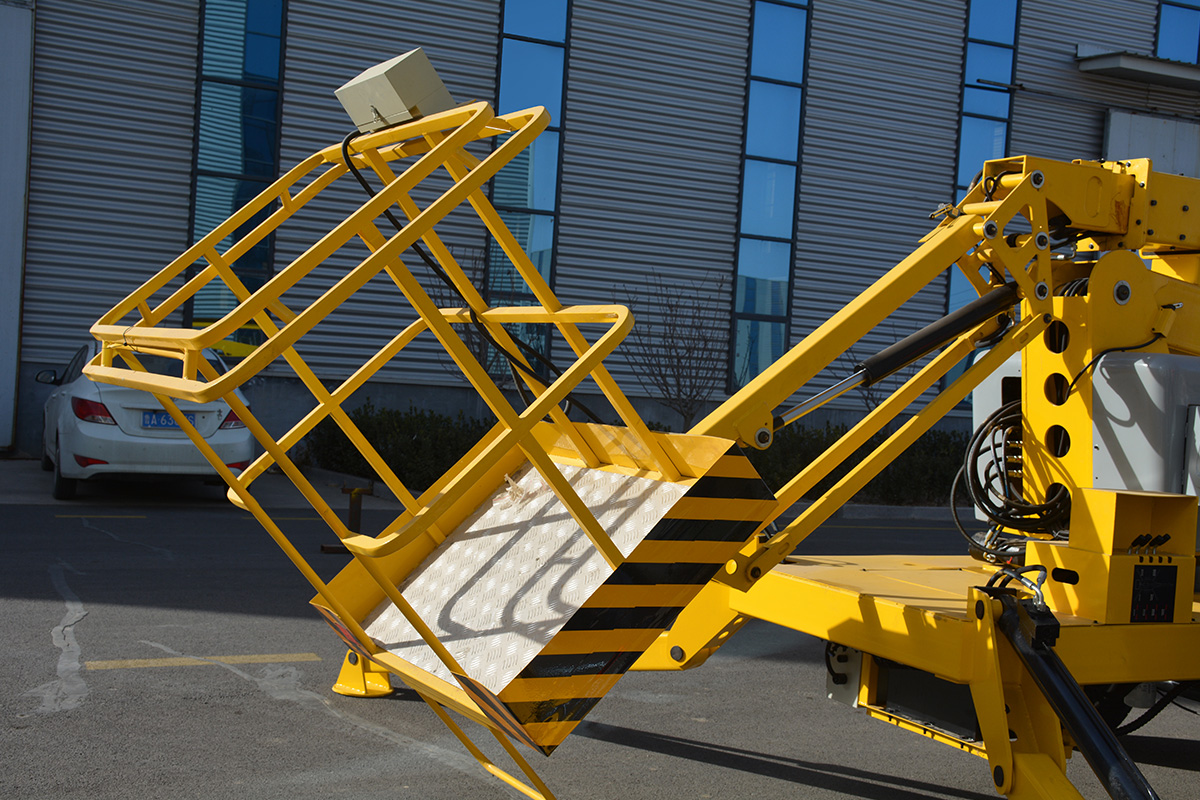

| Platform size (length x width x height) | 1.2×0.8×1.1m | 1.2×0.8×1.1m |
| Outrigger span (green direction x horizontal direction) | 3.97×4.18m | 4.2×4.3 m |
| Total weight | 2350kg | 2900kg |
| Diesel engine power | 12HP | |
| DC pumping station | 24V/4.5kw(Optional) | |
| Battery | 4×6V 180Ah(Optional) | |
| Comminicate | 380v/1.5kwor220v/2.2kw(Can be customized according to needs) | |

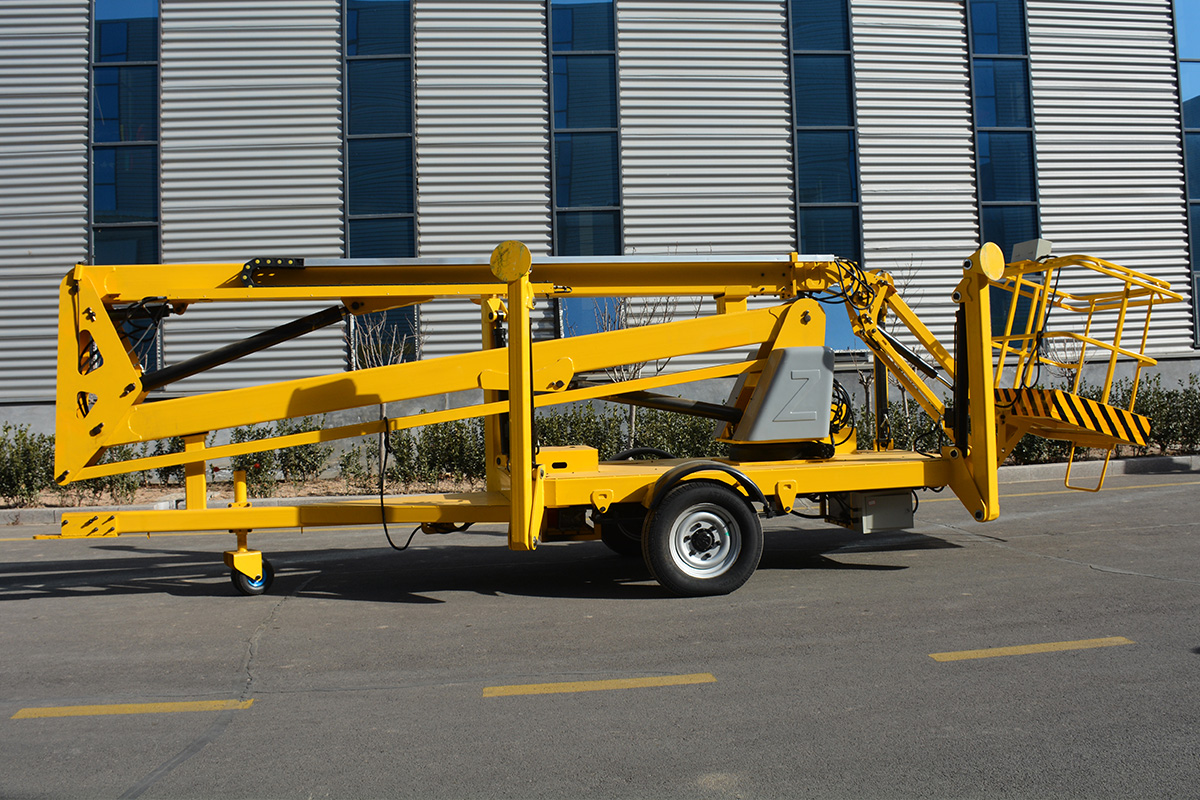

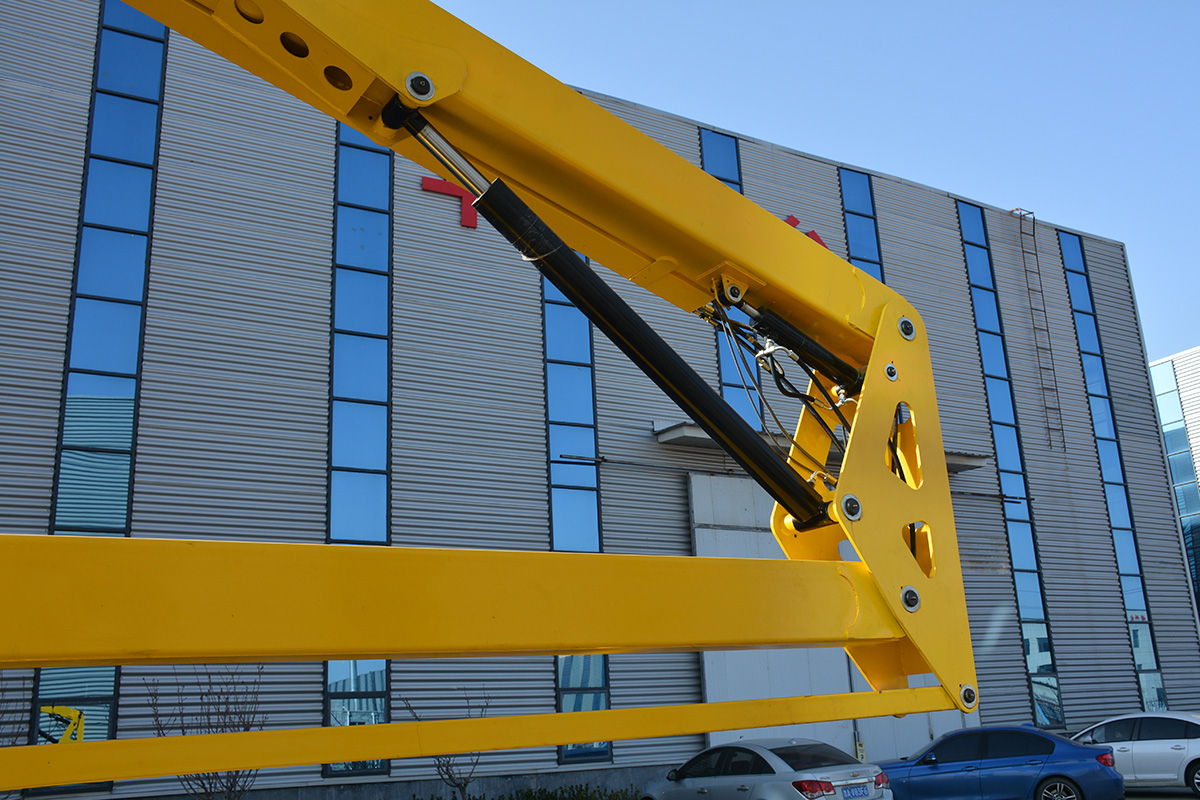

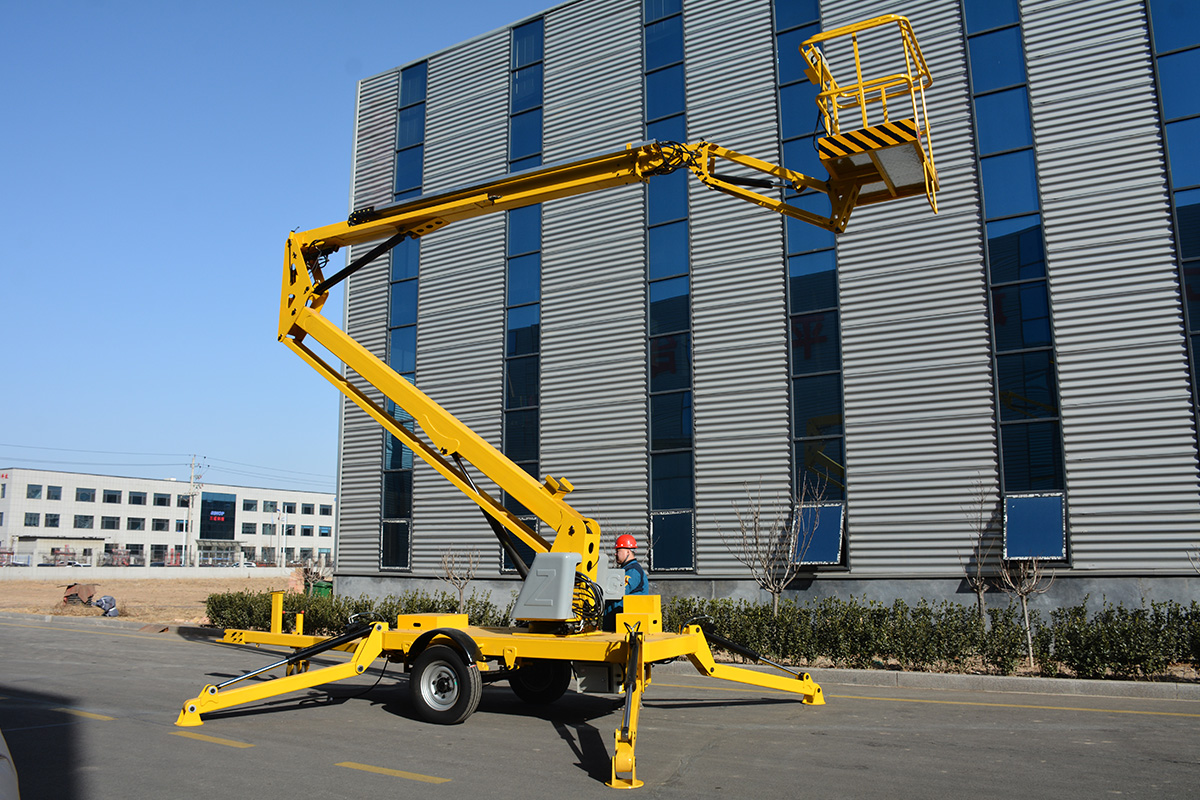

Trailer-mounted articulated aerial work platform is a type of aerial work equipment that can be moved by a trailer and has the characteristics of a folding arm structure. The platform's folding arm design allows operators to perform aerial work in a larger range while providing stable platform support. This type of equipment is commonly used in construction, maintenance, electricity, communications and other fields, and is particularly suitable for aerial work in densely populated areas or areas that cannot be accessed by traditional means.

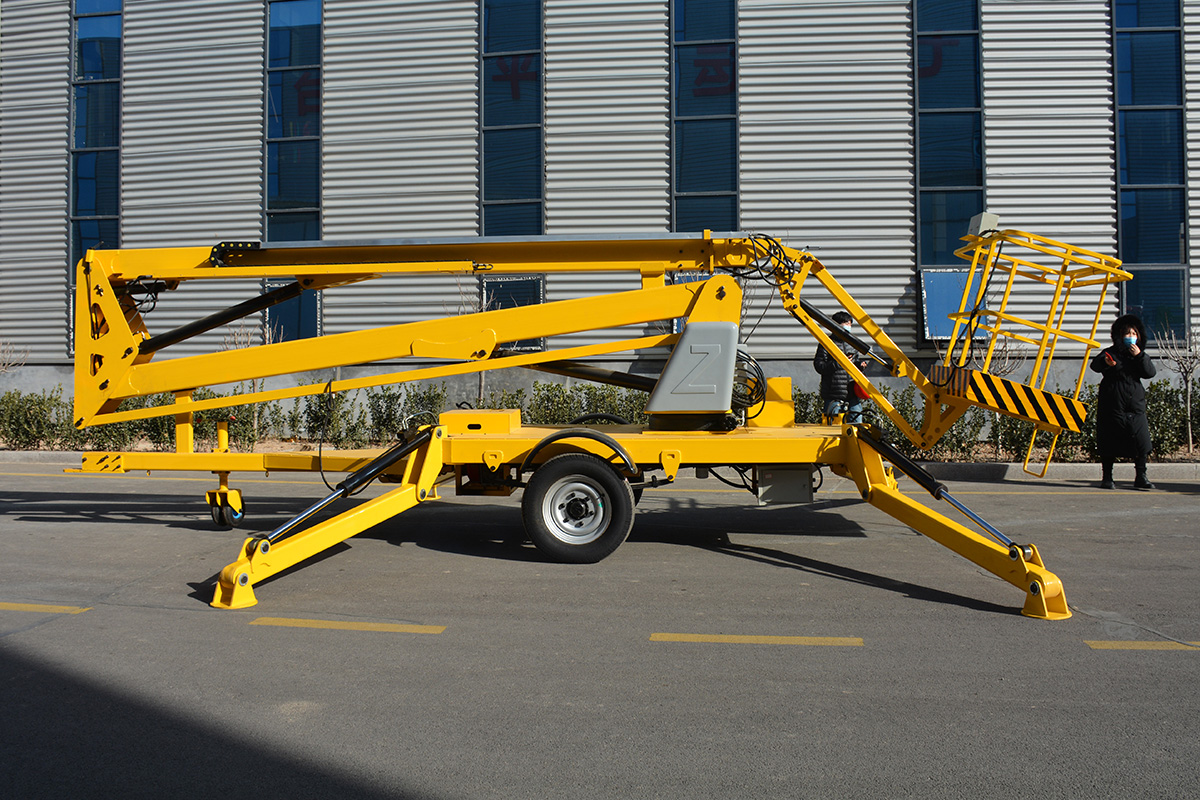

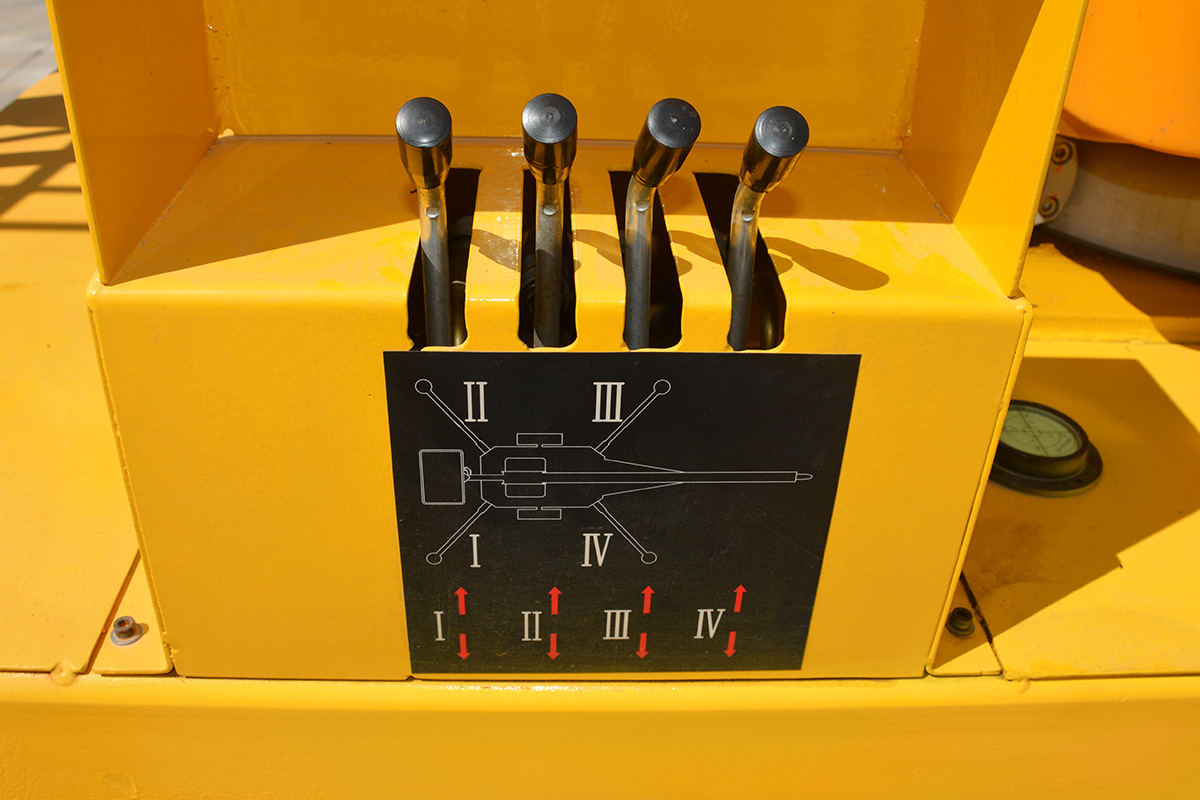

1. Can cross obstacles, fast erection speed, automatic hydraulic support feet.

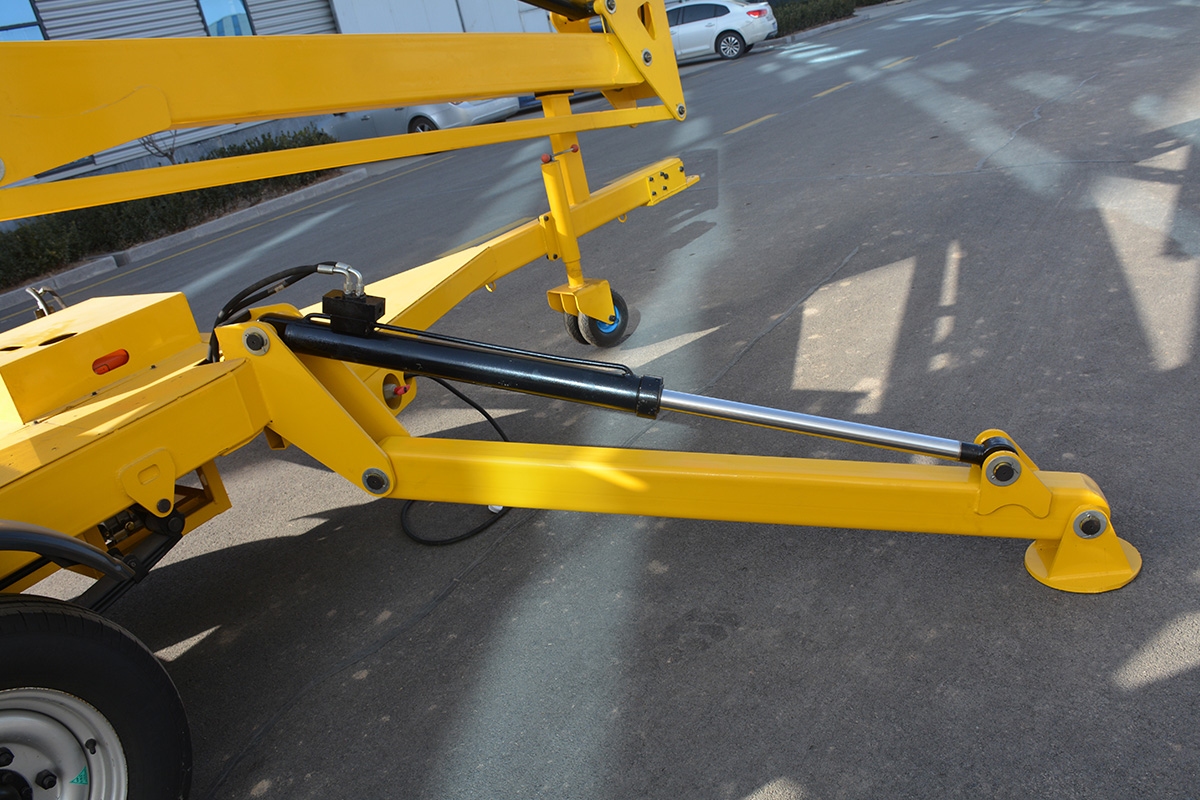

2. The height of each support foot can be adjusted according to the terrain to achieve the horizontal state of the platform.

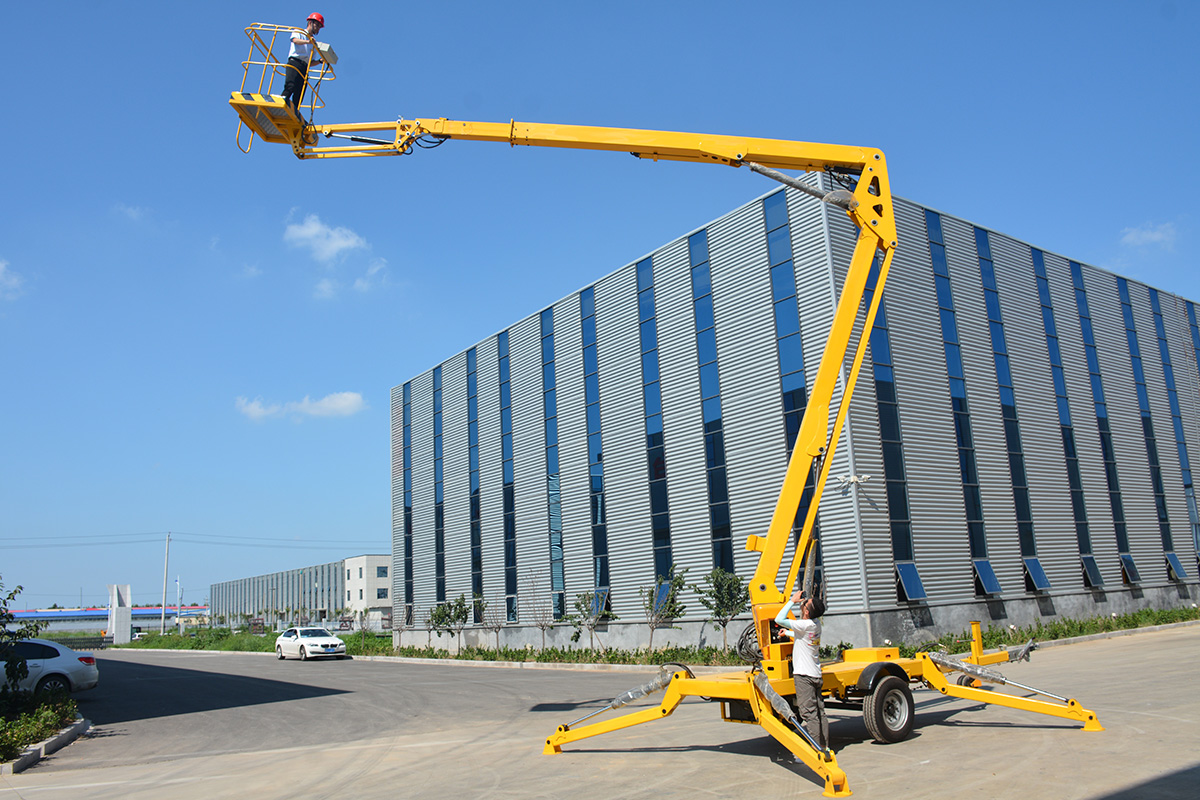

3. No need to move to achieve multi-point operation.

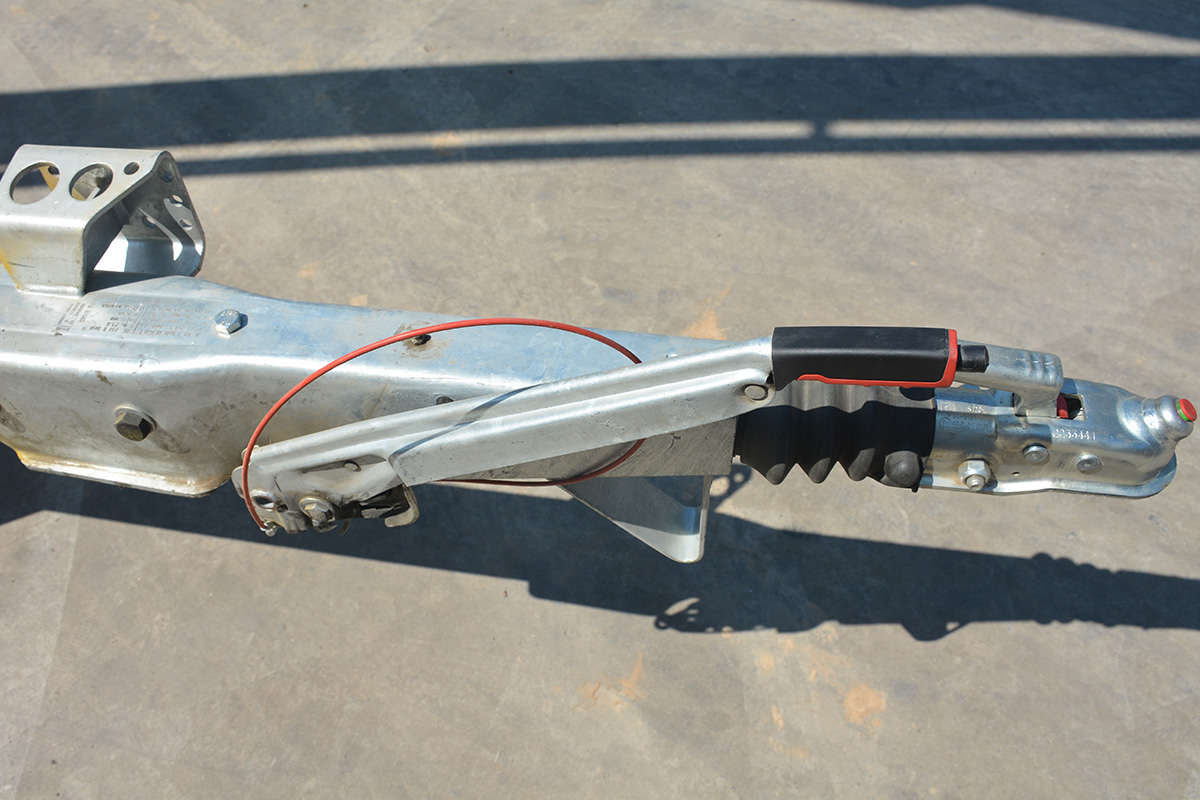

4. The trailer type is easy to transport and can be directly and quickly towed.
5. Widely used in municipal, electric power, street lights, advertising, docks and other industries.
6. The installation, maintenance and climbing operations are suitable for various rugged terrains in the wild.
