Maximum working height：7.8m
Maximum platform height：5.8m
Safe working load：230kg/380kg/550kg
| Product Parameters | |||
| Model (electric drive) | GTJZ06 (small 6 meters) | GTJZO6A | GTJZ06 |
| Maximum working height | 7.8m | 7.8m | 7.8m |
| Maximum platform height | 5.8m | 5.8m | 5.8m |
| Working platform size (length × width × height) | 1.29×0.7×1.05m | 2.26×0.81×1.1m | 1.29×0.7×1.05m |
| Wheelbase | 1.36m | 1.89m | 1.89m |
| Safe working load | 230kg | 380kg | 550kg |
| Lifting speed | 3-5m/min | 3-5m/min | 3-5m/min |
| Battery | 4×12V/80ah | 4×6V/200ah | 4×6V/200ah |
| Machine weight | 1650kg | 1880kg | 2050kg |

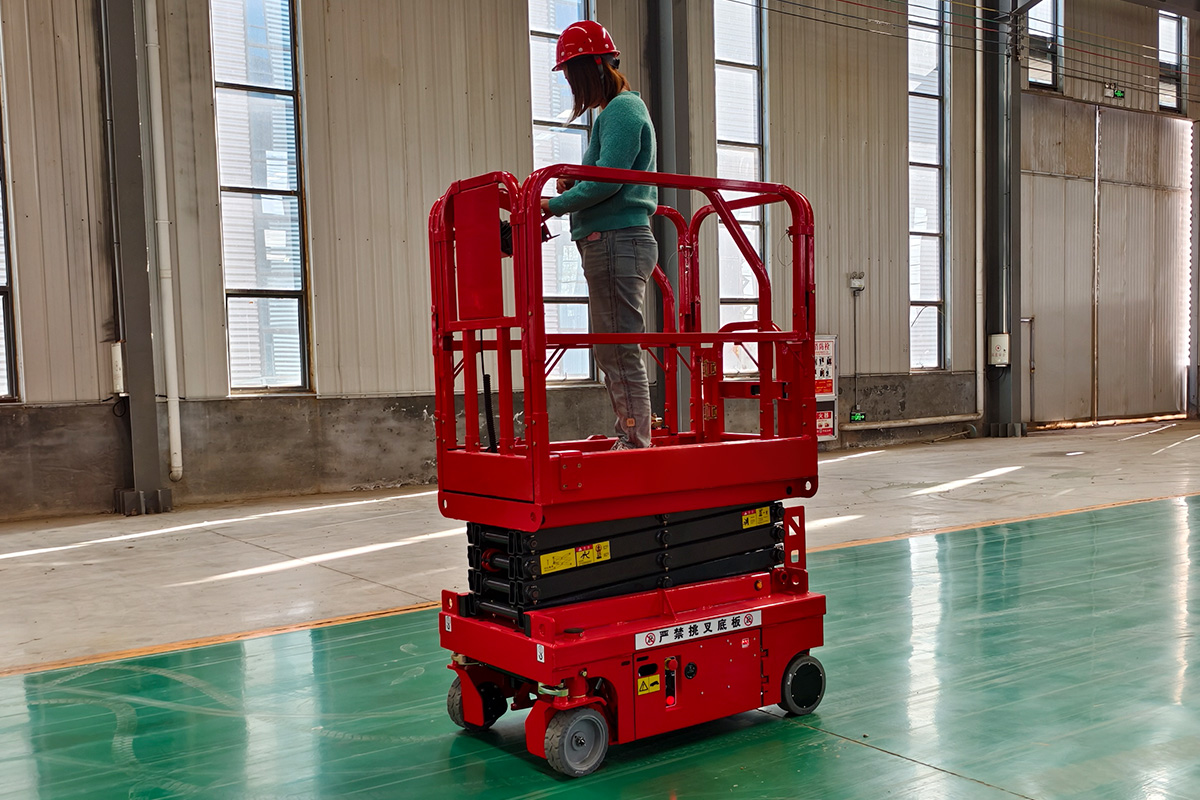

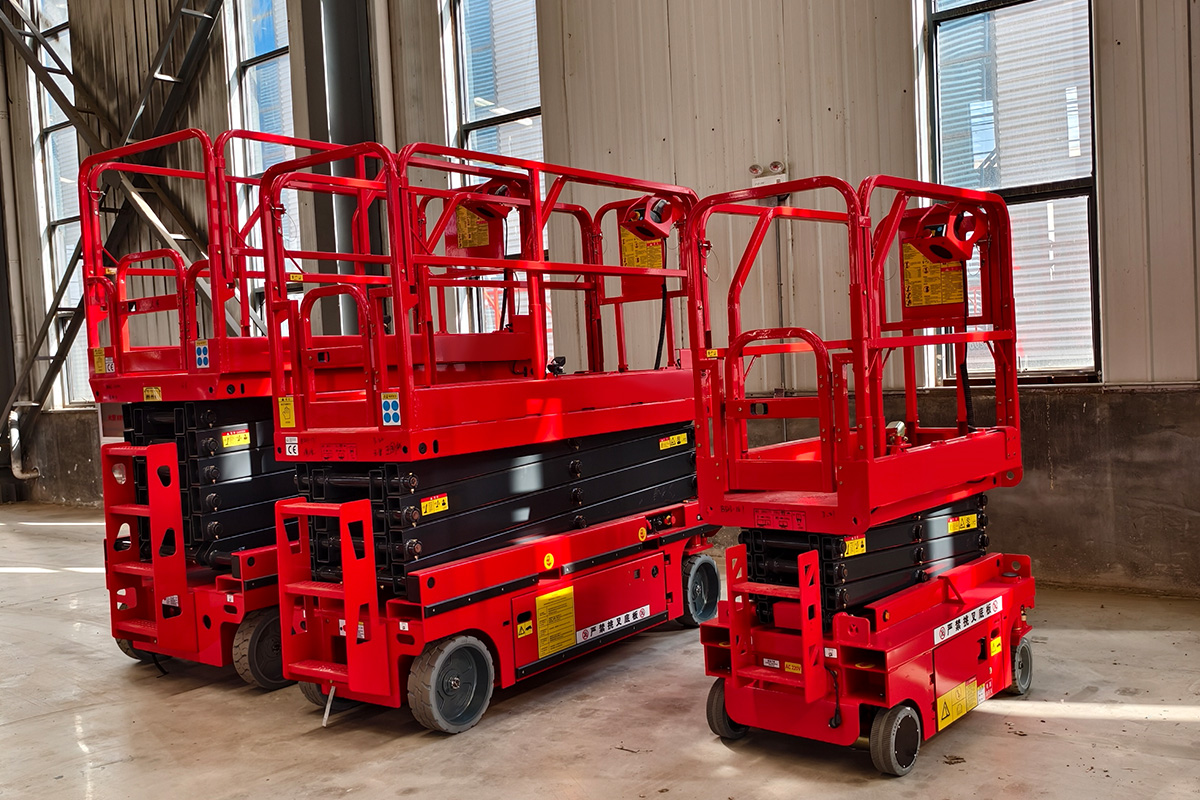

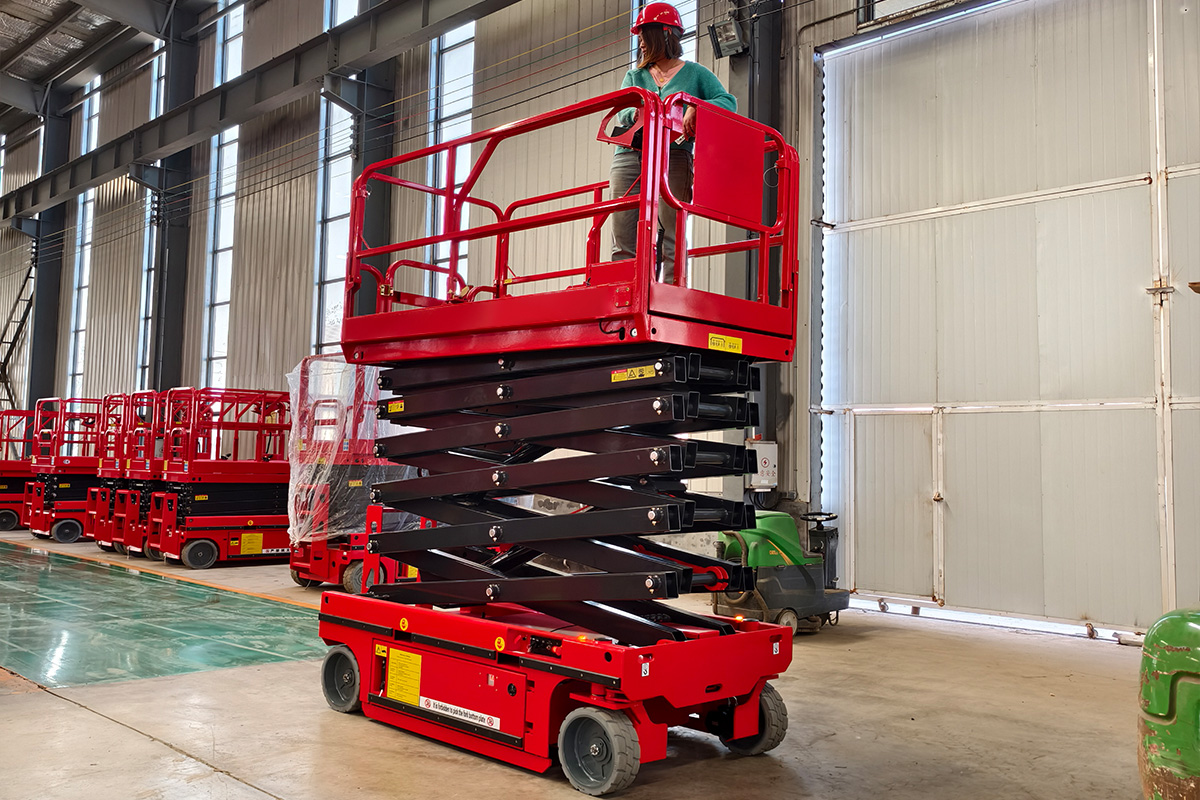

Self-Propelled Scissor Lift is a self-propelled aerial work equipment, widely used in construction, maintenance and warehousing.

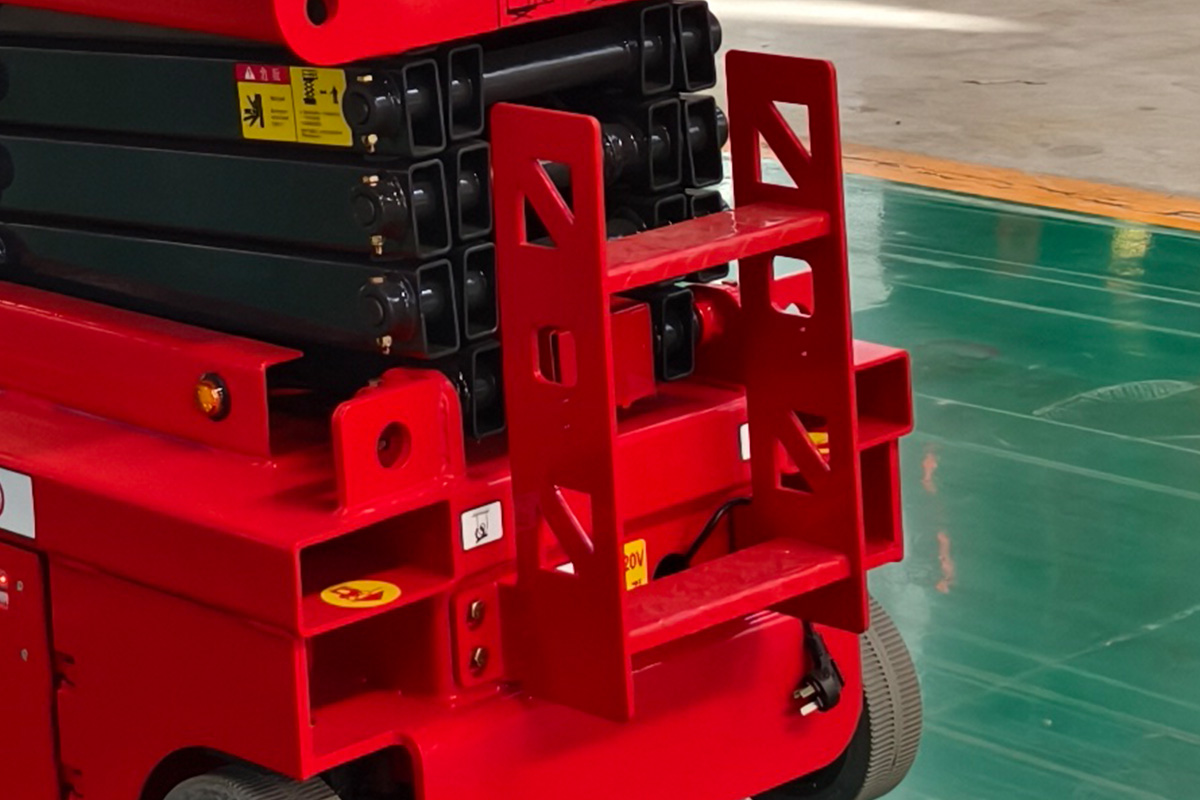

1. The foot-operated extension platform can be quickly spread to the work point.
2. The foldable fence reduces the size of the whole machine.
3. It is convenient to work in a small space.
4. 25% climbing ability, can climb up the slope smoothly.

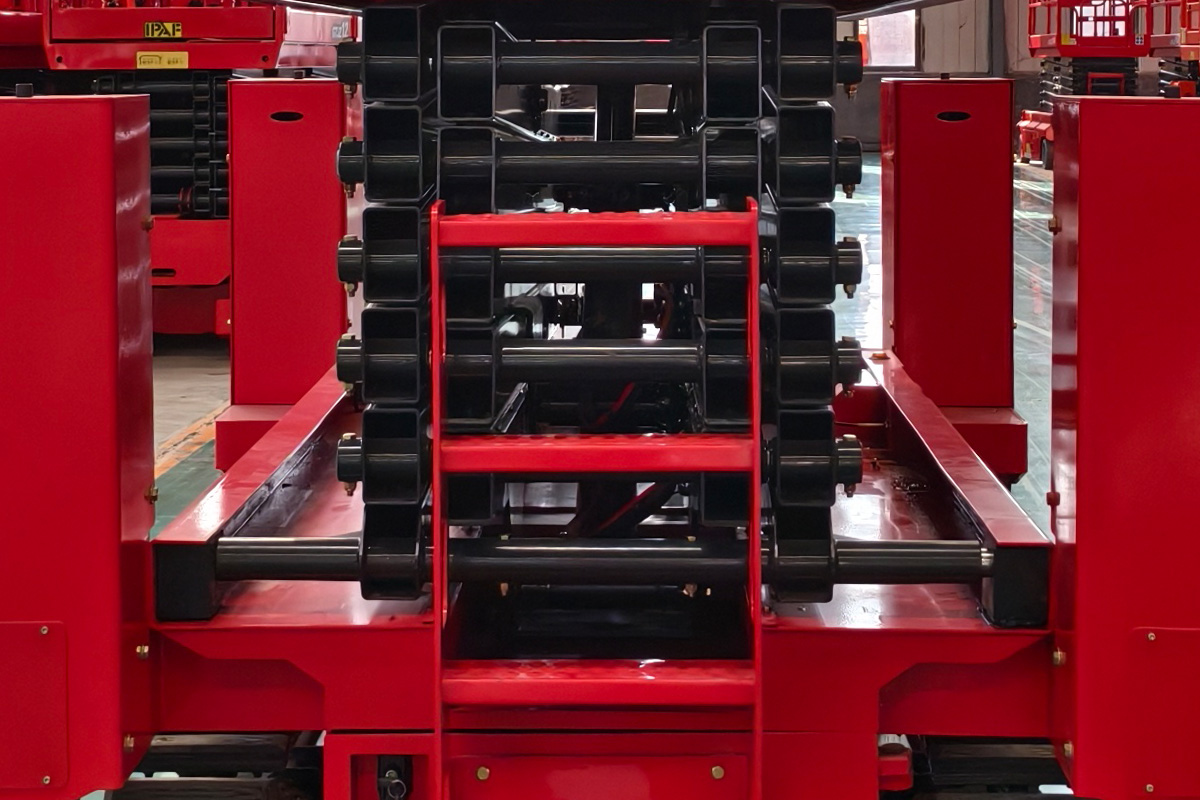

5. The rotating chassis is convenient for maintenance.
6.The fault code is automatically displayed for easy maintenance.
