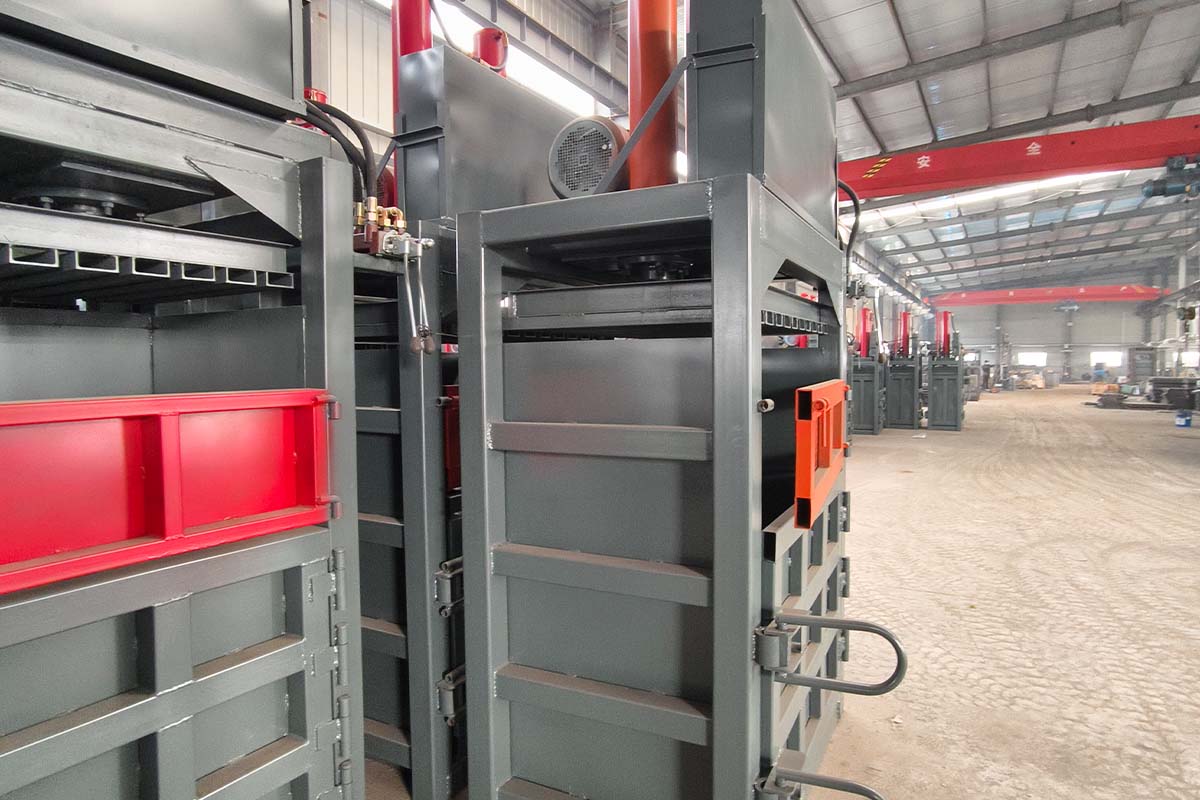

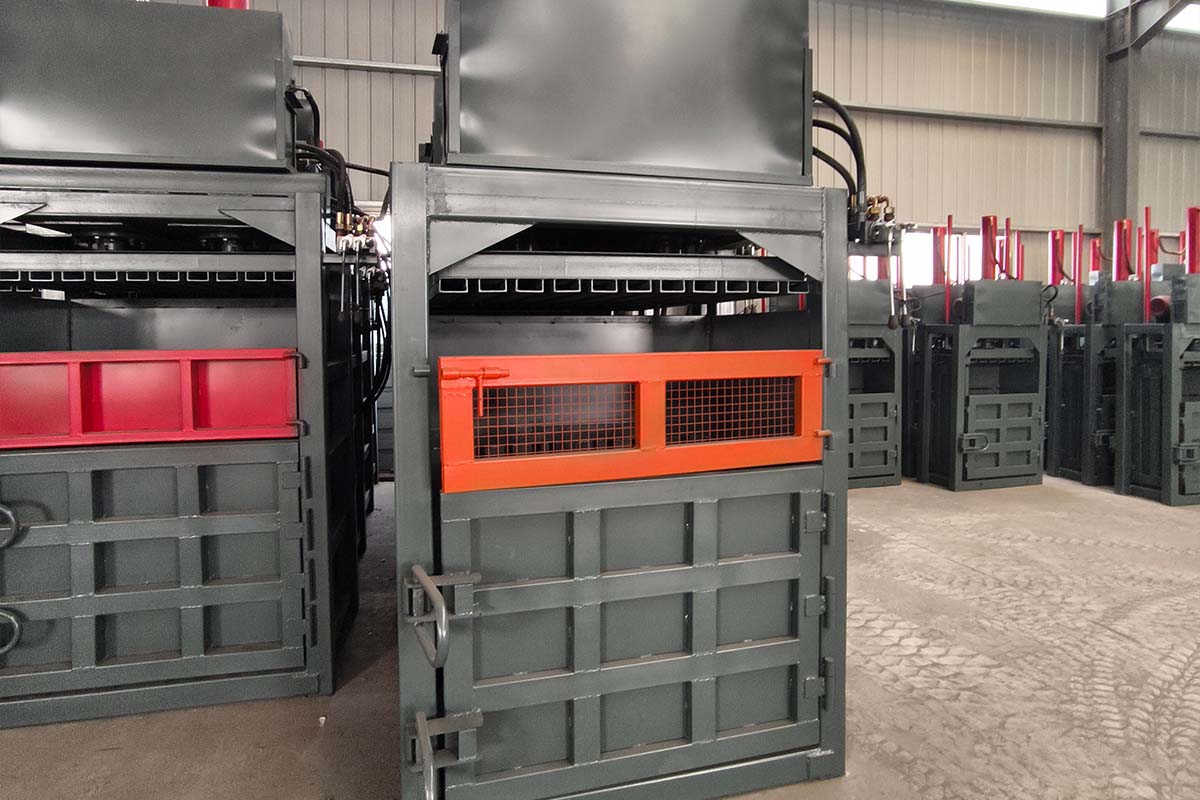

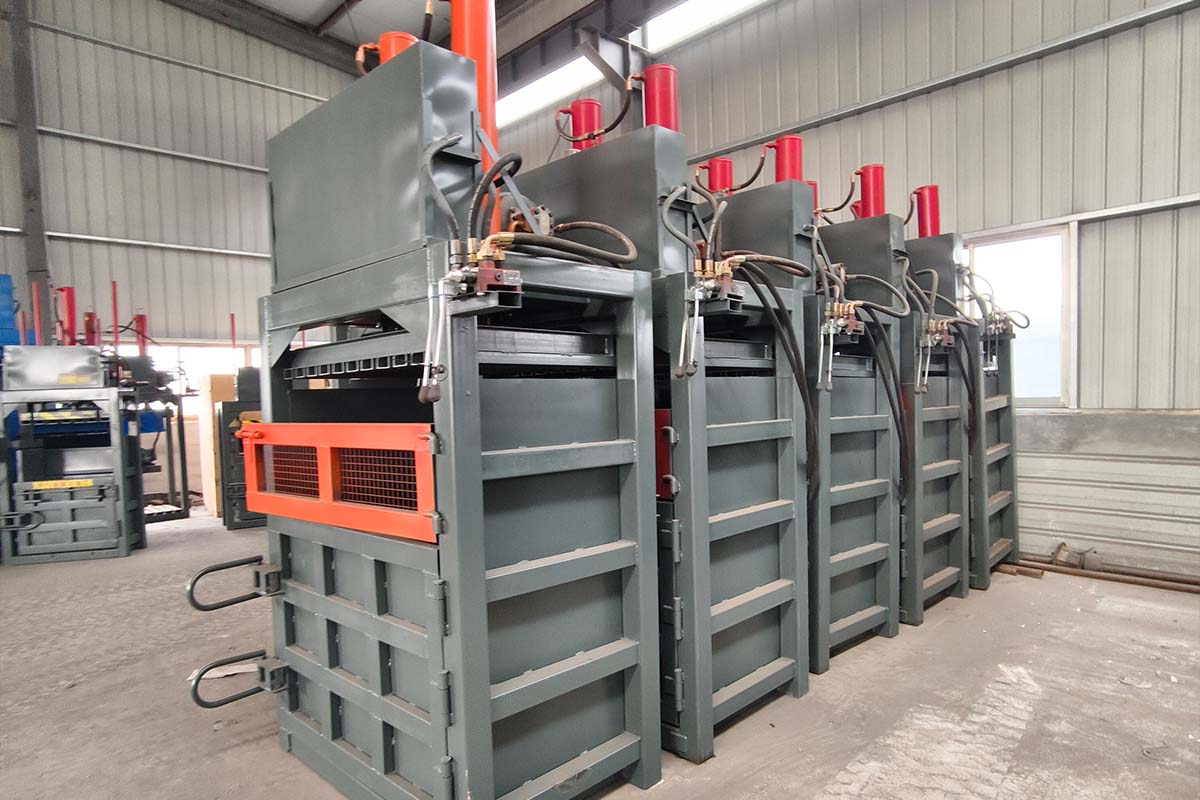

40T single-cylinder vertical hydraulic baler

Working Principle

 Usually use hydraulic drive system, the motor drives the oil pump to run, the hydraulic oil from the oil tank to the oil pipe, through the solenoid valve and other control elements to adjust the pressure and flow of the hydraulic system, the hydraulic oil pushes the piston of the oil cylinder, drive the compression plate and other parts connected to the piston to move downward, on the bearing parts placed on the material to be compressed, when the material is compressed to the set pressure or size, the control system to make the When the material is compressed to the set pressure or size, the control system will make the cylinder stop moving and then carry out subsequent operations such as strapping.

Structural components

Hydraulic system

it consists of oil tank, oil pump, motor, solenoid valve, pressure gauge, oil pipe, etc. It provides power for the baler and precisely controls the pressure and flow rate to ensure the stability and high efficiency of the baling process.

Mechanical system: including shell, compression plate, pressure plate, moving plate, connecting plate, wire rope and other components, to realize the compression and fixation of materials, to ensure the regularity and tightness of the package.

Control system

it is composed of electrical box, hydraulic controller, PLC controller, human-machine interface, etc. It is used for setting baling parameters, monitoring the baling process and controlling the running status of the baler, and can realize manual or automatic control operation.

Packing device: some balers are equipped with conveyor belts, stacking racks and conveying equipment, etc., which are used to store and convey the finished baled articles to improve the automation and working efficiency of production.

Features

Powerful pressure

20 tons of pressure can effectively compress a wide range of materials, such as waste paper, plastics, metal trimmings, textiles, etc., so that their size is greatly reduced, which is convenient for subsequent transportation, storage and disposal.

Vertical design

 compact structure, small footprint, suitable for use in places with limited space, such as small recycling stations, processing plants, warehouses, etc., can make full use of the vertical space, improve site utilization.

Easy operation: manual control or PLC automatic control operation can be selected. Under manual control mode, the operator can control the baling process flexibly according to the actual demand, which is suitable for baling small batch and different kinds of materials; PLC automatic control mode can realize automatic continuous operation, improve the baling efficiency and reduce the error of manual operation.

Regular bale shape

It can compress the materials into neat and compact bale shape, such as rectangle, square, etc., which is convenient for stacking, palletizing and transporting, and helps to improve the utilization rate of the storage space and reduce the cost and risk of the transportation process.

Strong applicability

 by adjusting the parameters or replacing some parts, it can be applied to different types and sizes of materials to be baled. Some models can also be equipped with different feeding devices and discharging methods to meet diversified production needs.

Safe and reliable: Equipped with perfect safety protection devices, such as emergency stop button, protective door, light curtain sensor, etc., it can effectively protect the safety of operators and prevent accidents.
