Maximum Lifting Capacity: 1.5 Ton
Maximum Working Radius: 5.5 m × 0.3 Ton
Maximum Ground Lifting Height: 6.25 m

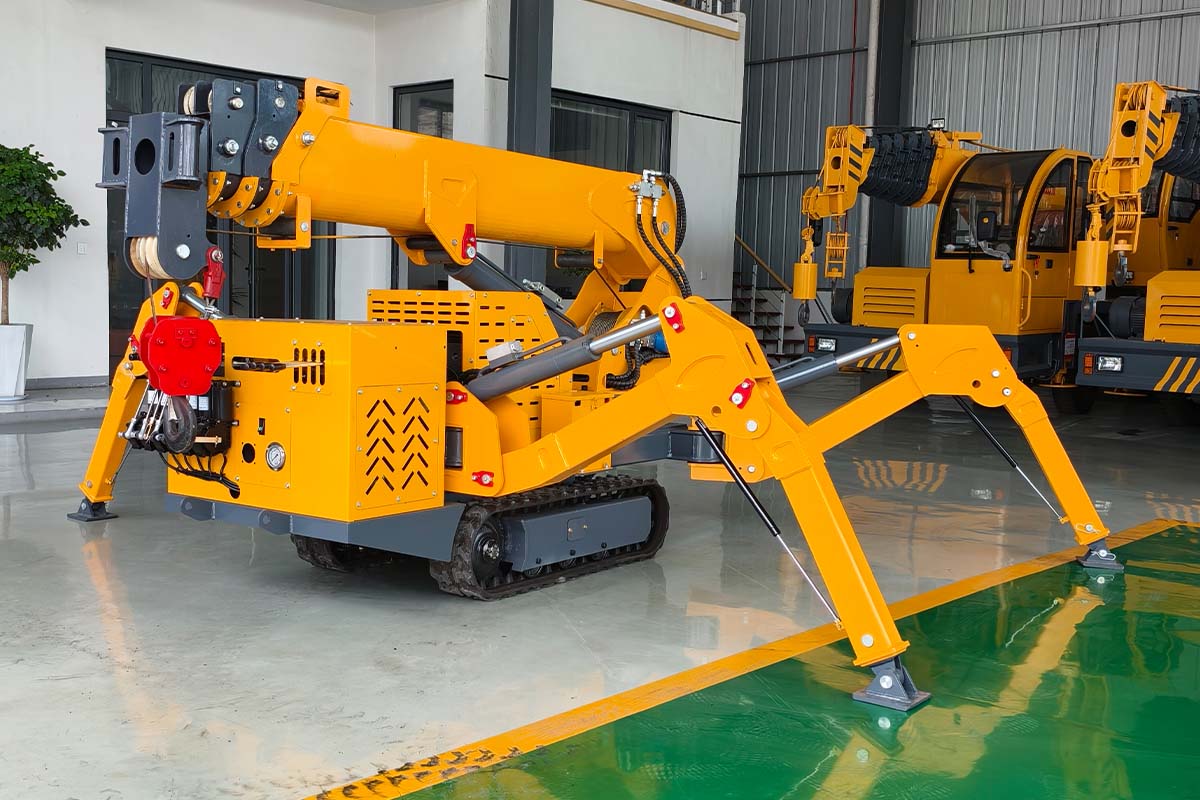

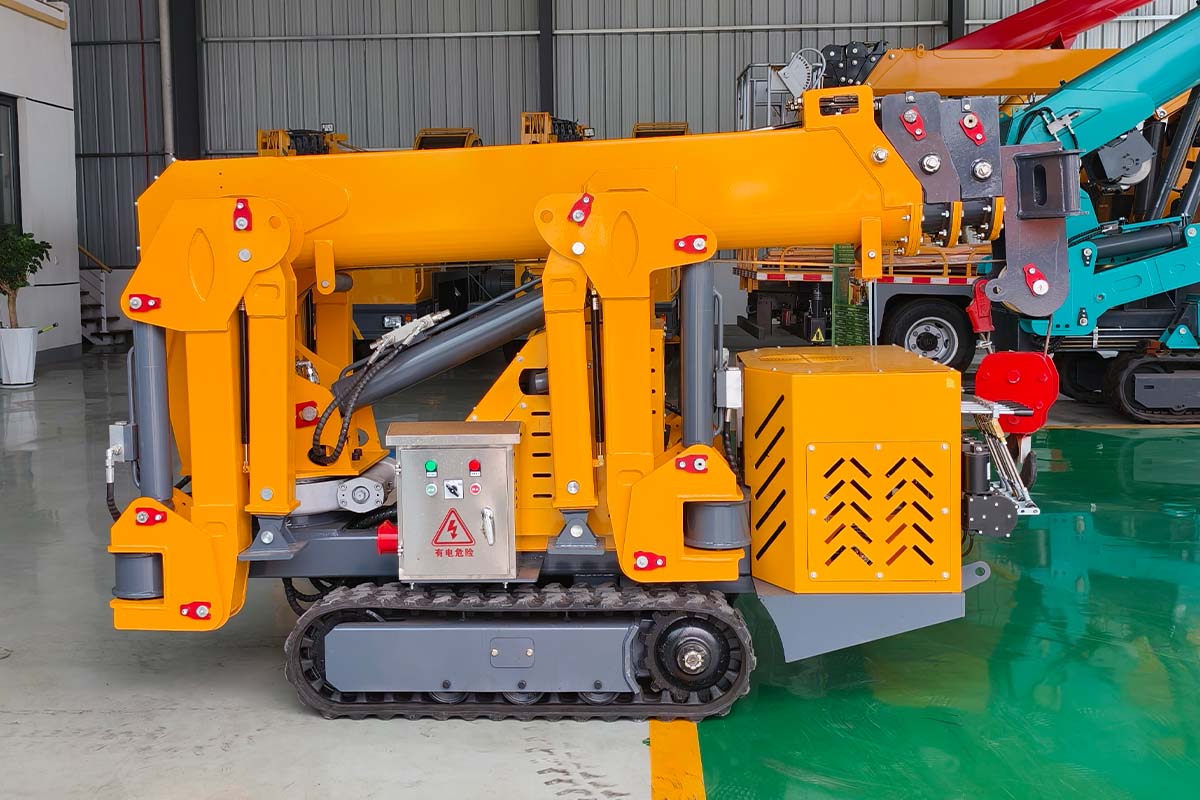

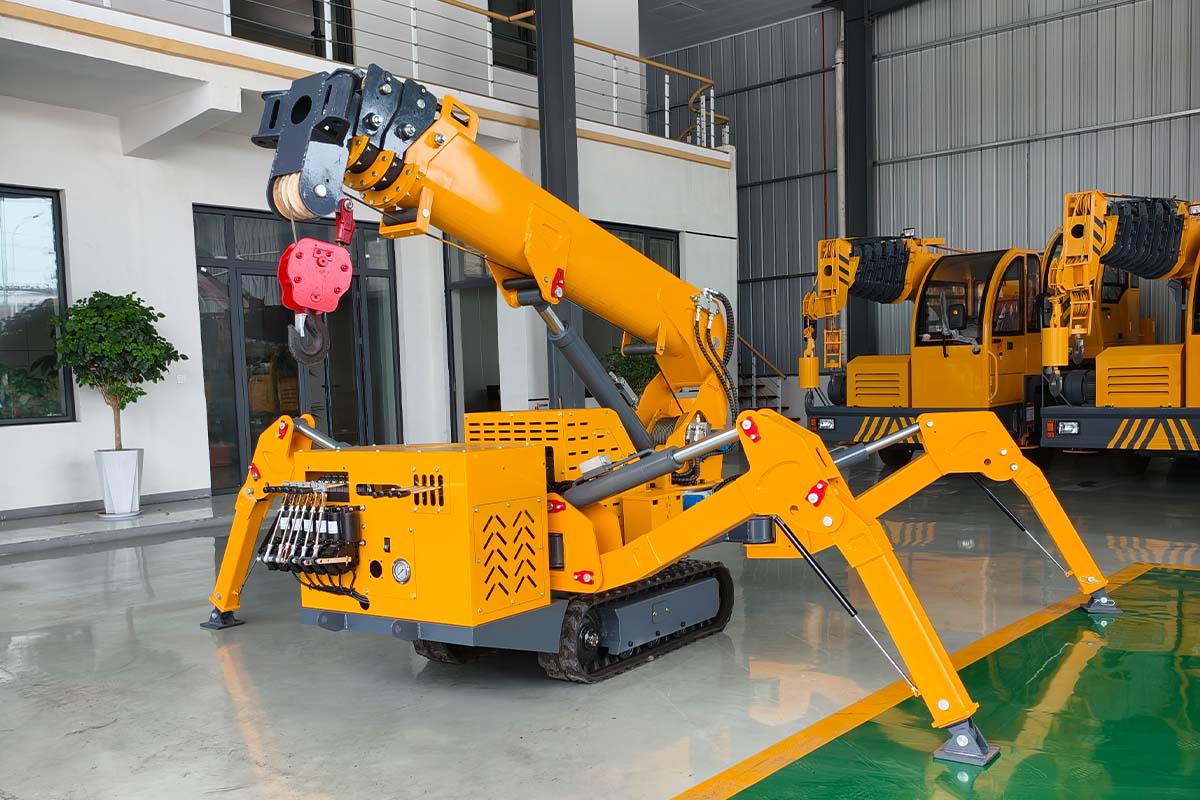

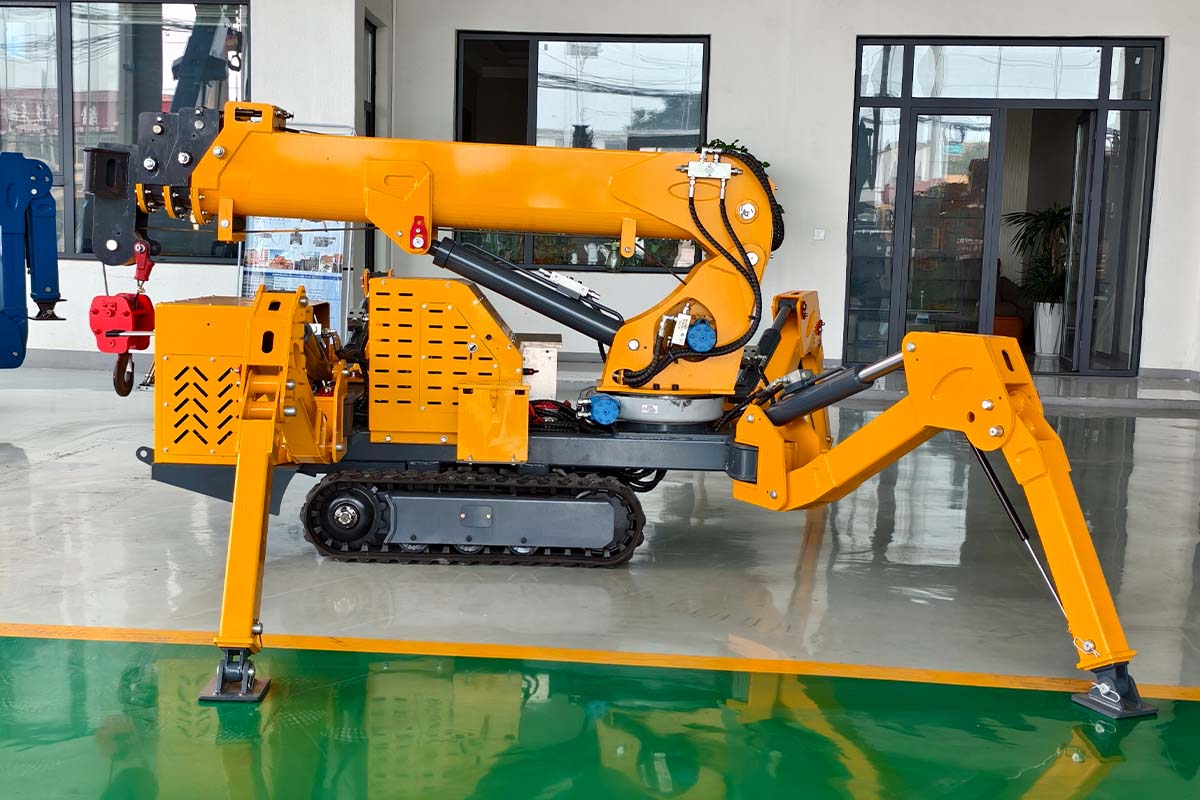

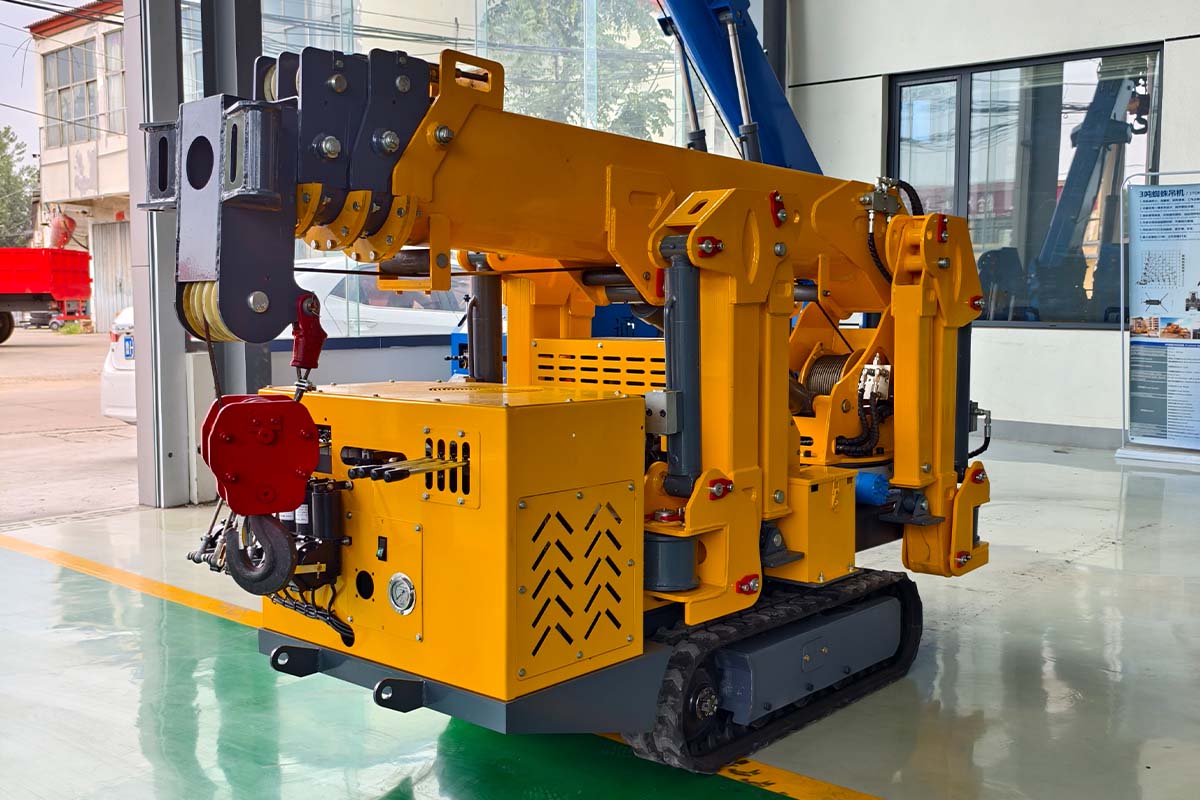

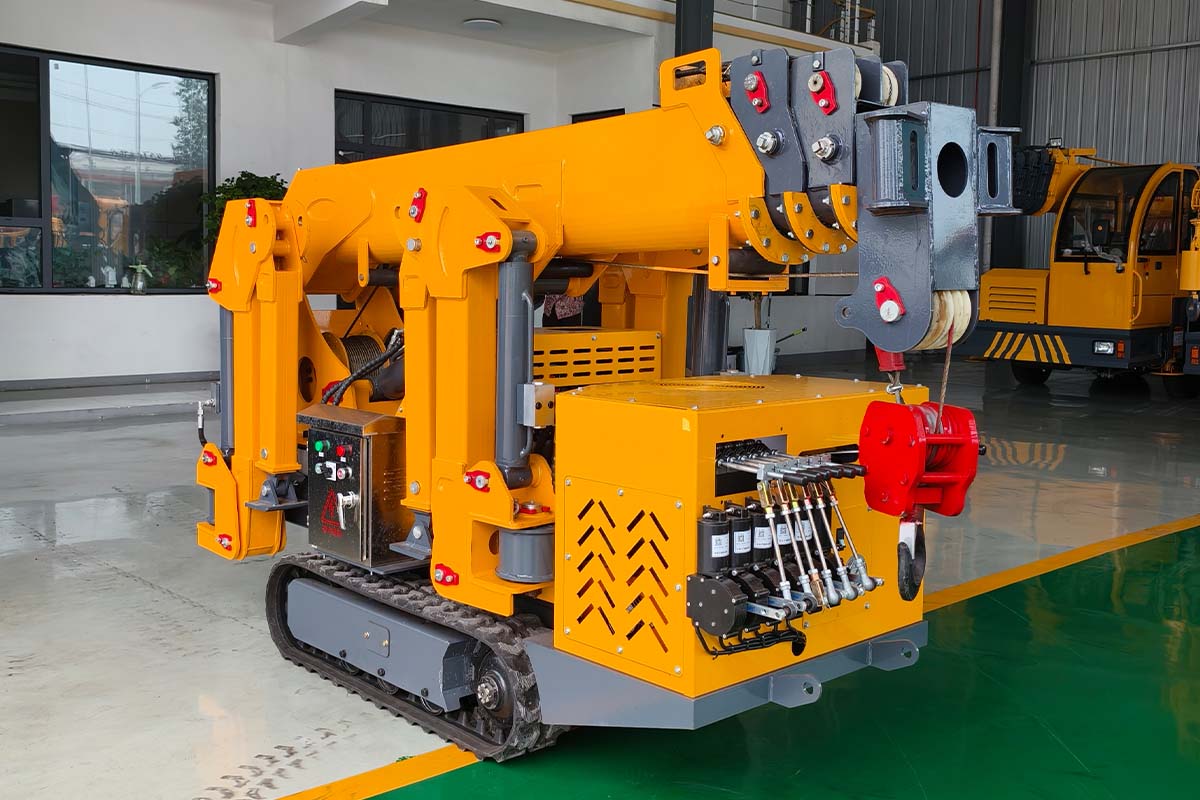

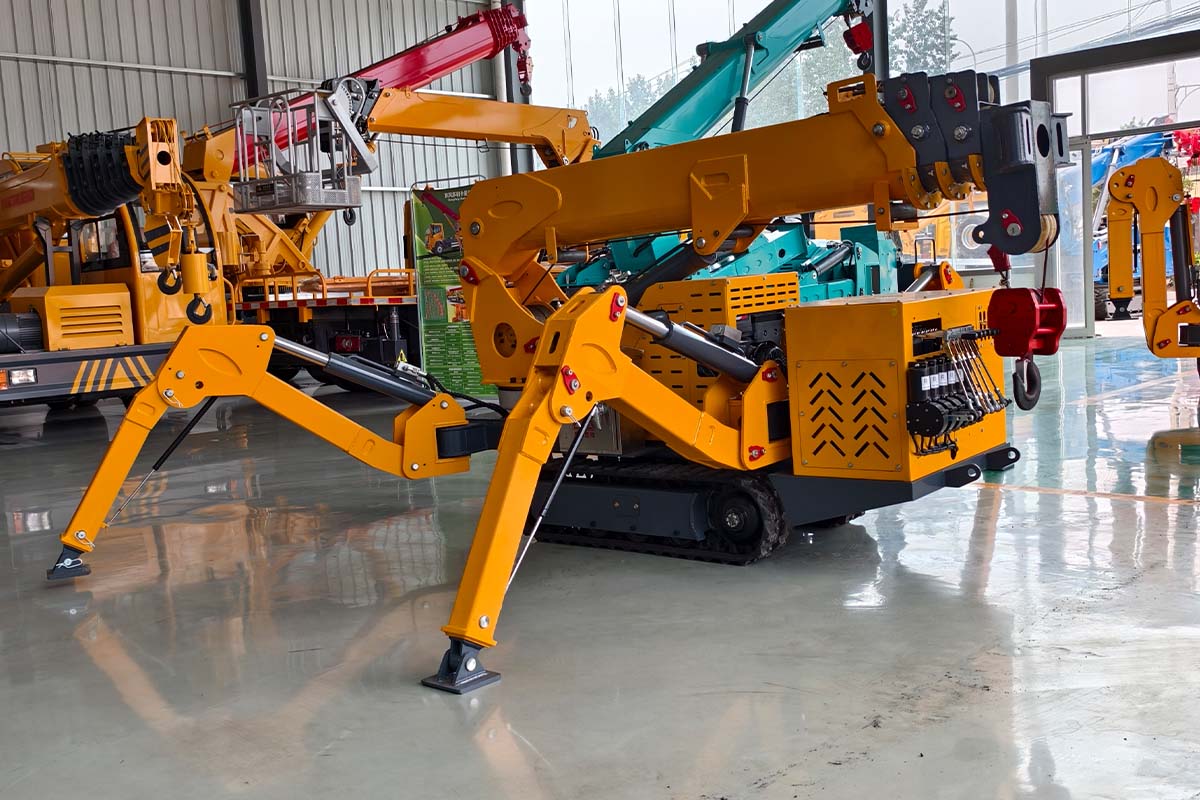

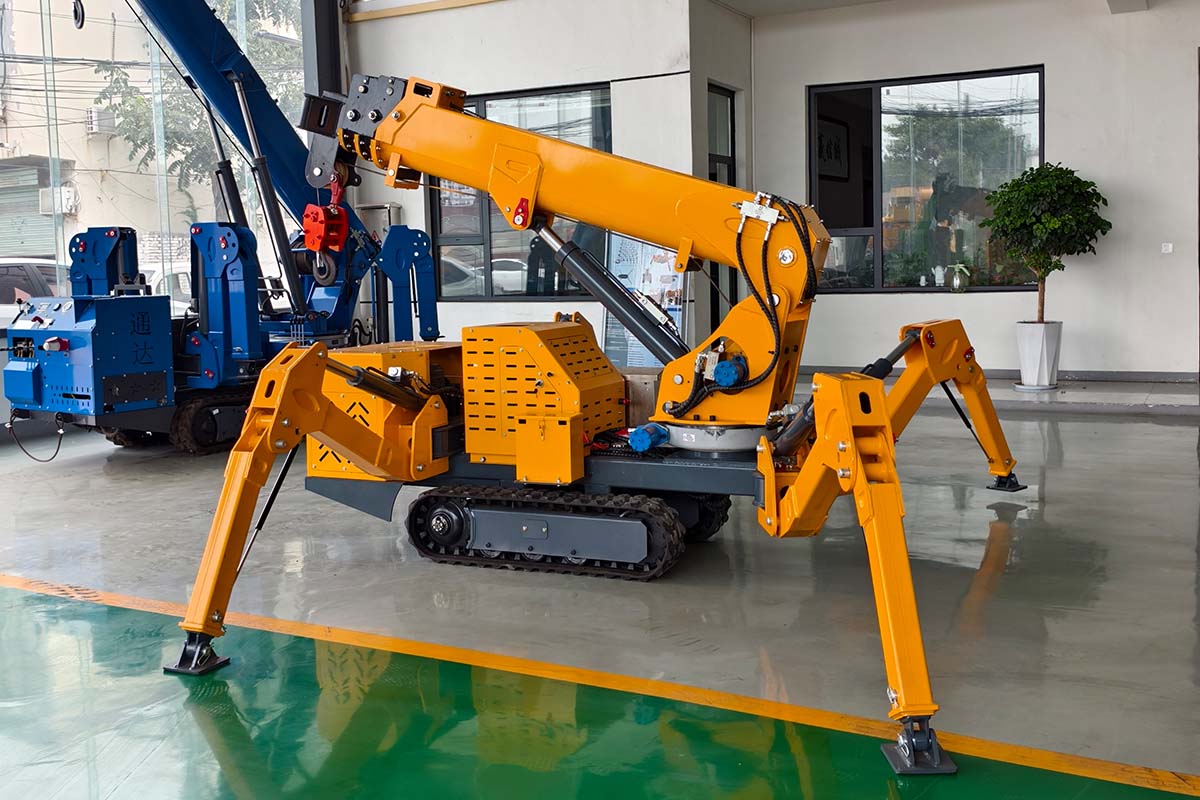

The Custom Spider Crane 1.5T (Model: RICHYD1.5T-K5) is a compact and versatile crane designed for precise lifting in confined spaces. With a 1.5-ton lifting capacity, dual power sources, and a user-friendly manual operation system, this crane delivers outstanding performance for indoor and outdoor tasks.
The 1.5T Spider Crane is perfect for construction, logistics, maintenance, and heavy lifting in environments requiring compact and mobile equipment. Its dual power system (diesel and electric) ensures adaptability to various working conditions.
Our vehicle-mounted cranes are all sold and shipped directly from the factory, ensuring that customers can purchase cranes at the best price. We also have an excellent R&D and production team that can redesign and manufacture cranes according to customer needs.
The Spider Crane 1.5T have a variety of different specifications and models, which can be selected according to different lifting weights, working radius and operating requirements. In addition, it can also be customized according to special work needs, such as adding special spreaders, working platforms, etc., to adapt to more complex and diverse work scenes.
| Spider Crane 1.5T | ||
| Model | RICHYD1.5T-K5 | |
| Maximum Working Radius | 5.5m*0.3T | |
| Maximum Ground Lifting Height | 6.25m | |
| Winch Device | Hook Speed | 2.3m/min 4 ropes |
| Telescopic System | Boom Type | Full automatic 5 section |
| Boom Length | 1.8m-5.7m (1.5m 5 sections) | |
| Telescopic Length/Time | 2.1m-5.5m/30sec (20sec at high speed) | |
| Traction system | Walking Way | Hydraulic motor |
| Grade Ability | 20° | |
| Ground Length*Width | 1150mm*150mm*2 strips (150mm*72*34 sections) | |
| Ground Pressure | 49.0Kpa（0.50kgf/cm²） | |
| System voltage | 12V | |
| Vehicle size | 2260mm*600mm*1470mm | |
| Vehicle weight | 1.6T | |
