RICHYD5T-K5

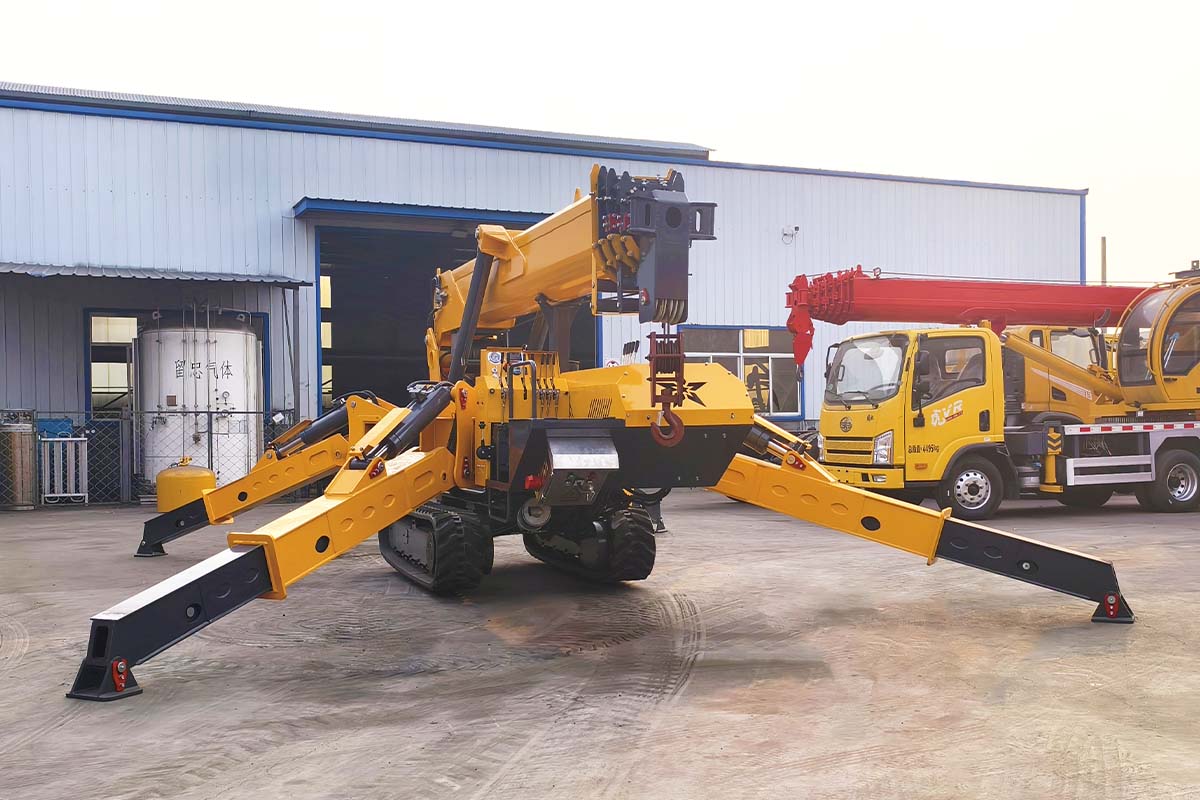

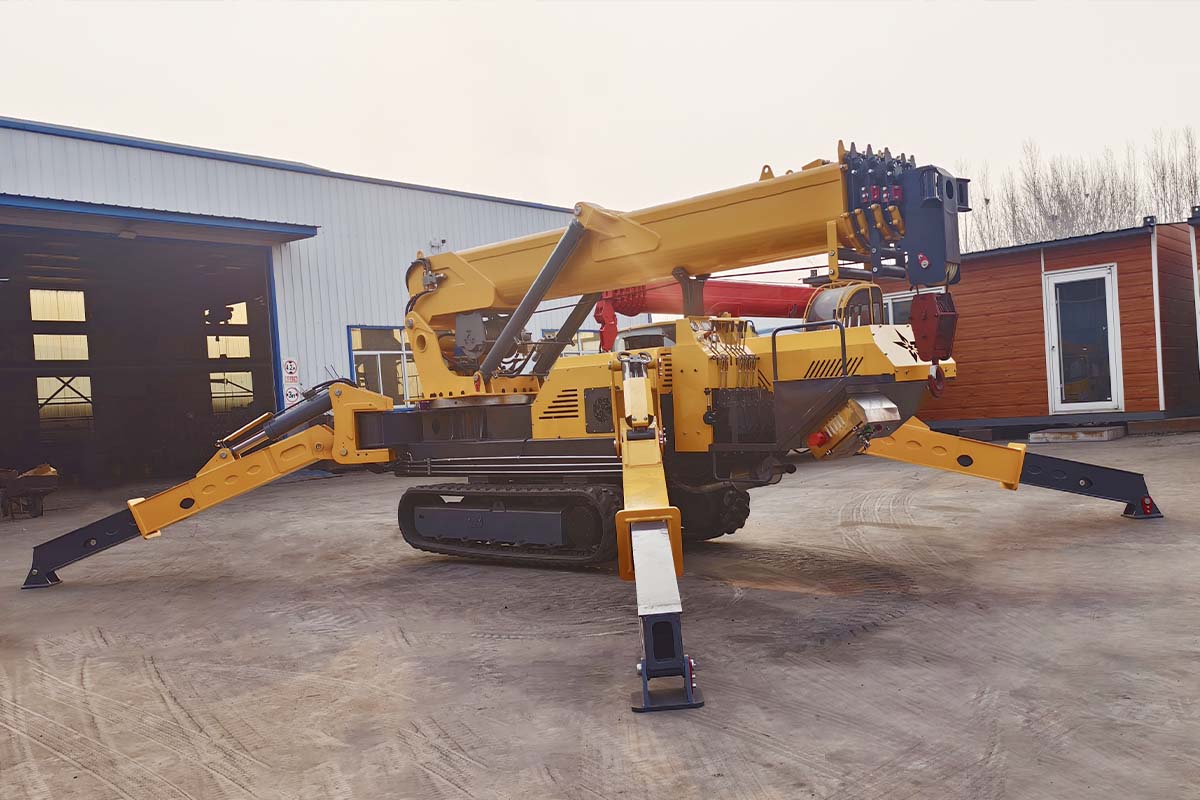

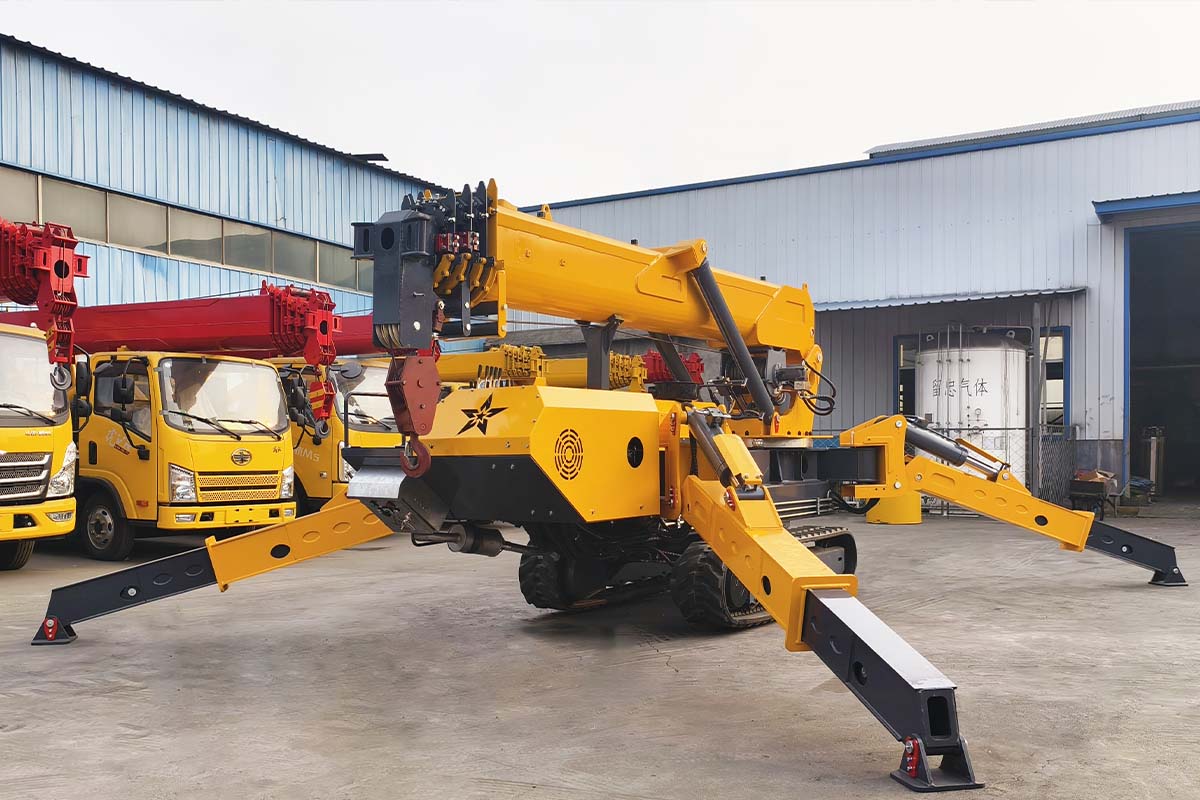

The Custom Spider Crane 5T (Model: RICHYD5T-K5) is a compact and versatile crane designed for precise lifting in confined spaces. With a 5-ton lifting capacity, dual power sources, and a user-friendly manual operation system, this crane delivers outstanding performance for indoor and outdoor tasks.

Applications:

The 5T Spider Crane is perfect for construction, logistics, maintenance, and heavy lifting in environments requiring compact and mobile equipment. Its dual power system (diesel and electric) ensures adaptability to various working conditions.

Key Features:

1. High Lifting Capacity:
   Handles loads up to 5 tons, with a maximum lifting height of 16.8m and a working radius of 16m x 0.75t.

2. Boom System:

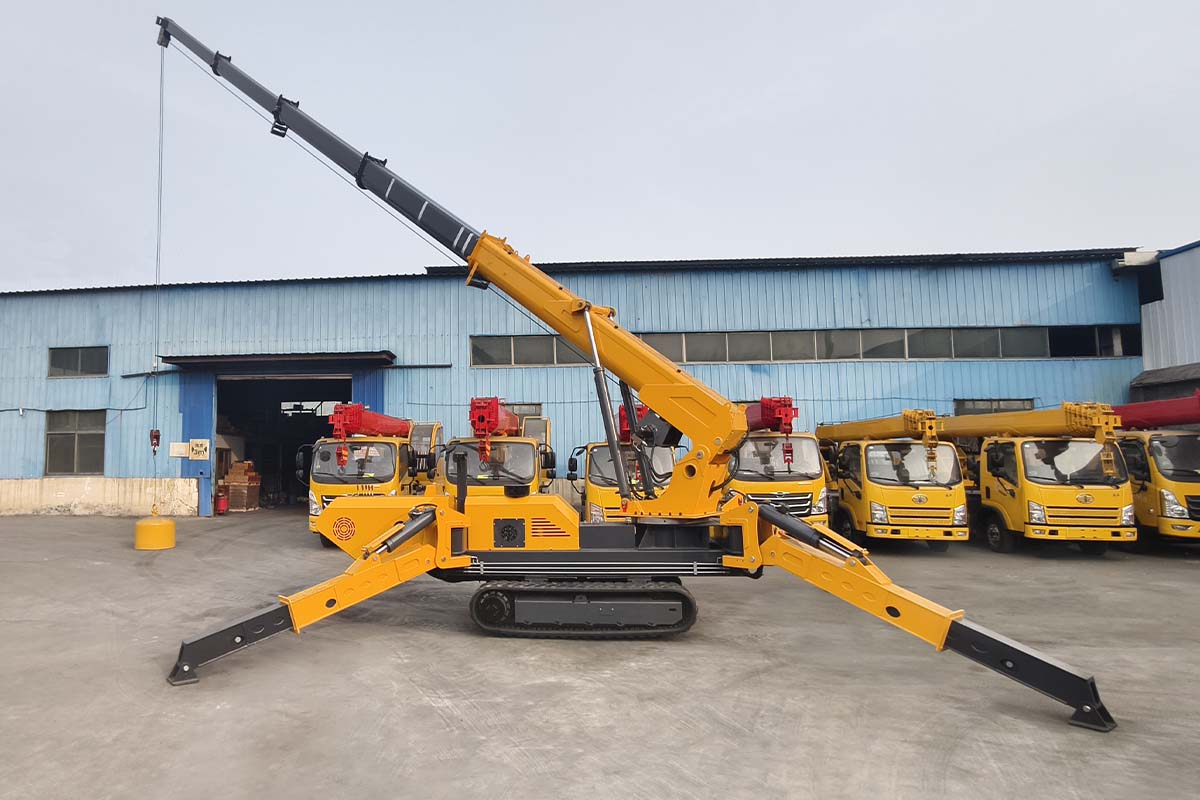

   Equipped with a 5 section U-shaped structure, capable of precise lifting operations. The boom offers quick extension and rotation, achieving 0-80° in 13 seconds.

3. Efficient Winch System:
   Includes a robust winch with 4 ropes, delivering lifting speeds of 0-12m/min, and a 11mm × 80m wire rope for reliability.

4. Stable Outrigger Design:

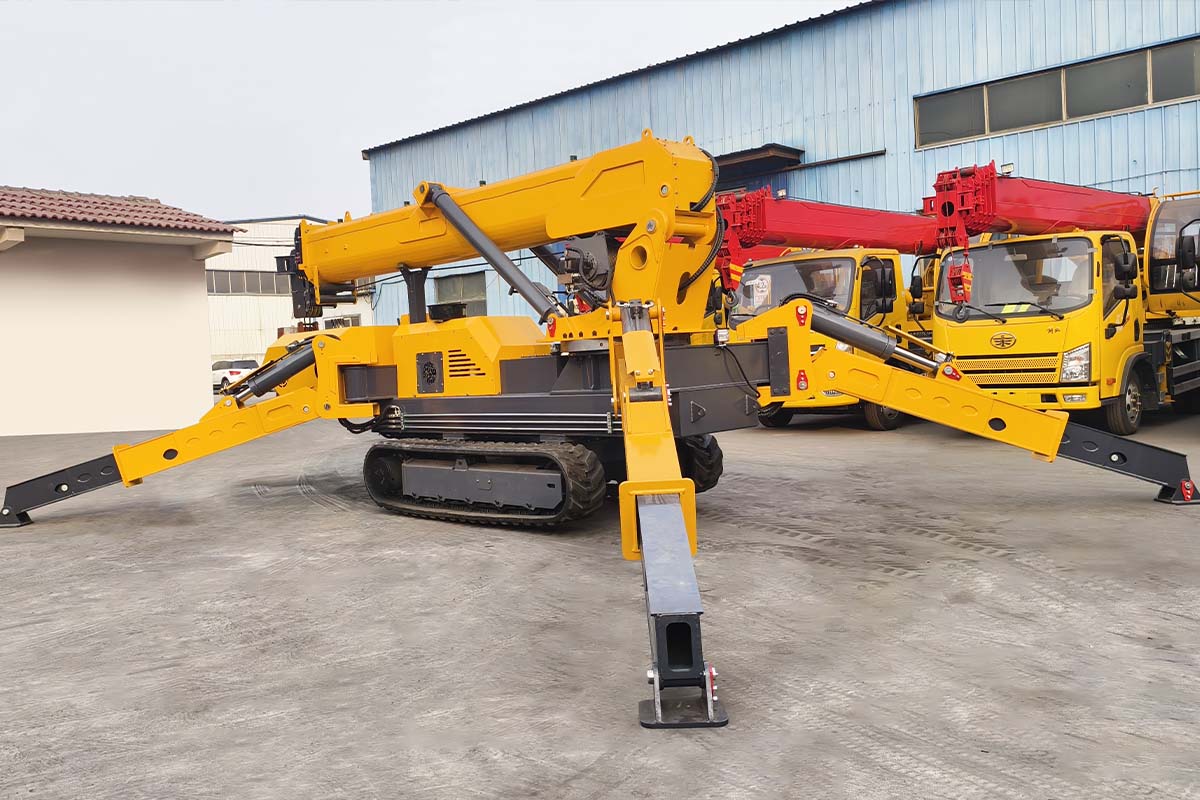

   Features manual rotation and hydraulic automatic support with a 5800 × 5900mm extended reach, ensuring safety and stability on uneven terrains.

5. Dual Power System:
   Powered by a diesel engine (490/37kW) and a 380V electric motor, offering flexibility for both indoor and outdoor operations.

6. Mobility and Adaptability:
   The crane uses hydraulic motor drive with two-speed travel and a maximum speed of 2.5km/h, as well as a climbing ability of 20° (36%), making it suitable for diverse terrains.

7. Compact Design:

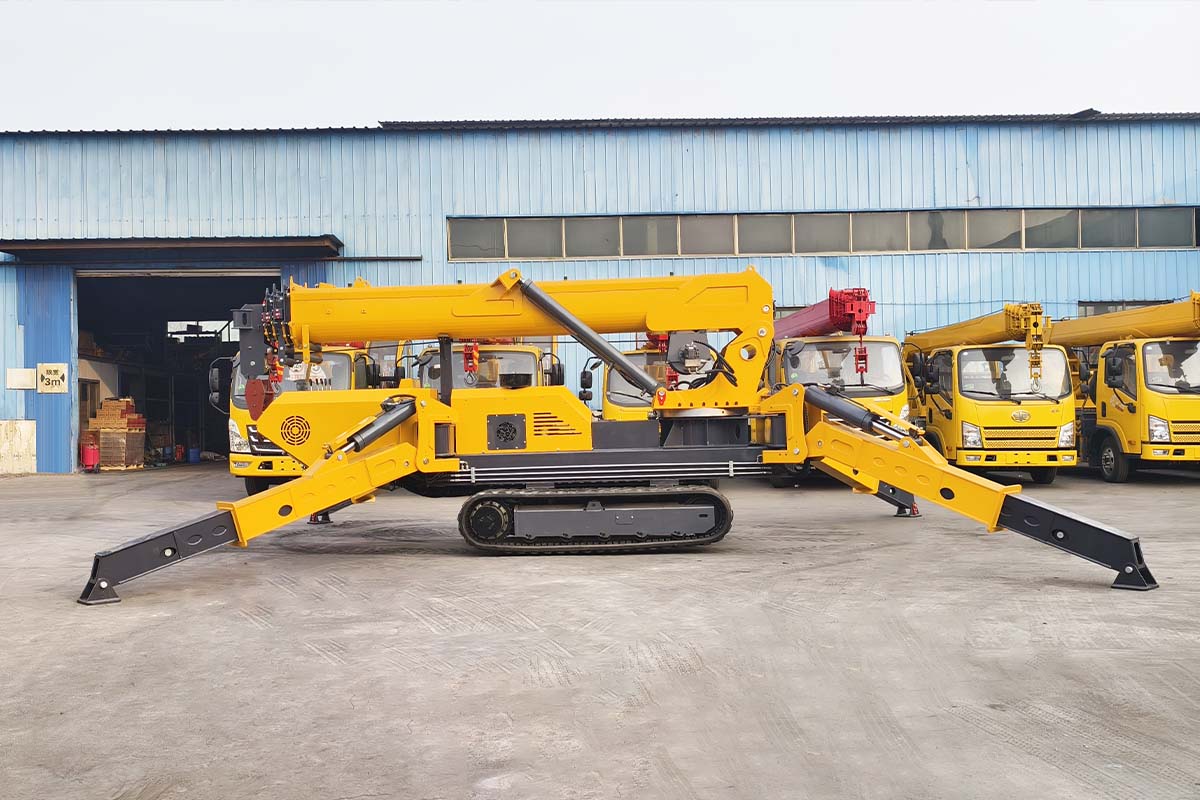

   The crane's dimensions are 4700mm × 1456mm × 2200mm, allowing for easy transportation and operation in confined spaces.

8. User-Friendly Operation:
   Offers manual control for both boom and outrigger systems, ensuring simplicity and precision in operation.

Why Choose?

Our vehicle-mounted cranes are all sold and shipped directly from the factory, ensuring that customers can purchase cranes at the best price. We also have an excellent R&D and production team that can redesign and manufacture cranes according to customer needs.

The Spider Crane 5T have a variety of different specifications and models, which can be selected according to different lifting weights, working radius and operating requirements. In addition, it can also be customized according to special work needs, such as adding special spreaders, working platforms, etc., to adapt to more complex and diverse work scenes.

Technical Parameter:
