Maximum Lifting Capacity: 3 Ton
Maximum Working Radius: 11 m + 0.3 t
Maximum Lifting Height: 11.5 m

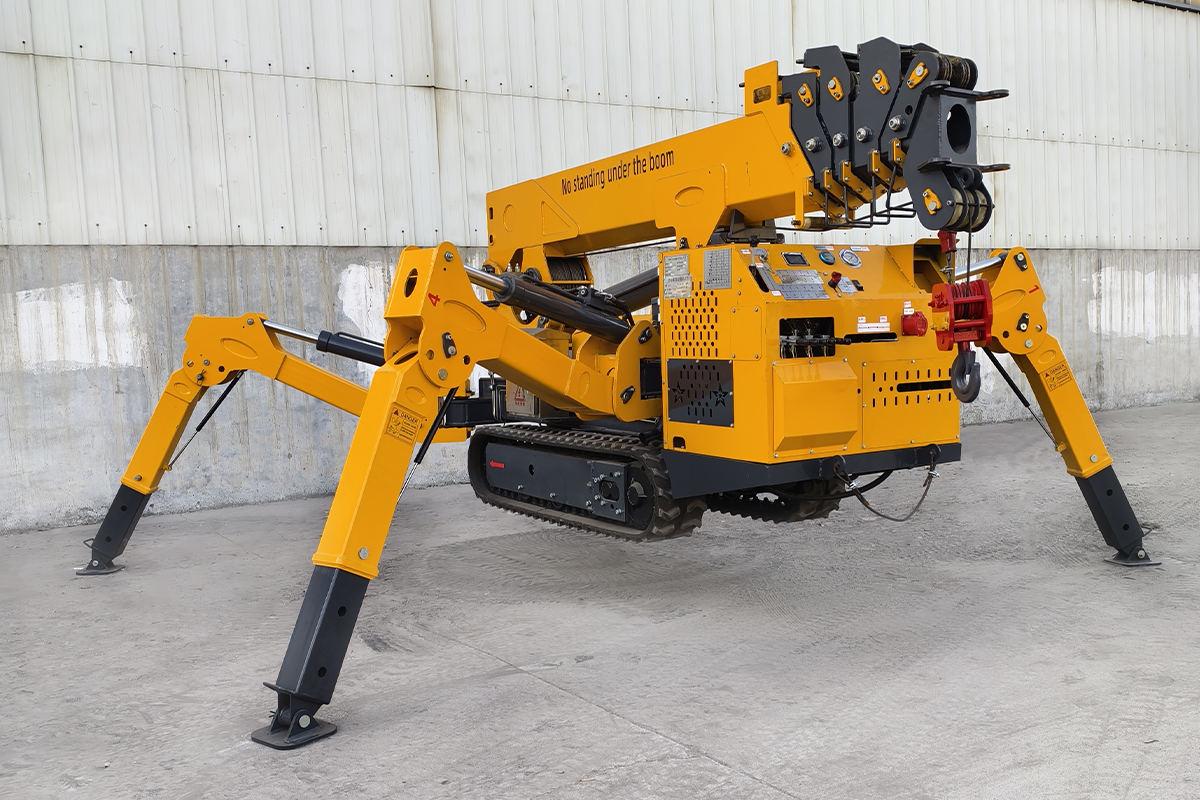

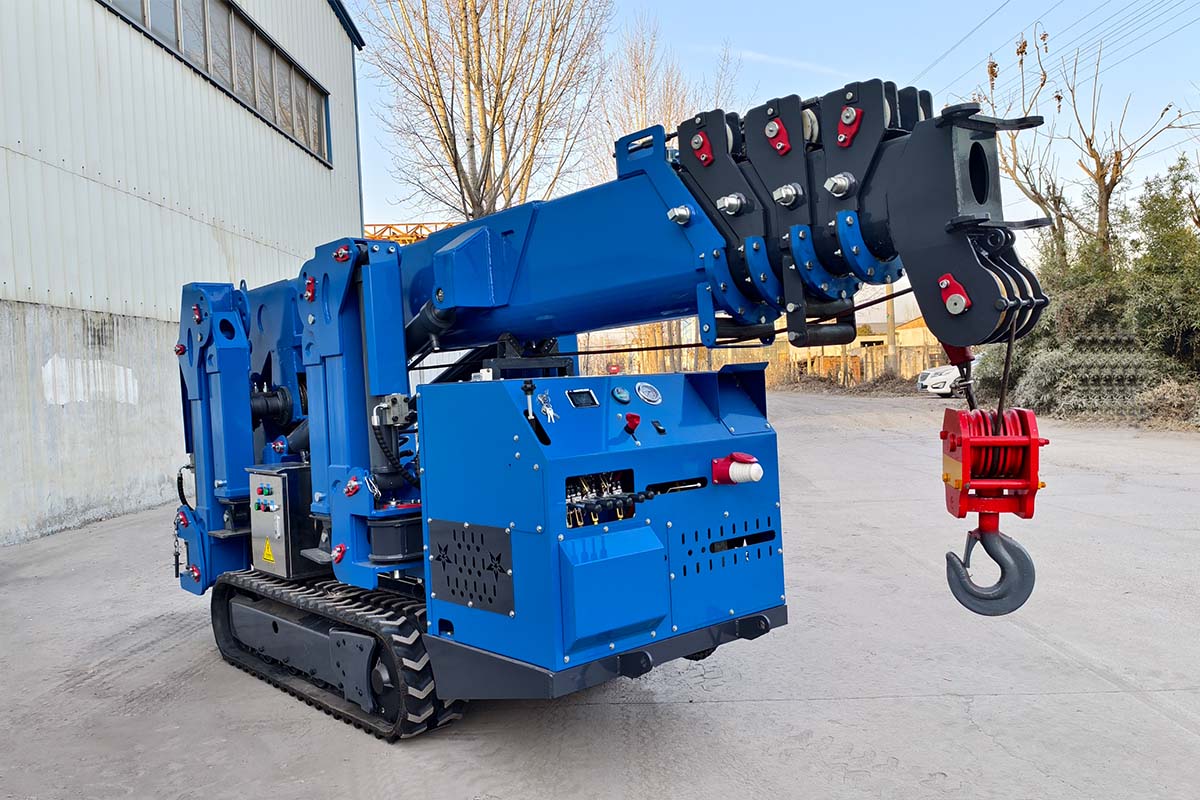

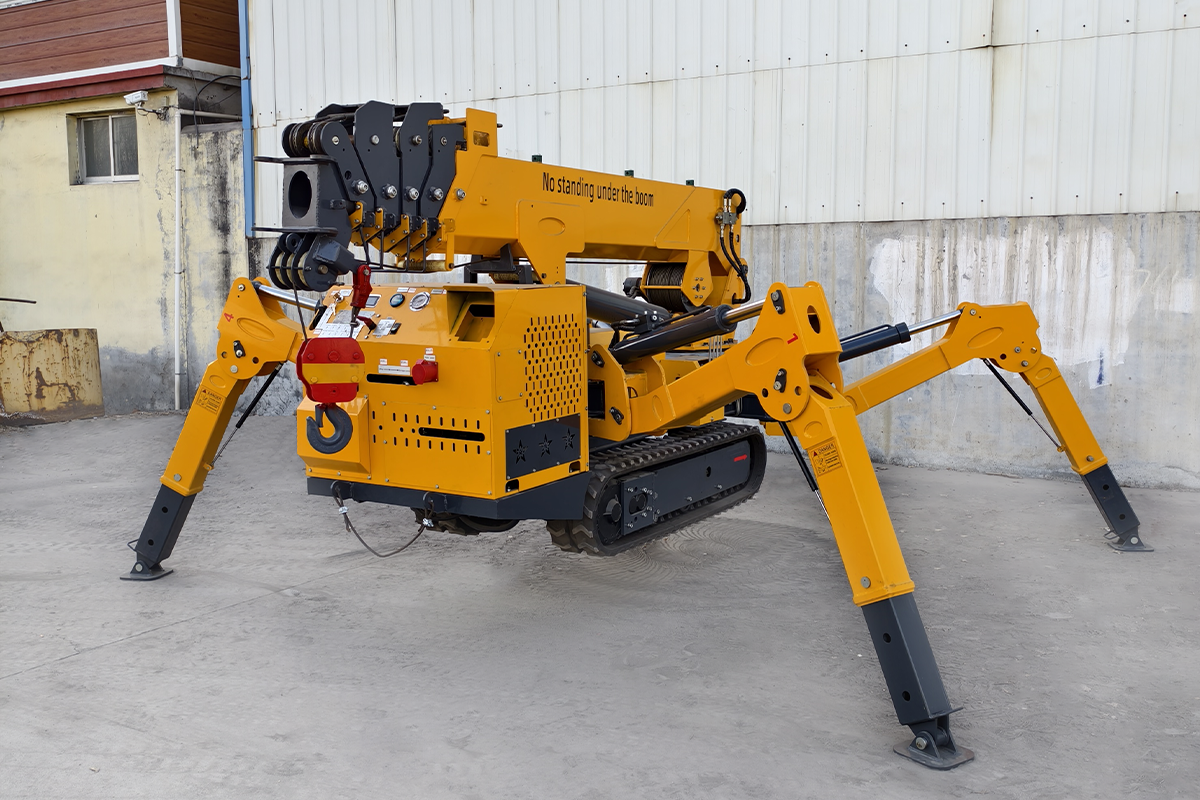

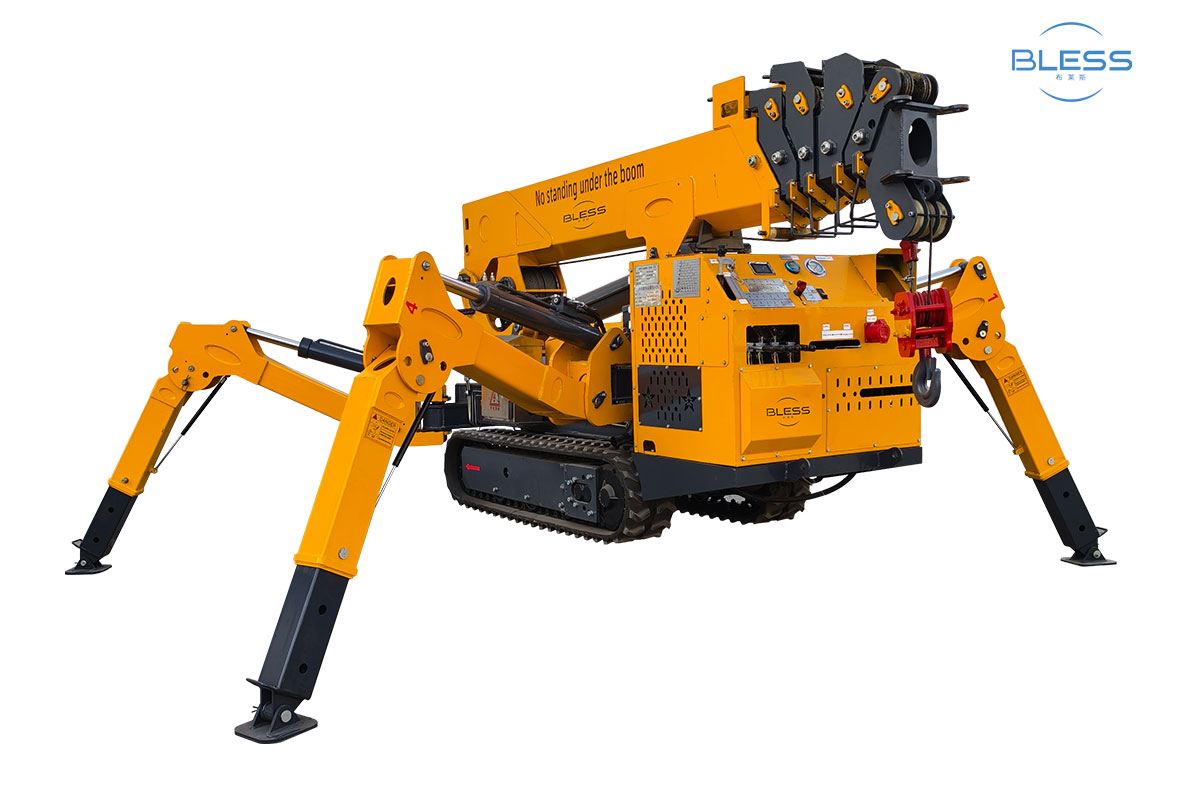

The Spider Crane 3T (Model: RICHYD3T-K5) is a compact and versatile crane designed for precise lifting in confined spaces. With a 3-ton lifting capacity, dual power sources, and a user-friendly manual operation system, this crane delivers outstanding performance for indoor and outdoor tasks.
The 3T Spider Crane is perfect for construction, logistics, maintenance, and heavy lifting in environments requiring compact and mobile equipment. Its dual power system (diesel and electric) ensures adaptability to various working conditions.
High Lifting Capacity:
Handles loads up to 3 tons, with a maximum lifting height of 11.5m and a working radius of 11m + 0.3t.

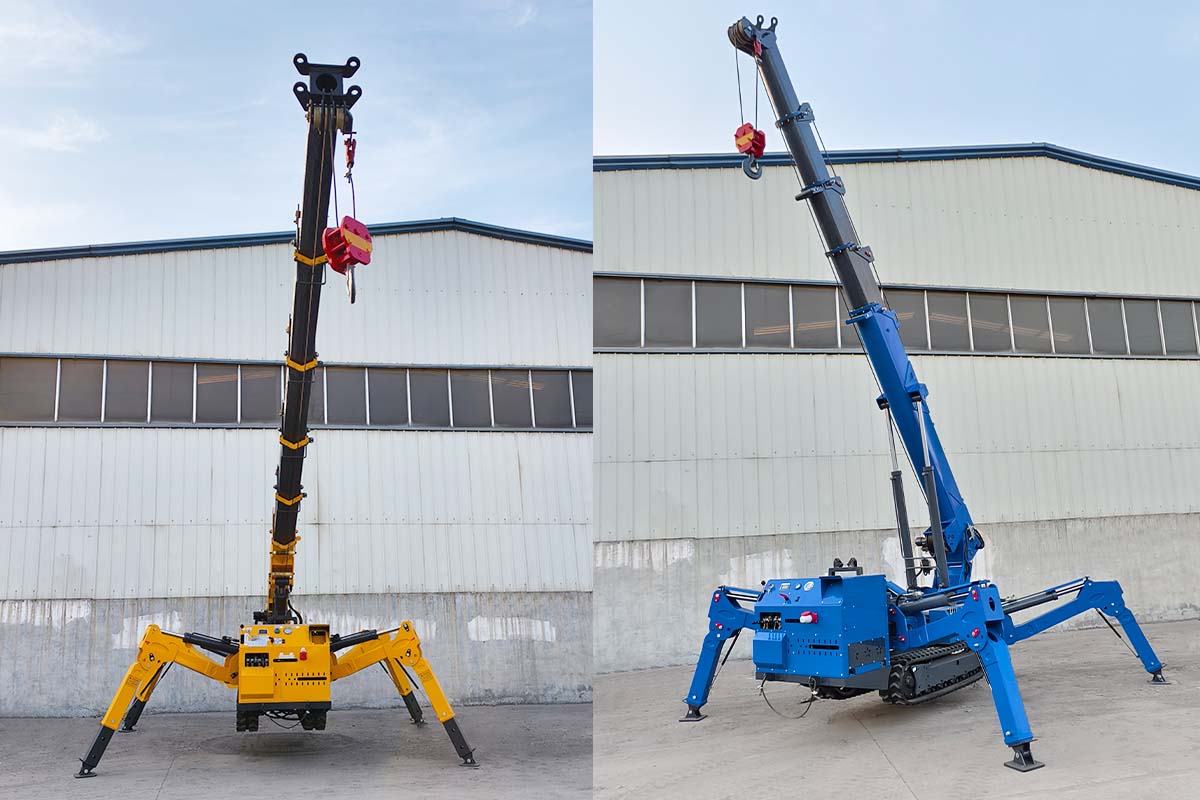

Boom System:
Equipped with a 5 or 6-section U-shaped structure, capable of precise lifting operations. The boom offers quick extension and rotation, achieving 0-80° in 13 seconds.
Efficient Winch System:
Includes a robust winch with 4 ropes, delivering lifting speeds of 0-8m/min, and a 12mm × 40m wire rope for reliability.

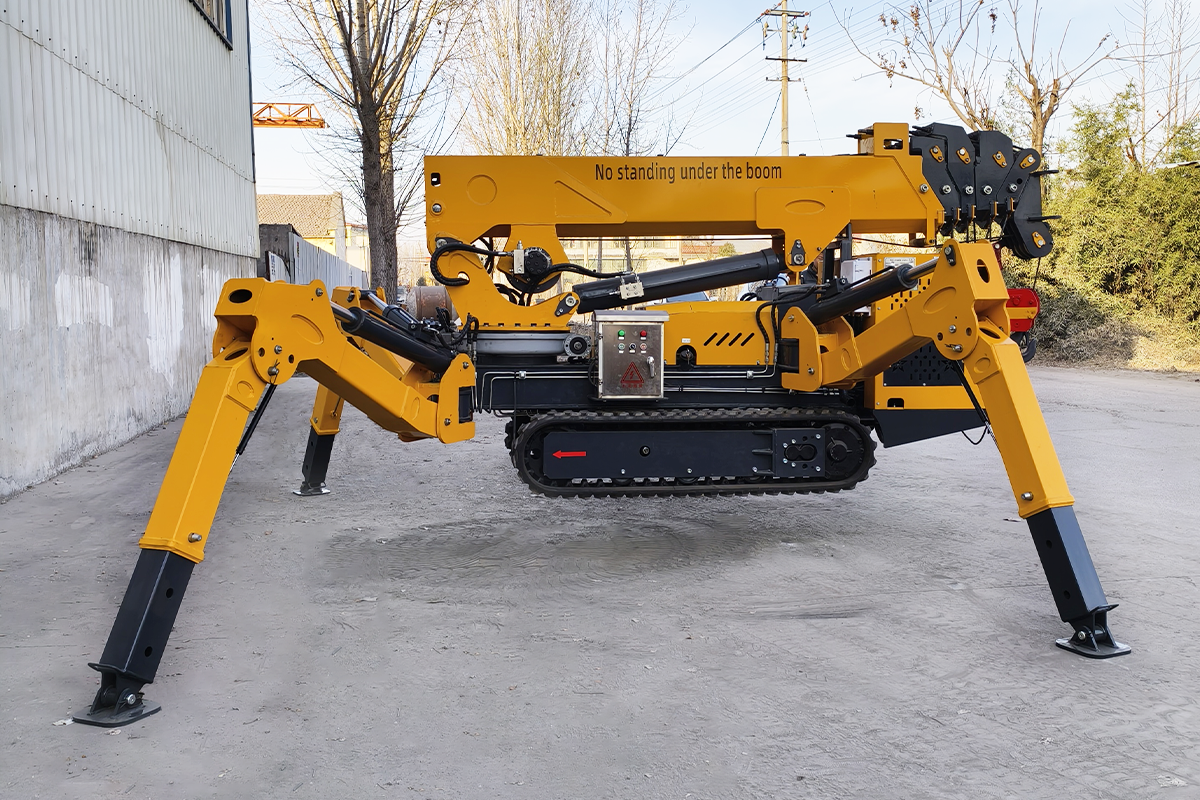

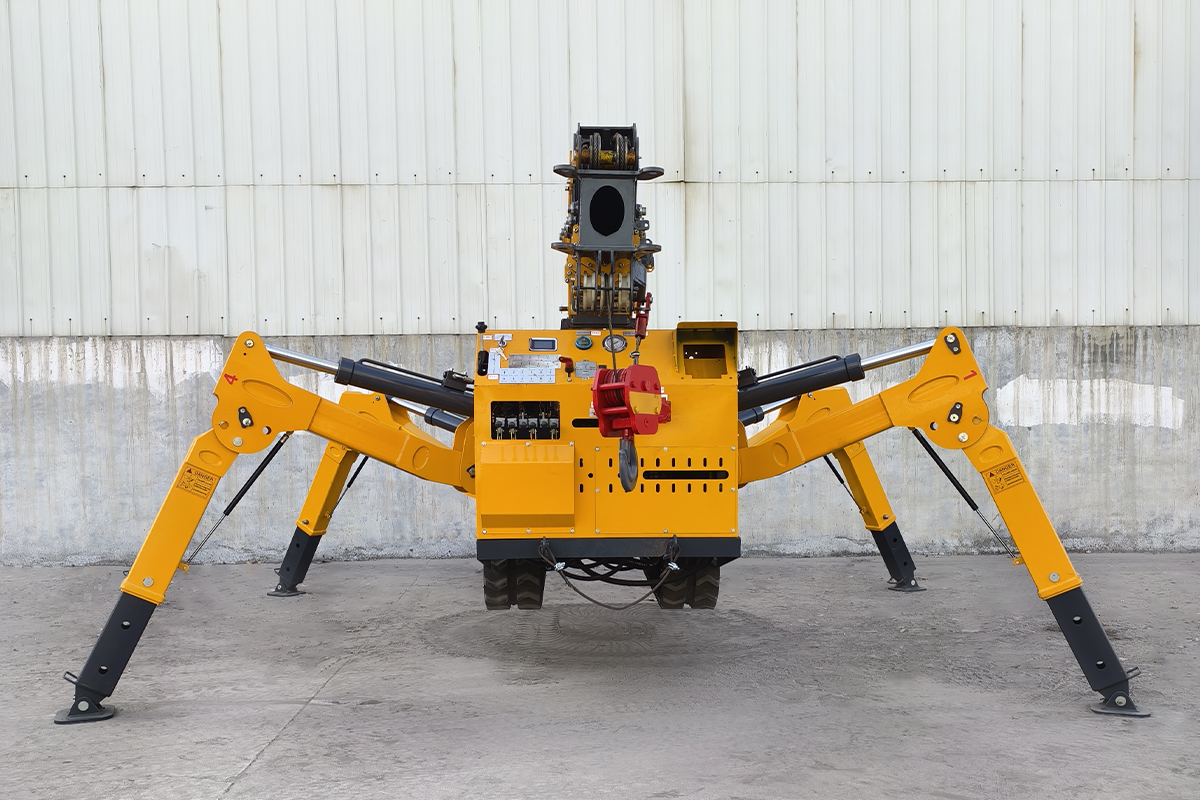

Stable Outrigger Design:
Features manual rotation and hydraulic automatic support with a 5100 × 3850mm extended reach, ensuring safety and stability on uneven terrains.
Dual Power System:
Powered by a diesel engine (2V80, 12kW) and a 380V electric motor, offering flexibility for both indoor and outdoor operations.
Mobility and Adaptability:
The crane uses hydraulic motor drive with two-speed travel and a maximum speed of 2.5km/h, as well as a climbing ability of 20° (36%), making it suitable for diverse terrains.
Eco-Friendly Engine:
The diesel engine complies with National Tier II emission standards, consuming 274g/kW-h and producing noise levels below 81.5dBA (1m).
Compact Design:
The crane's dimensions are 3100/3600mm × 980mm × 1700mm, allowing for easy transportation and operation in confined spaces.
User-Friendly Operation:
Offers manual control for both boom and outrigger systems, ensuring simplicity and precision in operation.
Compact and efficient for confined working environments.
Reliable lifting capacity with dual power adaptability.
User-friendly manual operation ensures precision and control.
The Spider Crane 3T is the ideal choice for professionals seeking a mobile, precise, and eco-friendly lifting solution.
| Spider Crane 3T | ||
|---|---|---|
| Model | RICHYD3T-K5 | |
| Capacity | 3 tons | |
| Maximum Working Radius | 11m + 0.3t | |
| Maximum Lifting Height | 11.5m | |
| Winch System | Hook Lifting Speed | 0-8m/min (4 ropes) |
| Wire Rope Specification | Mid 12mm x 40m | |
| Boom System | Boom Type | 5-section / 6-section U-shape structure |
| Boom Height / Time | 3.1m-10m / 20 seconds | |
| Boom Angle / Time | 0-80°/13sec | |
| Rotation Angle / Speed | 0-360° (Continuous) / 60 seconds | |
| Outriggers | Action Type | Manual rotation + hydraulic automatic support (2-section legs) |
| Max Extended Reach (mm) | 5100 x 3850 | |
| Travel System | Travel Mode | Hydraulic motor drive, two-speed |
| Travel Speed | 0-2.5km/h | |
| Climbing Ability | 20° (36%) | |
| Motor Voltage | 380V | |
| Engine | Manufacturer | Youpu |
| Model / Power | 2V80 / 12kw | |
| Starting Method | Electric start | |
| Start Performance | -5°C~40°C | |
| Fuel / Capacity | Diesel / 8L | |
| Battery Capacity | 12V 45AH | |
| Fuel Consumption Rate | 274g/kw-h | |
| Noise Level | Rated Speed ≤81.5dBA (1m) | |
| Emission Standard | National Tier II | |
| Operation System | Operation Types | Manual boom / outrigger control, manual travel |
| Operation Features | Manual operation | |
| Standard Configuration | Diesel engine and electric motor (dual power) | |
| Vehicle Dimensions | 3100/3600mm x 980mm x 1700mm | |
| Weight | 2.8T | |
