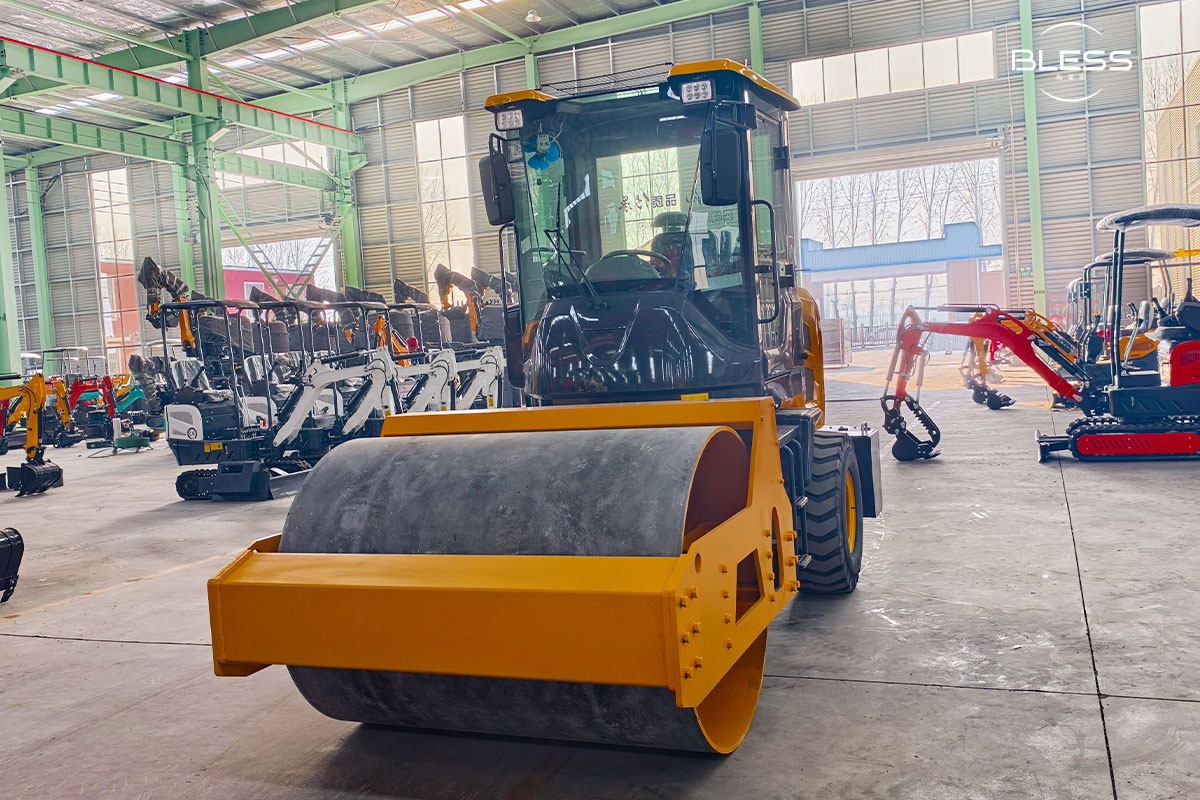

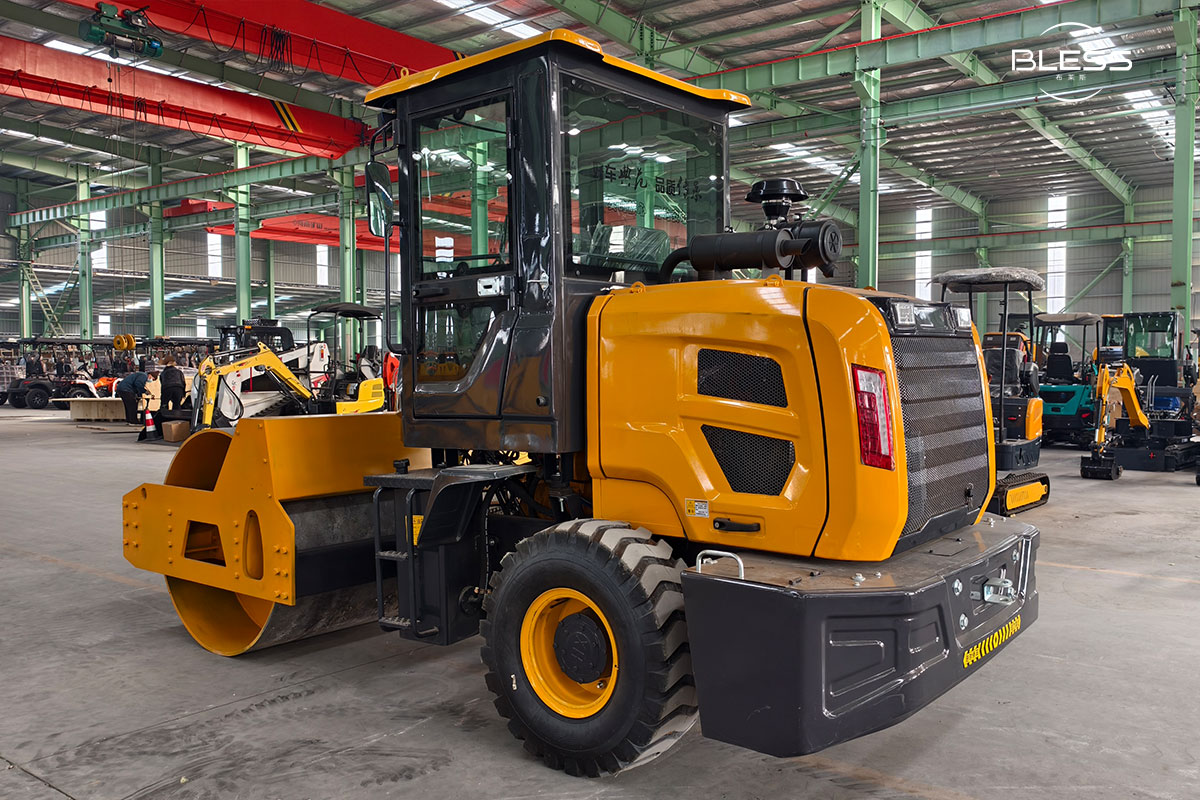

RICHYD-1500f oad rollers

Characteristic

Strong compaction capacity 8 tons of self-weight plus strong vibration force, can effectively compact all kinds of road materials,

can make the road surface to achieve a high degree of compactness and smoothness,

 and extend the service life of the road.

Easy and flexible operation usually adopts hydraulic steering, stepless speed change and other technologies, and the operator lever is simple to control,

so the driver can easily control the driving direction and speed of the roller. The articulated frame design makes the turning radius small and the maneuverability flexible,

which is convenient for the operation in narrow space or curved road.

Wide range of application It can be used for construction and maintenance of many types of roads, including highways, city roads, country roads, etc.It can also be applied to different road surface materials, such as asphalt concrete, gravel mix, dry hard cement concrete, etc.

Better comfort

Some high-end models are equipped with air-conditioned cabs, swivel seats and other facilities,

which can provide operators with a more comfortable working environment and reduce work fatigue.

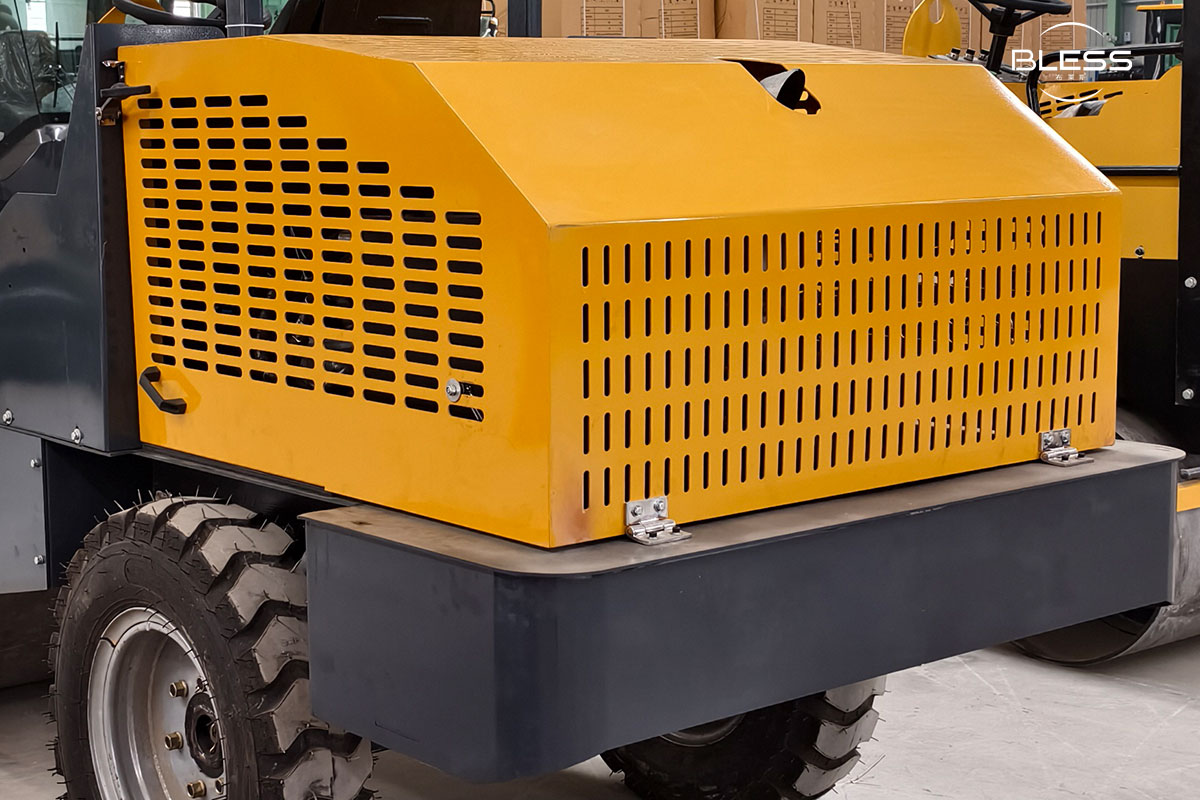

Convenient maintenance: some 8-ton rollers are designed with inverted or reversible engines, gearboxes and other major parts,

and the hoods are opened at a large angle, which is convenient for maintenance personnel to carry out inspections, repairs and maintenance work.

Hydraulic System

The hydraulic system generally adopts high-quality variable piston pumps and motors, such as Danfoss and other brands, which have high transmission efficiency, smooth and reliable operation, and can accurately control the travel and vibration of the roller.

The vibration system has mature vibration technology, partly originated from Germany and other advanced technologies, which can provide stable high-frequency and large-amplitude vibration to enhance the compaction effect, with low failure rate and low maintenance cost.

Braking system

some 8-ton rollers are equipped with caliper disc brake, adopting air-propelled oil-assisted braking mode,

with fast braking speed and good effect, compared with the drum brake, it can better guarantee the safe operation of the roller in the working conditions such as ramps and so on.

Sprinkler system: Equipped with large-capacity water tanks, such as the two large water tanks of Lutong LTC208 with a volume of 450L respectively,

he pressure pump electronically-controlled water spraying system can realize uniform atomized sprinkling to keep the roller wheels wet,

prevent asphalt and other materials from adhering to ensure the quality of compaction.
