Boom Configuration: 3 m with 3 sections
Working Height: 9.5 m
Working Radius: 7.6 m
Our vehicle-mounted cranes are all sold and shipped directly from the factory, ensuring that customers can purchase cranes at the best price. We also have an excellent R&D and production team that can redesign and manufacture cranes according to customer needs.
Advantage
For some small and medium-sized enterprises or individual operators, the cost of purchasing a truck-mounted crane is much lower than that of purchasing a professional crane and a transport vehicle separately. It combines the functions of two types of equipment in one, reducing the number of equipment purchased and maintenance costs, as well as the training costs of operators, and has a high cost-effectiveness.
High lifting capacity: The lifting capacity is up to 3200kg, and the maximum lifting torque is up to 80KNN·M, which can meet most project requirements.

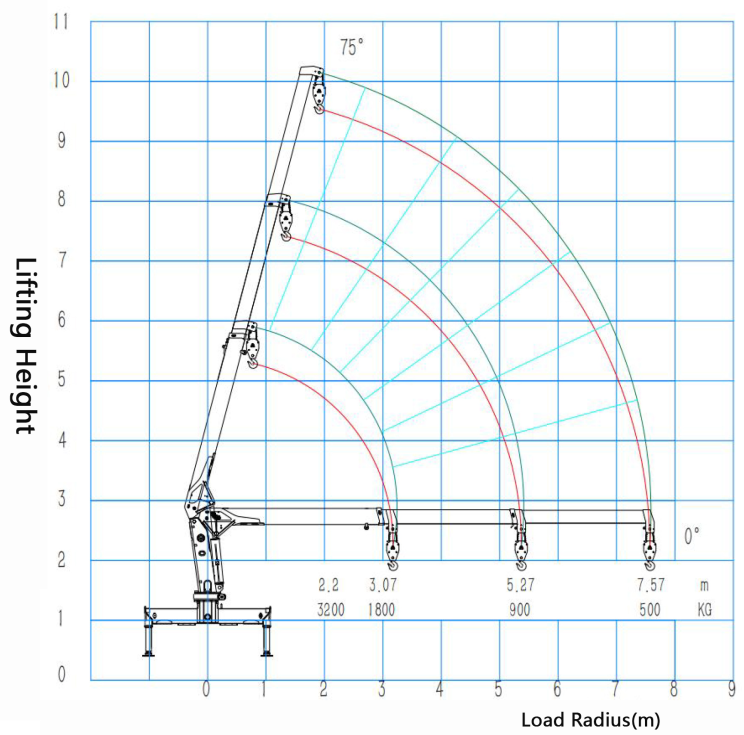

Flexible operation: It can rotate 360° freely, with a working radius of 3.2~7.6m and a lifting height of up to 9.5m.

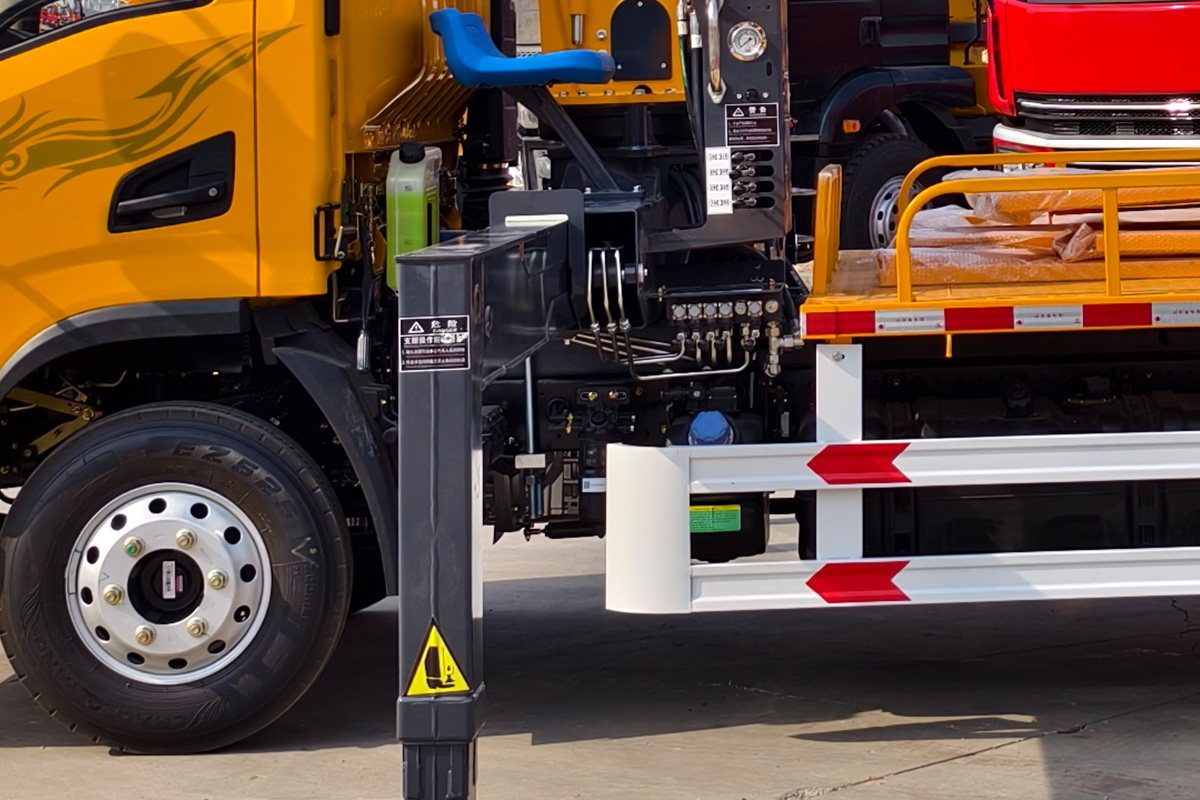

Enhanced stability: It includes four outriggers for stable operation on various terrains.
Safety features: Equipped with air brake system and high-strength materials, it is safe and reliable to use.
The RICHYD-SC3.2T Truck Mounted Cranes have a variety of different specifications and models, which can be selected according to different lifting weights, working radius and operating requirements. Whether it is a small light truck crane or a large heavy truck crane, it can meet the requirements of various lifting operations of different sizes. In addition, it can also be customized according to special work needs, such as adding special spreaders, working platforms, etc., to adapt to more complex and diverse work scenes.
| 3.2 Ton Truck Crane Configuration Parameters | |||
|---|---|---|---|
| Maximum lifting capacity | 3200kg | Boom sections | 3 sections |
| Boom length range | 3.2~7.6m | Maximum working radius | 7.6m |
| Boom shape | Hexagonal arm | Maximum lifting height | 9.5m |
| Maximum lifting moment | 80KN·M | Luffing Angle | 0~76° |
| Rotation angle | 360° | Rotation speed | 3r/min |
| Rotating structur | Integrated turntable | Front outrigger width/span | 2m/3.7m |
| Rear outrigger width/span | Optional (single/double chamber legs) | Gear Pumps | Single Pump |
| How to operate | Next operation | ||
