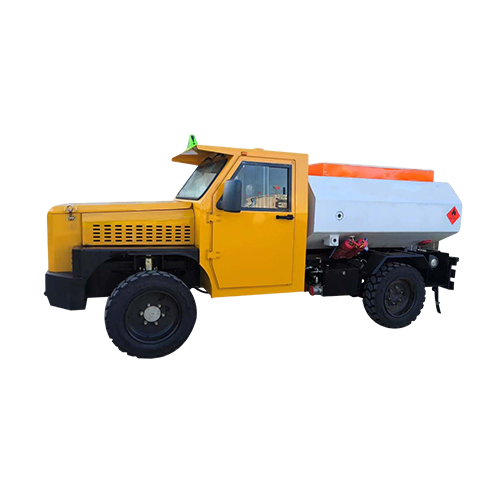

Overall Dimension(LXWXH)(MM): (5685+200)x(1950+100)x(2270±100)
Maximum load capacity(KG): 3000
Maximum speed: 25km/h
Minimum turning radius ≤5m
Large-capacity oil tank (2~10m³ optional)
Climbing capacity ≥25
Power: 129KW Yunnei engine, 4WD, ≥25KN traction
Size: 4950×1950×2250mm, 850KG max load
Safety: Mining anti-scratch tires, wet hydraulic brakes
Maximum Lifting Capacity: 12 Ton
Maximum Working Radius: 25 m × 0.5 Ton
Maximum Lifting Height: 25 m
Maximum Lifting Capacity: 10 Ton
Maximum Working Radius: 17.5 m × 0.5 Ton
Maximum Lifting Height: 19.6 m
Maximum working range: 17.5m
Crane deadweight: 10000kg
Rear outrigger span: 3120mm

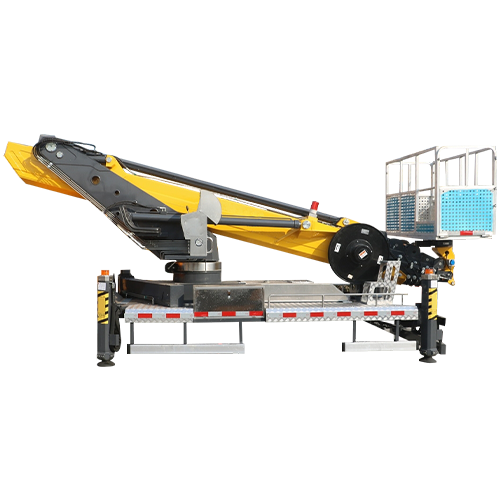

Maximum working height：137.7m/19.7m/21.8m/26.8m
Maximum platform height：15.7m/17.7m/19.8m/24.8m
Standard load：230kg
Maximum working height：13.6m/13.8m/15.8m/16.7m
Maximum platform height：11.6m/11.8m/13.8m/14.7m
Standard load：215kg/230kg
Maximum working height：14m/16m
Maximum platform height：12m/14m
Machine weight：3700kg/4000kg
Maximum working height：20m/22m
Maximum platform height：18m/20m
Diesel engine power：15HP
Maximum working height：16m/18m
Maximum platform height：14m/16m
Diesel engine power：12HP
Maximum working height：10m/12m/14m
Maximum platform height：8m/10m/12m
Diesel engine power：10HP
Maximum working height：9.8m/11.8m/13.8m/15.8m
Maximum platform height：7.8m/9.8m/11.8m/13.8m
Safe working load：227kg/230kg/320kg/450kg
Maximum working height：7.8m
Maximum platform height：5.8m
Safe working load：230kg/380kg/550kg
Maximum working height：4.8m/5.8m/6.35m
Maximum platform height：2.8m/3.8m/4.35m
Safe working load：230kg/240kg
Motor power: 30kW
Packing size: about 2-3 meters in length, 1-1.5 meters in width and 1-1.2 meters in height.
Cylinder inner diameter: 200mm
Maximum lifting capacity 12 tons
Maximum working radius 18 meters
Slewing angle 360°full slewing
